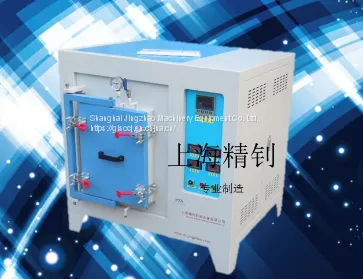

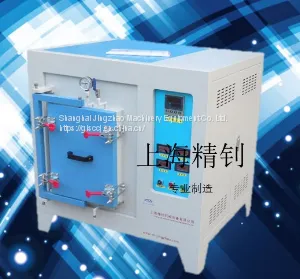

Box Type Atmosphere Furnace

Chamber type atmosphere furnace

Features of this series:

This series product, the rated temperature 1100 ℃ respectively, 1400 ℃, 1600 ℃, 1700 ℃, using different heating element, models complete, safe and reliable, and at the same time also can meet different process in the experiment, and the special manufacture, suitable for electronic ceramics with high temperature structure ceramic sintering, the precision of annealing and microcrystalline glass, crystal precision annealing, preparation of ceramic glaze, powder metallurgy, the sintering of nanomaterials, metal parts quenching heat treatment and everything should be fast heating-up process requirement, is a scientific research units, universities and colleges, industrial mining enterprises ideal experiments and production equipment

Qljz-12-1200 series box-type atmosphere furnace

1. The furnace body adopts double-layer furnace shell structure, and the fan is installed between the double-layer furnace shells, which can rapidly rise and drop temperature, and the surface temperature of the furnace shell is low.

2. The furnace door and top are sealed with high temperature silicon rubber, and the furnace door is equipped with water cooling system. There are air inlet, air outlet and vacuum outlet on the furnace body.

3. The furnace material is made of imported alumina polycrystalline fiber by vacuum adsorption, saving 50% energy, and the heating temperature field on the second side is uniform. The heating element is made of contel resistance wire.

4. The electric furnace temperature control system adopts artificial intelligence adjustment technology, with PID adjustment, fuzzy control, self-tuning ability and various heating programs. The temperature display precision of the control system is 1℃, the temperature field stability is ±5℃, and the heating rate can be arbitrarily set from 1℃ to 20℃.

5. Can pass hydrogen, argon, nitrogen and other gases, and can pre-vacuum, vacuum degree can reach 20kPa, atmosphere pressure can reach 0.1mpa, the furnace body is made of thick steel plate processing, safe and reliable, in line with national standards.

Model and specification of QLJZ1200 series box-type atmosphere furnace

Project unit JQF1100 series box type atmosphere furnace

QLJZ QLJZ QLJZ - 4-1200-9-1200-18-1200

Rated heating power KW 4 9 18

Voltage/frequency V/Hz 220V/ 50-60hz 220V/ 50-60hz 380V/ 50-60hz

Studio size mm 300*200*200 400*300*300 500*400*400

(depth * width * height)

The highest temperature is 1100℃

Operating temperature 1000℃

The heating rate of empty furnace min ≤20℃/min

Temperature uniformity ℃ ≤±5℃

Heating element resistance wire (contel)

Temperature controlled fluctuation degree ℃ ±1℃
