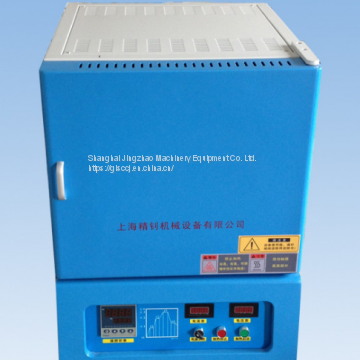

High temperature furnace

Intelligent program temperature control SX2 series high temperature furnace sx2-8-16, zui high temperature 1600℃, the usual temperature 1500℃, tank size 300*150*120, unit mm. 30 stage temperature control. Free to set the temperature, temperature, insulation curve. Intelligent temperature control program SX2 series high temperature furnace SX2-8-16 specific configuration is as follows:

Technical specification of serial number type equipment

The furnace chamber size is 300*150*120

2. Chamber capacity: 5.4l

Operating temperature ≤1600℃

4 the heating rate is recommended to be 10℃/min

5 heating element high quality silicon-molybdenum rod

Furnace material imported alumina fiber insulation refractory

The temperature control precision is ±1℃

Furnace door structure side open type

9 control mode Japanese conductive temperature controller or touch screen control, intelligent fuzzy PID control. Multi - stage heating procedure can be programmed.

10. The ultimate temperature is 1600℃

Heating temperature zone single temperature zone

15 curves can be stored in 12 temperature curve Settings, and each curve can be set to 30 time-temperature curves

Interchanging interface in English and Chinese. True color touch input.

Temperature curve records real-time monitoring, dynamic real display of time - temperature curve

15 temperature measuring element b-type double platinum-rhodium thermocouple

Protection device overtemperature alarm, overcurrent protection, broken couple prompt

Electrical specifications: 380V/50HZ,8KW

18? Outline size 870*660*875mm

19. The random product is equipped with a set of heating plate, a pair of heat resistant protective gloves for crucible tongs, and one instruction

Warranty warranty for one year, lifetime maintenance, accessories charges factory fees.

Our factory provides installation training for high temperature molybdenum bar furnace, and the customer does not need to pay any additional fees.
