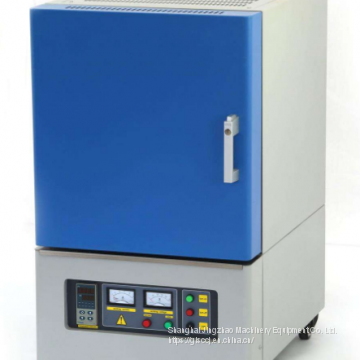

JZ1200-80 high temperature furnace

The high temperature furnace takes the resistance wire as the heating element. Temperature control system surface plate operation, PID temperature control method, thyristor control, can be set 30 programming temperature, heat preservation, temperature (achieve full automation); The furnace chamber adopts 1400 high-purity alumina polycrystalline fiber materials formed by vacuum adsorption with Japanese technology, which will not break or collapse in long-term use. The furnace body is a double layer furnace shell with air cooling system. The furnace shell is made of thickened cold-rolled steel plate welded by folding. The surface is treated with rust-resistant high-temperature baking paint. Safe and reliable, energy-saving and environmental protection, high degree of automation, the indicators reached the international advanced level.

Product features:

1. The furnace adopts the aluminum oxide polycrystalline inorganic material adsorbed by Japanese energy-saving technology, which has good thermal insulation performance, durability, high tensile strength and high purity. The inner surface of the furnace is coated with imported high temperature resistant thermal insulation coating, which can improve the reflectance and heating efficiency of the furnace, and extend the service life of the furnace;

2. The double-layer shell with standard electrostatic spraying is equipped with intelligent air cooling system driven by air insulation technology and induction technology, and the surface temperature of the shell is low;

3. The resistance wire distributes convection heating on all sides of the furnace, with high uniformity of furnace temperature;

4. Button machine adopts international brand, and the number of use is not less than 200,000;

5. Over temperature alarm protection function, over temperature, deviation alarm and automatically cut off the heating power supply, with leakage, overcurrent, overpressure protection, safe and reliable operation;

Technical parameters:

1. Product name: high temperature furnace

2. Product model jz1200-80

3. Working size: depth: 800* width: 600* height: 500mm

4. The external size is about 1200*1000*1200

5. The volume is 240L

6. Rated power: 39KW

7. Operating voltage: 380V, 50HZ/60HZ

8. High temperature: 1200℃

9. Long-term service temperature ≤1100℃

10. The accuracy of constant temperature is ±1℃

11. Furnace temperature uniformity ≤±7℃

12. Furnace material 1400 alumina polycrystalline fiber material

13. Thermocouple model K

14. The temperature control mode adopts PID control mode, and the 30-break temperature control program can be programmed step by step

15. The heating rate is 30℃/min faster than 20℃/min

16. Manual side door opening

17. Packing in wooden cases (not recycled)

18. Standard configuration: 1 main machine, 1 set of high temperature gloves, one pair of crucible tongs, one copy of operation manual, certificate of qualification and warranty card
