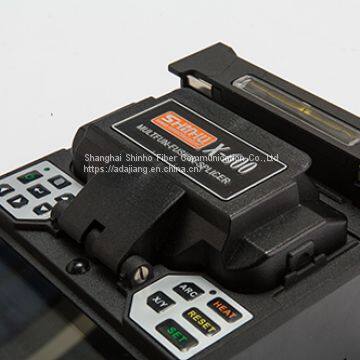

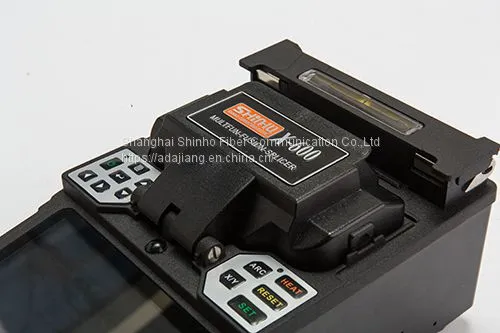

Handheld FTTH Fiber Fusion Splicer X600
US$ 800 - 900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHINHO
Place of Origin:
China
Model Number:
X-600
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
3 days
Related Products
-
Auto-Rotate Blade High Precision Automatic Fiber Cleaver Fiber Cutter X-55bUS$ 120 - 150MOQ: 1 Piece -
High Precision Optical Fiber Cleaver Quick Cutting Fiber Cleaver SHINHO X50BUS$ 65 - 70MOQ: 1 Piece
-
Ergonomic Kevlar Scissor Fiber Optic Cable Stripper Kevlar CutterUS$ 5 - 10MOQ: 1 Piece
-
Fiber Cutting Machine Optical Fiber Cleaver Cable Cutter SHINHO X-50US$ 60 - 65MOQ: 1 Piece
-
X-50c High Precision Semiautomatic Fiber CleaverUS$ 40 - 45MOQ: 1 Piece
Brand Name
SHINHO
Place of Origin
China
Model Number
X-600
X-600 Fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently.
Features
1s boot up, 7s splicing, 20s heating
Specially designed for FTTH projects

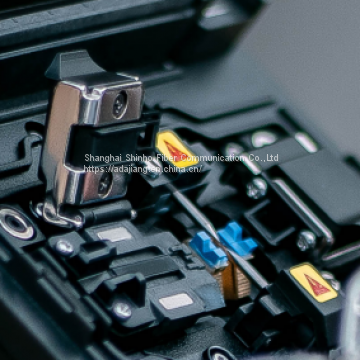

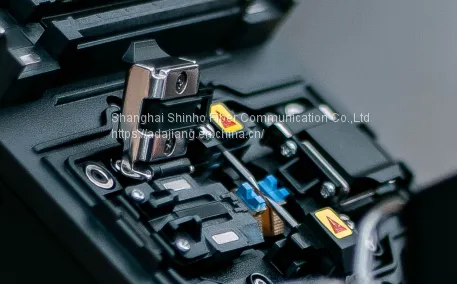

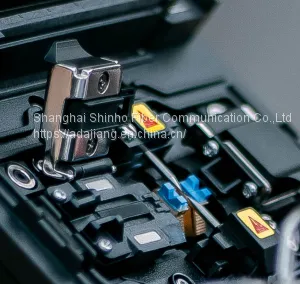

4 motors active V-groove design

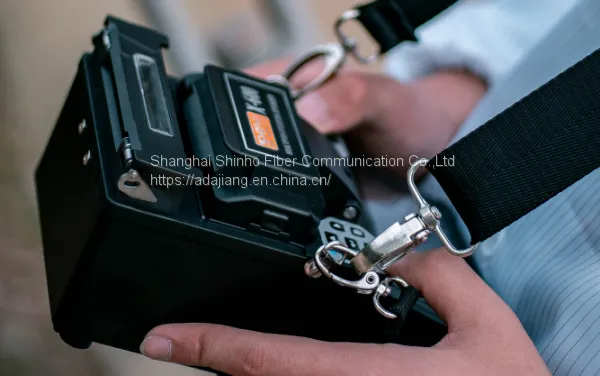

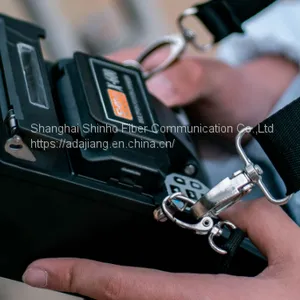

Small size and light weight, easy to carry
Specifications
|
Applicable fiber |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)，EDFA, others(including G.657) |
Diameter of cladding |
80 -150μm |
Diameter of coating |
160-900μm |
| Typical splice loss | SM: 0.03dB, MM: 0.02dB, DS: 0.05dB, NZDS: 0.05dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 7 seconds |
| Typical heating time | 20 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X (X or Y view), 125X (X and Y view) |
| Display screen | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Records storage | 5000 groups data and 100 group images |
| Loss evaluation | Available |
| Tension test | ＞2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating, pluggable inner Li-battery |
| Power supply | Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V |
| Electrodes life | More than 5000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for uploading splicer results and upgrading software |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -25℃~+50℃, Storage Temperature: -40℃~+80℃,Wind speed: Max 15m/s |
| Dimension | 200mm(L) * 123mm(W) * 95mm(H) |
| Weight | 1.60kg (including battery) |
Standard Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
