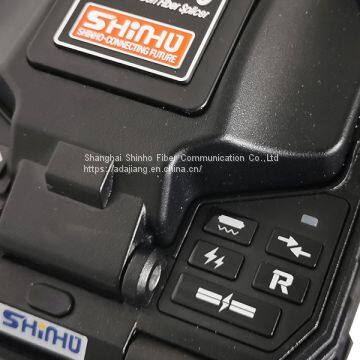

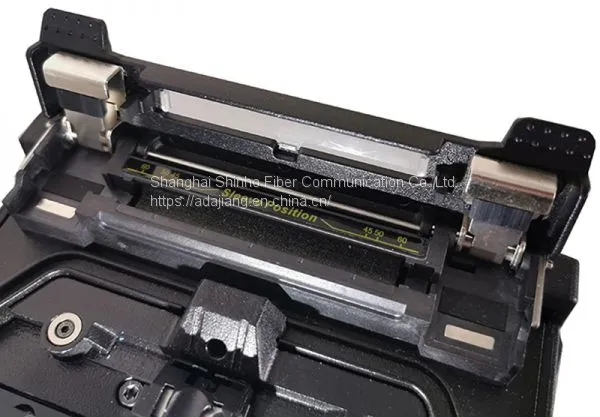

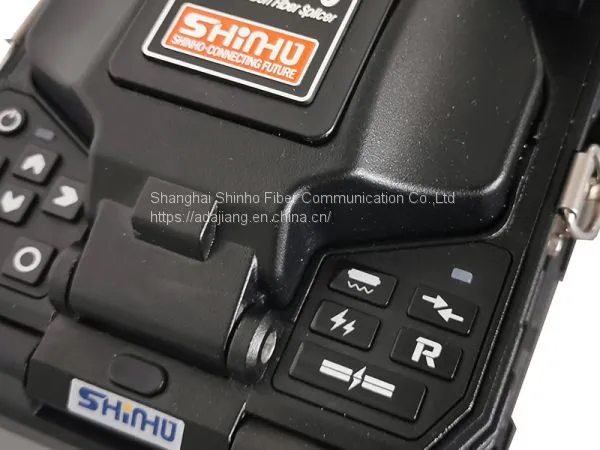

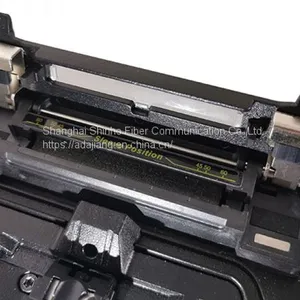

Help CenterLarge Diameter Fiber Specialty Fiber Fusion Splicer S27
Related Products
-
Core To Core Alignment Fiber Fusion Splicer X900US$ 1500 - 1800MOQ: 1 Piece -
Robust Multi Function ARC Fusion Splicer S16US$ 1200 - 1400MOQ: 1 Piece
-
Handheld FTTx Fiber Fusion Splicer X500US$ 800 - 900MOQ: 1 Piece
-
Handheld FTTH Fiber Fusion Splicer X600US$ 800 - 900MOQ: 1 Piece
-
Auto-Rotate Blade High Precision Automatic Fiber Cleaver Fiber Cutter X-55bUS$ 120 - 150MOQ: 1 Piece
S-27 LDF specialty fusion splicer is a new model with innovative technologies to reach the special splicing needs of factory, manufacturing, laboratory and R&D applications. Users can splice the large diameter fibers (125~600um) with S-27 Specialty Fiber Fusion Splicer.
Features
※ Applicable to cladding diameter 125~600μm fiber
※ Accurate alignment, world standard fusion loss
※ 14s splicing time, 24s heating time for 40/60mm tube
※ Applicable to different types fibers (SM/MM/DS/NZDS)
※ Ruggedized body, waterproof, anti-dust, anti-shock
※ Pluggable Li-battery, support separate charging
※ Easy to maintenance, easy to replace the electrodes
※ USB port for software upgrading, records exporting
※ Support 4000/100 groups fusion records/fusion images
※ Comply with CE/Rohs international standard
Specifications
Alignment method |
Clad to clad |
Applicable fiber |
SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655) |
Cladding diameter |
125～600µm |
Coating diameter |
250～1000µm |
Typical splice loss |
SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB |
Return loss |
＞60dB |
Splicing program |
40 groups |
Operation mode |
Manual/ Automatic |
Auto- heating |
Available |
Typical splice time |
14seconds |
Typical heating time |
24 seconds for60mm/40mm heating tube |
Fiber magnification |
X orY single fiber image120X，X andY double image 60X |
Viewing display |
Dualhighsensitivitycamera,5 inch 800*480 LCD Monitor |
Data storage |
4000 groups data records and 100 group images |
Loss evaluation |
Available |
Tension test |
1.8～2.2N |
Interface |
GUI menu interface, easy for operation |
Battery capacity |
5200mAh Li-battery,120 cycles splicing and heating |
Power supply |
Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
Electrode life |
＞3000 times discharge (125um)，＞1000 times discharge (＞125um) |
Terminals |
Micro-USB 2.0 port, forsoftwareupgrading, records exporting |
Operating condition |
Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s |
Dimension/Weight |
155mm (L)×144mm (W)×155mm (H) /2.3kg (incuding battery) |

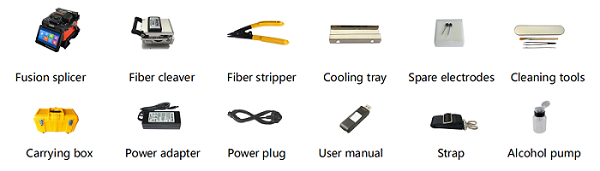

Standard Accessories
