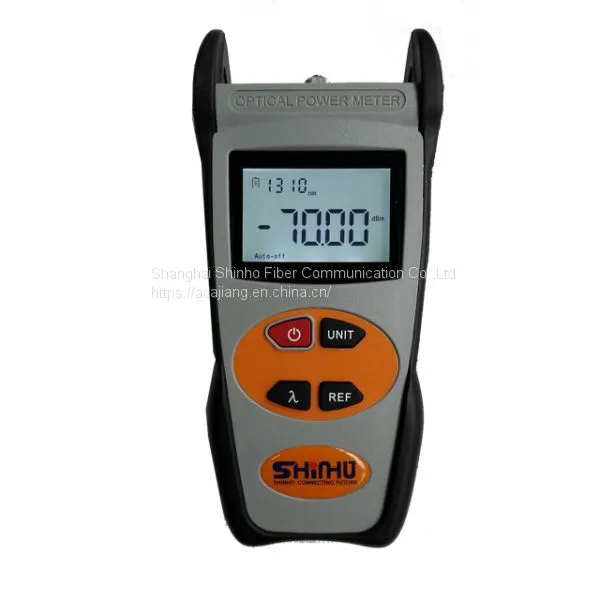

Optical Power Meter X-5001
Optical power meter X-5001 is designed to meet the high demand. It intergrades the handheld optical power meter and the intelligent optical power meter in one unit. It can be used for the absolute power measurement and relative measurement of the link loss in dB. Its compact size, friendly operation interface, broad power measurement range, high precision and brand-new user automatic calibration function and high performance in application makes it an ideal tool for optical fiber network.
Features
Reference power level storage (Ref Setting)
Power measurements in dBm or mw and insertion loss in dB;
10 minutes Auto-off function can be activated or deactivated.
Low battery consumption, more than 240 hours continual operation time;
Comfortable LCD display and optional backlight LCD display supports night operation;
Applications: Maintenance in Telecom/ Maintenance in CATV/ Fiber Optic Lab Testing/ Other Fiber Optic Measurements
Specifications
| Wavelength(nm) | 800~1700nm |
| Detector | InGaAs |
| Measurement Range (dBm) | -70~+6/-50~+26 |
| Uncertainty | ±5% |
| Calibrated Wavelength(nm) | 850,1300, 1310,1490, 1550, 1610,1625 |
| Resolution(dB) | 0.01 |
| Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) |
| Battery Operating Time | 240 h with 1.5V Battery(3) |
| Operating Temperature(ºC) | -10 ~ +60 |
| Storage Temperature(ºC) | -25 ~ +70 |
| Relative Humidity | 0 to 95% (non-condensing) |
| Dimension(mm) | 200 X90 X50 |
| Weight(g) | 285 |
Standard Accessories
| NO. | ITEM |
| 1 | Power meter |
| 2 | Manual |
| 3 | Protective Holster |
| 4 | 1.5V AA battery *3 pcs |
| 5 | Cotton swabs |
Within 3 working days for small orders after receiving full payment
Kindly consult us for bulk orders
Shipment
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders.
By sea or by aircargo for bulk orders.
After-sales Service
We guarantee all our fusion splicers for 2 years from the date customers receive them. Other parts for six months.
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.
Lifelong Maintenance Service
During the warranty period, we can repair or replace the defective parts for free.
After the warranty time, we can also repair the defective parts, but only charge for parts.
