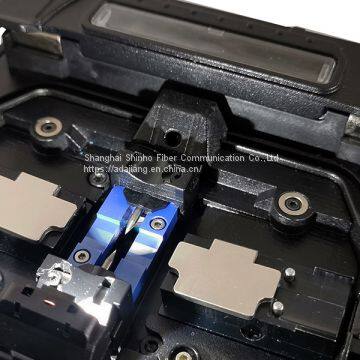

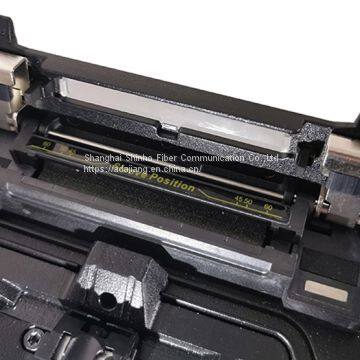

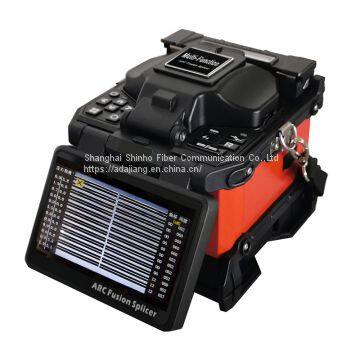

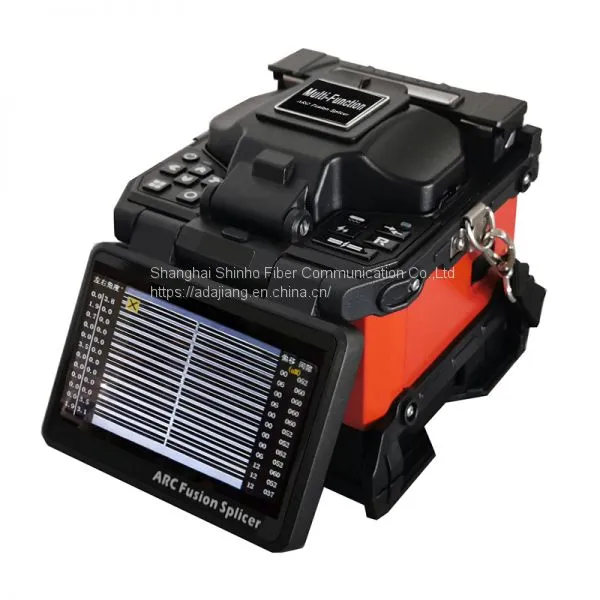

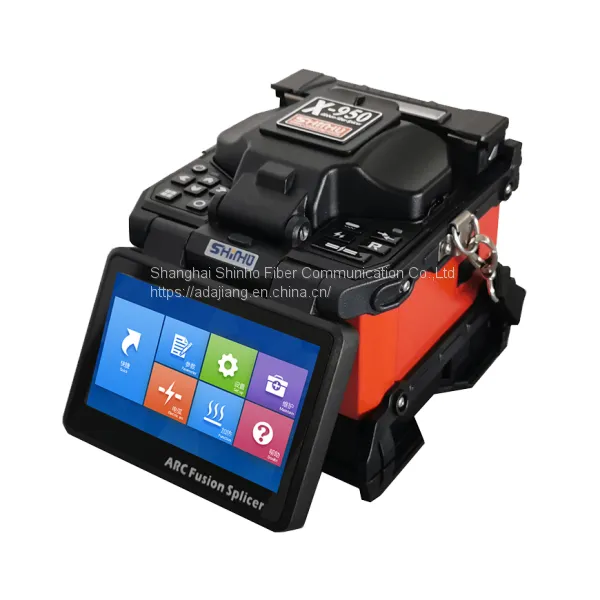

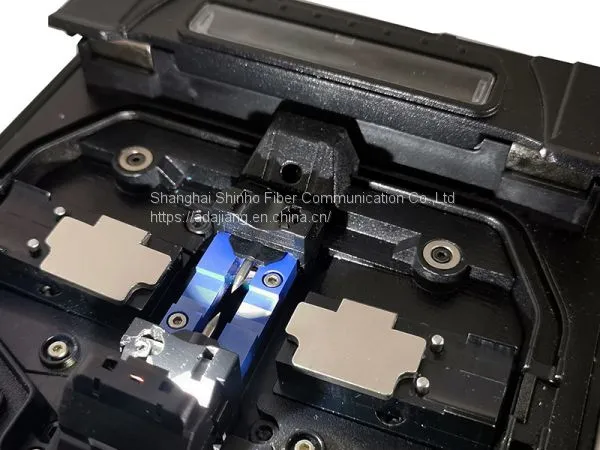

Ribbon Fiber Fusion Splicer X950
US$ 4700 - 4900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHINHO
Place of Origin:
China
Model Number:
X-950
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
3 days
Related Products
-
Large Diameter Fiber Specialty Fiber Fusion Splicer S27US$ 7600 - 7800MOQ: 1 Piece -
Core To Core Alignment Fiber Fusion Splicer X900US$ 1500 - 1800MOQ: 1 Piece
-
Robust Multi Function ARC Fusion Splicer S16US$ 1200 - 1400MOQ: 1 Piece
-
Handheld FTTx Fiber Fusion Splicer X500US$ 800 - 900MOQ: 1 Piece
-
Handheld FTTH Fiber Fusion Splicer X600US$ 800 - 900MOQ: 1 Piece
Brand Name
SHINHO
Place of Origin
China
Model Number
X-950
X-950 Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions.
Features
※Applicable to 2-12 ribbon fiber splicing
※ Accurate alignment, world standard fusion loss
※ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
※ Applicable to different types fibers (SM/MM/DS/NZDS)
※ Ruggedized body, waterproof, anti-dust, anti-shock
※ Pluggable Li-battery, support separate charging
※ Easy to maintenance, easy to replace the electrodes
※ USB port for software upgrading, records exporting
※ Support 4000/100 groups fusion records/fusion images
※ Comply with CE/Rohs international standard
Specifications
|
Applicable fiber |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
Fiber quantity |
Single core，2-12 cores
|
Fiber alignment method |
Clad to Clad |
| Typical splice loss | SM:0.05dB MM:0.02dB DS:0.08dB NZDS:0.08dB |
| Return loss | ＞ 60dB |
| Diameter of coating | 250～400µm |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 20 seconds |
| Typical heating time | 1-2 cores 26 seconds，4-12 cores 40 seconds |
| Fiber magnification | 25X |
| Display screen | 5.0 inch color LCD monitor |
| Records storage | 4000 groups data records and 100 group images |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 150 cycles splicing and heating, suppport separating charging |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 3000 ARC discharges, can be replaced vonveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 155mm(L)×144mm (W)×155mm (H) / |
| Weight | 2.30kg (including battery) |
Standard Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Heating fiber stripper |
| 4 | Fiber holder R-12 |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
