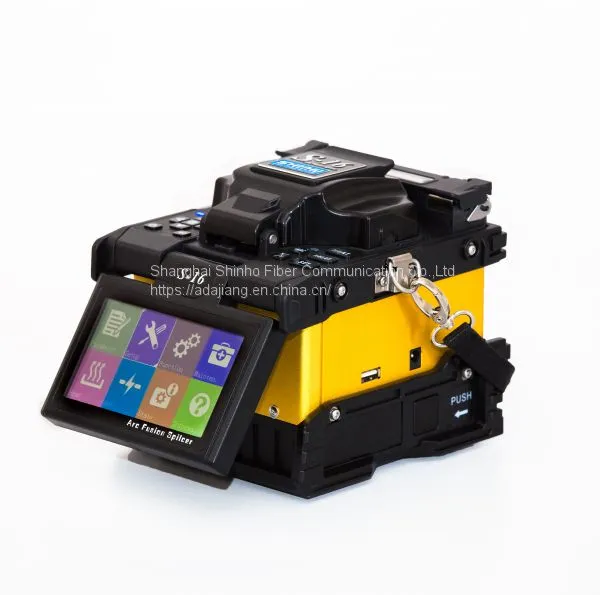

Robust Multi Function ARC Fusion Splicer S16
US$ 1200 - 1400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHINHO
Place of Origin:
China
Model Number:
S-16
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
3 days
Related Products
-
Handheld FTTx Fiber Fusion Splicer X500US$ 800 - 900MOQ: 1 Piece -
Handheld FTTH Fiber Fusion Splicer X600US$ 800 - 900MOQ: 1 Piece
-
Auto-Rotate Blade High Precision Automatic Fiber Cleaver Fiber Cutter X-55bUS$ 120 - 150MOQ: 1 Piece
-
High Precision Optical Fiber Cleaver Quick Cutting Fiber Cleaver SHINHO X50BUS$ 65 - 70MOQ: 1 Piece
-
Ergonomic Kevlar Scissor Fiber Optic Cable Stripper Kevlar CutterUS$ 5 - 10MOQ: 1 Piece
Brand Name
SHINHO
Place of Origin
China
Model Number
S-16
S-16 Fiber fusion splicer is a robust and stable model, used for both indoor and outdoor projects. it is with the upgrade the CPU to get the faster operation speed. It is also with the latest fiber alignment technology to get the low fusion loss. It is suitable for MAN/Telecommunication/FTTx and other related fiber optical projects.
Features
1s boot up, 6s splicing, 18s heating
4 motors accurate fiber alignment technology
Fast splicing and heating, automatic ARC calibration
Inductive automatic heater, upgraded quad-core CPU
76cm dropping anti-shock, IP5X dustproof and IPX2 waterproof
Specifications
|
Applicable fiber |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
Diameter of cladding |
80 -150μm |
Diameter of coating |
160-900μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Typical heating time | 18 seconds |
| Fiber magnification | 250X (X or Y view), 125X (X and Y view) |
| Display screen | 4.3 inch color LCD monitor |
| Records storage | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2 N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating, support separating charging |
| Power supply | Adapter, input: AC 100-240 V(50/60HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 160mm(L) * 136mm(W) * 140mm(H) (with rubber armor) |
| Weight | 2.20kg (including battery) |

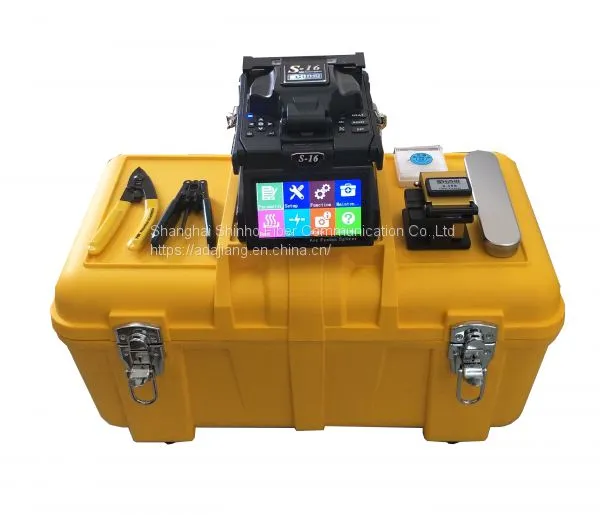

Standard Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
