Handheld FTTx Fiber Fusion Splicer X500
US$ 800 - 900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHINHO
Place of Origin:
China
Model Number:
X-500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
3 days
Related Products
-
Handheld FTTH Fiber Fusion Splicer X600US$ 800 - 900MOQ: 1 Piece -
Auto-Rotate Blade High Precision Automatic Fiber Cleaver Fiber Cutter X-55bUS$ 120 - 150MOQ: 1 Piece
-
High Precision Optical Fiber Cleaver Quick Cutting Fiber Cleaver SHINHO X50BUS$ 65 - 70MOQ: 1 Piece
-
Ergonomic Kevlar Scissor Fiber Optic Cable Stripper Kevlar CutterUS$ 5 - 10MOQ: 1 Piece
-
Fiber Cutting Machine Optical Fiber Cleaver Cable Cutter SHINHO X-50US$ 60 - 65MOQ: 1 Piece
Brand Name
SHINHO
Place of Origin
China
Model Number
X-500

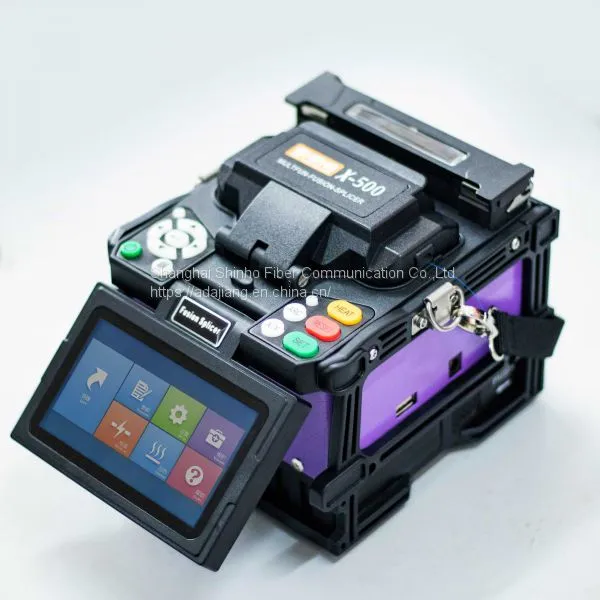

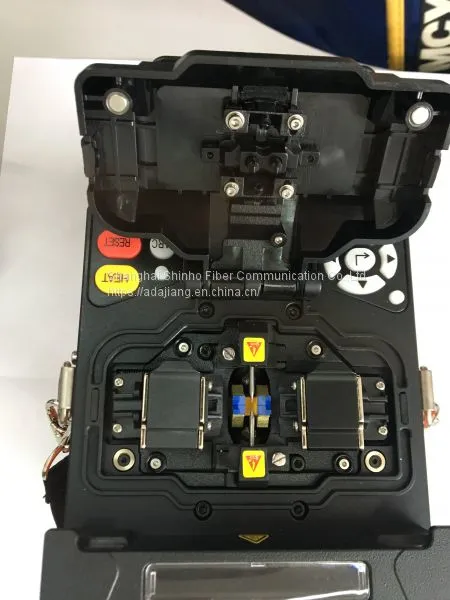

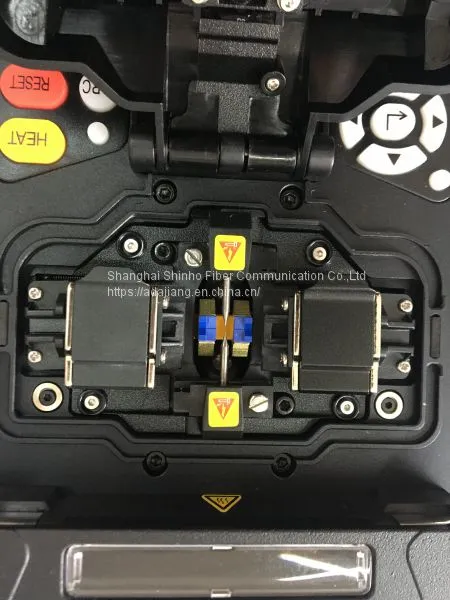

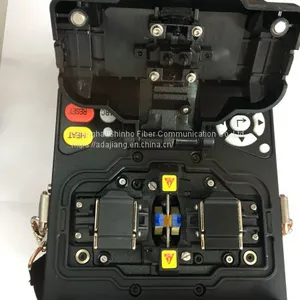

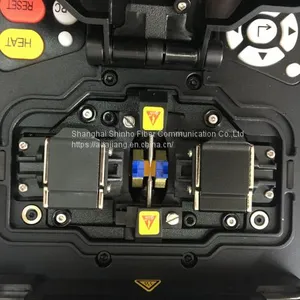

X-500 Fiber fusion splicer is a 4-motor fusion splicer with the latest fiber alignment technology, GUI menu design, upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring etc. projects.
Features
1s boot up, 7s splicing, 26s heating
Stable performance, average fusion loss 0.03dB
Automatic ARC calibration, easy for maintaining
Inductive automatic heater, industrial quad-core CPU
Big capacity battery, more than 250 cycles splice & heat
Specifications
|
Applicable fiber |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) |
Diameter of cladding |
80 -150μm |
Diameter of coating |
160-900μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 7 seconds |
| Typical heating time | 26 seconds |
| Fiber magnification | 250X (X or Y view), 125X (X and Y view) |
| Display screen | 4.3 inch color LCD monitor |
| Records storage | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced vonveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 149mm(L) * 120mm(W) * 127mm(H) |
| Weight | 1.90kg (including battery) |

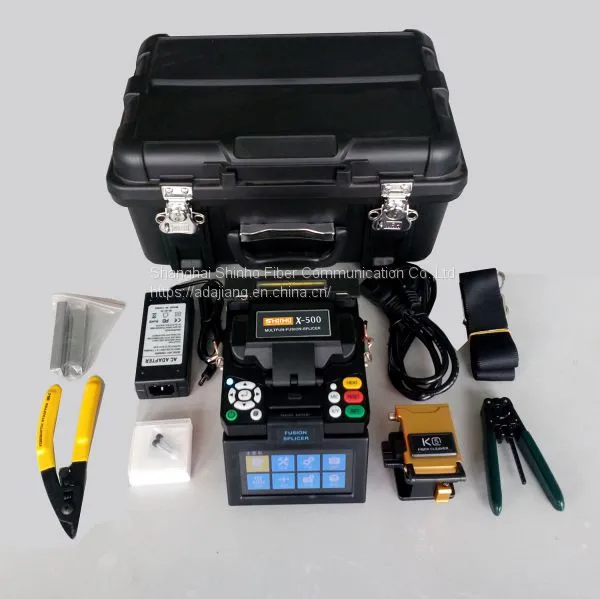

Standard Accessories
| NO. | ITEM |
| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
