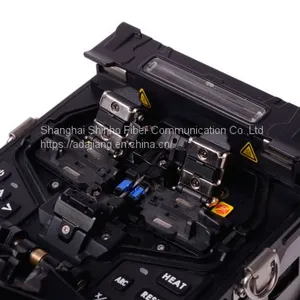

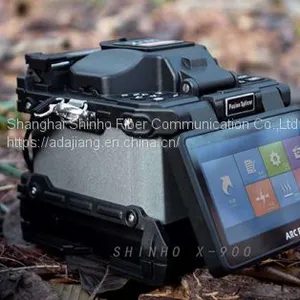

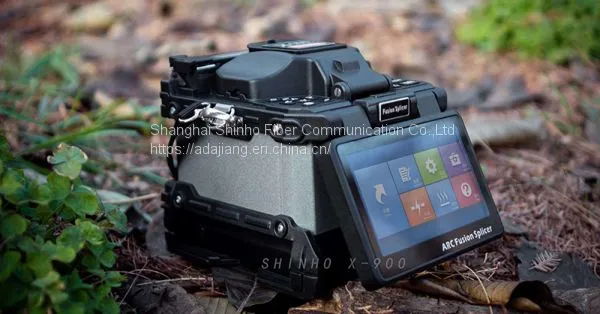

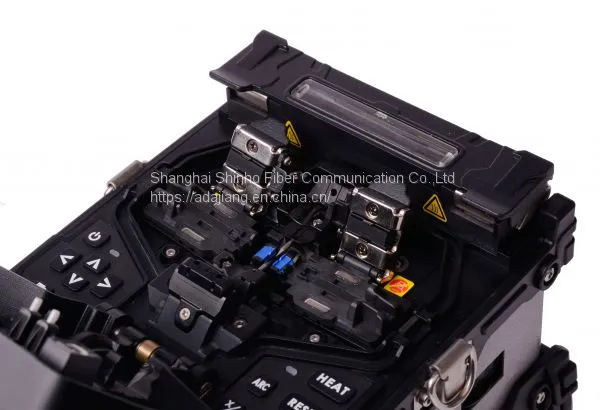

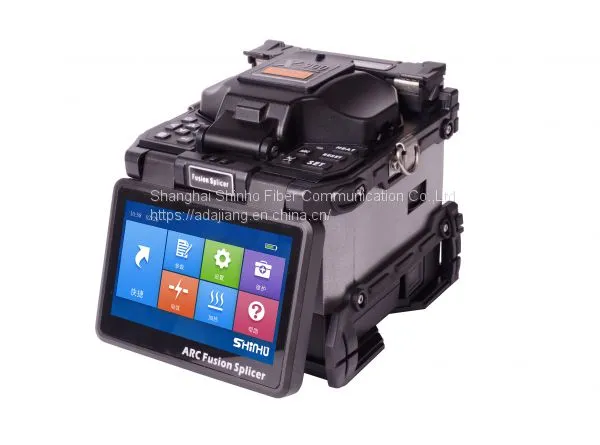

Core To Core Alignment Fiber Fusion Splicer X900
US$ 1500 - 1800
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHINHO
Place of Origin:
China
Model Number:
X-900
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
3 days
Related Products
-
Robust Multi Function ARC Fusion Splicer S16US$ 1200 - 1400MOQ: 1 Piece -
Handheld FTTx Fiber Fusion Splicer X500US$ 800 - 900MOQ: 1 Piece
-
Handheld FTTH Fiber Fusion Splicer X600US$ 800 - 900MOQ: 1 Piece
-
Auto-Rotate Blade High Precision Automatic Fiber Cleaver Fiber Cutter X-55bUS$ 120 - 150MOQ: 1 Piece
-
High Precision Optical Fiber Cleaver Quick Cutting Fiber Cleaver SHINHO X50BUS$ 65 - 70MOQ: 1 Piece
Brand Name
SHINHO
Place of Origin
China
Model Number
X-900
X-900 Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects , including backbone, FTTx etc.
Features
1s boot up, 6s splicing, 18s heating
Fiber type identification automatically
Real-time ARC calibration automatically
Inductive automatic heater, separate charging battery
Industrial quad-core CPU, Japan imported core parts
Specifications
|
Applicable fiber |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), EDFA, others(including G.657) |
Diameter of cladding |
80 -150μm |
Diameter of coating |
160-900μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Typical heating time | 18 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber magnification | 250X (X or Y view), 125X (X and Y view) |
| Display screen | 2 CMOS cameras, 5.0 inch color LCD monitor |
| Records storage | 5000 groups data and 100 groups image |
| Loss evaluation | Available |
| Tension test | >2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 300 cycles splicing and heating, suppport separating charging, operating time more than 5 hours, discharging time more 8 hours |
| Power supply | Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V |
| Electrodes life | More than 5000 ARC discharges, can be replaced conveniently |
| Ternimal | USB2.0 port, for uploading splicer results and upgrading software |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%,Operating Temperature: -25℃~+50℃, Storage temperature -40℃~+80℃；Wind speed: Max 15m/s |
| Dimension | 156mm(L) * 141mm(W) * 156mm(H) (including rubber armor) |
| Weight | 2.45kg (including battery) |
