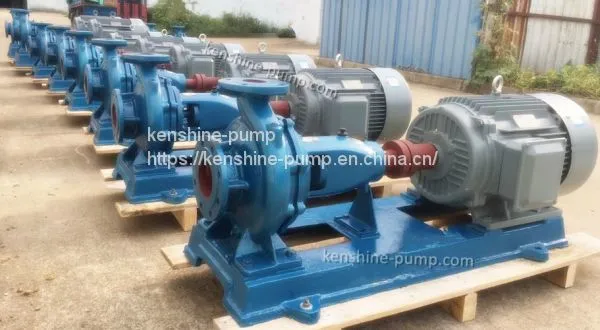

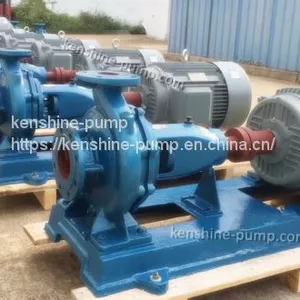

IS Horizontal Centrifugal Fresh Water Pump

IS Horizontal Centrifugal Fresh Water Pump thumbnail-1
IS Horizontal Centrifugal Fresh Water Pump thumbnail-2
IS Horizontal Centrifugal Fresh Water Pump thumbnail-3
IS Horizontal Centrifugal Fresh Water Pump thumbnail-4
IS Horizontal Centrifugal Fresh Water Pump thumbnail-5
IS Horizontal Centrifugal Fresh Water Pump photo-1
IS Horizontal Centrifugal Fresh Water Pump photo-2
IS Horizontal Centrifugal Fresh Water Pump photo-3
IS Horizontal Centrifugal Fresh Water Pump photo-4
IS Horizontal Centrifugal Fresh Water Pump photo-5
US$ 500 - 4000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
IS80-65-125
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number IS80-65-125
Application Other, water drainage
Fuel Other, electric motor
Power Electric
Usage Water
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

IS single-stage single-suction (axial suction) centrifugal pump is for the energy-saving pump designed and manufactured at the base of BA, B and other single-stage clean water centrifugal pump.

The pump has the good hydraulic performance and reasonable structure, a wide application range and easy maintenance and high efficiency etc.

IS centrifugal freshwater pump is suitable for industrial and urban water supply and drainage. It can also be used for agricultural drainage and irrigation and for conveying water or other liquids with physical and chemical properties similar to water. The liquid temperature is not higher than 80℃.

Features:

1. IS centrifugal pump is designed according to the performance and size specified by the international standard ISO2858. It mainly consists of pump body, pump cover, impeller, shaft, seal ring, shaft sleeve and bearing, etc.

2, IS pump body and pump cover are divided from the back of the impeller. It means the pump has the structure of back pull out for the convenient maintenance. During the maintenance, do not move the pump body, suction pipeline, discharge pipeline and motor etc, just remove the middle coupling of the extension coupling and then can exit the rotor part for maintenance.

3, The seal for the pump can be packing seal or mechanical seal.

4. The pump can be driven by motor or diesel engine.  Pump rotation direction is for clockwise rotation from the driving end,

MODEL Speed Q H Efficiency Motor power NPSHr
(r/min) (m3/h) (m) (%) (kw) (m)
IS50-32-125 2900 12.5 20 51 2.2 2

1450 6.3 5 45 0.55 2
IS50-32-125A 2900 11.3 16.4 50 1.5 2

1450 5.7 4.1 43 0.55 2
IS50-32-160 2900 12.5 32 46 3 2

1450 6.3 8 40 0.55 2
IS50-32-160A 2900 11.3 26.4 44 3 2

1450 5.7 6.6 37.1 0.55 2
IS50-32-200 2900 12.5 50 39 5.5 2

1450 6.3 12.5 33 1.1 2
IS50-32-200A 2900 11.3 41 38 4 2

1450 5.7 10.3 31 0.75 2
IS50-32-250 2900 12.5 80 33 11 2

1450 6.3 20 27 2.2 2
IS50-32-250A 2900 11.7 70 32 11 2

1450 5.9 17.5 25 1.5 2
IS65-50-125 2900 25 20 62 3 2

1450 12.5 5 55 0.55 2
IS65-50-125A 2900 22.7 16.5 61 2.2 2

1450 11.3 4.1 54 0.55 2
IS65-50-160 2900 25 32 57 5.5 2

1450 12.5 8 51 0.75 2
IS65-50-160A 2900 22.7 26.5 56 4 2

1450 11.3 6.6 49.6 0.55 2
IS65-40-200 2900 25 50 52 11 2

1450 12.5 12.5 46 1.5 2
IS50-32-250A 2900 11.7 70 32 11 2

1450 5.9 17.5 25 1.5 2
IS65-50-125 2900 25 20 62 3 2

1450 12.5 5 55 0.55 2
IS65-50-125A 2900 22.7 16.5 61 2.2 2

1450 11.3 4.1 54 0.55 2
IS65-50-160 2900 25 32 57 5.5 2

1450 12.5 8 51 0.75 2
IS65-50-160A 2900 22.7 26.5 56 4 2

1450 11.3 6.6 49.6 0.55 2
IS65-40-200 2900 25 50 52 11 2

1450 12.5 12.5 46 1.5 2
IS65-40-200A 2900 22.7 41 50 7.5 2

1450 11.3 10.3 44 1.1 2
IS65-40-250 2900 25 80 46 15 2

1450 12.5 20 39 3 2
IS65-40-250A 2900 23.4 74.8 45 15 2

1450 11.7 17.5 37.9 2.2 2
IS65-40-315 2900 25 125 39 30 2

1450 12.5 32 33 5.5 2
IS65-40-315A 2900 23.4 109.5 38 30 2

1450 11.7 28 33 4 2
IS80-65-125 2900 50 2,  0 69 5.5 3

1450 25 5 64 0.75 2.5
IS80-65-125A 2900 45.3 16.5 67 4 3

1450 22.7 4.1 62 0.55 2.5
IS80-65-160 2900 50 32 67 11 2.3

1450 25 8 62 1.5 2.3
IS80-65-160A 2900 45.3 26.4 65 7.5 2.3

1450 22.7 6.6 60 1.1 2.3
IS80-50-200 2900 50 50 63 15 2.5

1450 25 12.5 57 2.2 2
IS80-50-200A 2900 45.3 41 61 11 2.5

1450 22.7 10.3 56.1 2.2 2
IS80-50-250 2900 50 80 53 30 2.5

1450 25 20 50 5.5 2
IS80-50-250A 2900 45.3 65.7 52 22 2.5

1450 22.7 16.4 49 3 2
IS80-50-315 2900 50 125 50 45 2.5

1450 25 32 48 7.5 2.5
IS80-50-315A 2900 45.3 102.6 48 37 2.5

1450 22.7 25.7 46 5.5 2.5
IS100-80-125 2900 100 20 73 11 4.2

1450 50 5 69 1.5 3.4
IS100-80-125A 2900 91.8 16.8 71 7.5 4.2

1450 45.9 4.2 67 1.1 3.4
IS100-80-160 2900 100 32 73 15 4.3

1450 50 8 68 2.2 3.4
IS100-80-160A 2900 91 26.5 71 15 4.3

1450 45.5 6.6 67 1.5 3.4
IS100-65-200 2900 100 50 72 22 3.9

1450 50 12.5 68 3 2.5
IS100-65-200A 2900 91 41.5 70 18.5 3.9

1450 45.5 10.3 66 3 2.5
IS100-65-250 2900 100 80 68 37 3.6

1450 50 20 63 5.5 2.5
IS100-65-250A 2900 93.5 70 65 37 3.6

1450 45.5 17.4 61 5.5 2.5
IS100-65-315 2900 100 125 62 75 3.2

1450 50 32 58 11 2
IS100-65-315A 2900 93.5 109 61 75 3.2

1450 46.5 28 56 11 2
IS125-100-200 2900 200 50 77 45 5

1450 100 12.5 73 7.5 2.9
IS125-100-200A 2900 182 41.4 75 37 5

1450 91 10.3 71 5.5 2.9
IS125-100-250 2900 200 80 75 75 4.5

1450 100 20 72 11 2.3
IS125-100-250A 2900 186.5 69.5 73 75 4.5

1450 93 17.4 70 11 2.3
IS125-100-315 2900 200 125 72 110 4.5

1450 100 32 65 22 2.5
IS125-100-315A 2900 186.5 108.7 71 90 4.5

1450 93 27.2 64 15 2.5
IS125-10-400 1450 100 50 55 30 2.5
IS150-125-250 1450 200 20 77 18.5 2.8
IH150-125-250A 1450 182 16.5 75 15 2.8
IS150-125-315 1450 200 32 75 30 2.8
IS150-125-315A 1450 182 25.5 73 22 2.8
IS150-125-315B 1450 165 22 72 18.5 2.8
IS150-125-400 1450 200 50 70 55 2.5
IS150-125-400A 1450 182 41 68 37 2.5
IS150-125-400B 1450 165 34 67 30 2.5
IS200-150-250 1450 400 20 79 37 2.8
IS200-150-250A 1450 363 16.5 79 30 2.8
IS200-150-315 1450 400 32 79 55 3.5
IS200-150-315A 1450 363 25.5 77 45 3.5
IS200-150-400 1450 400 50 78 90 3.5
IS200-150-400A 1450 363 41 76 75 3.5
