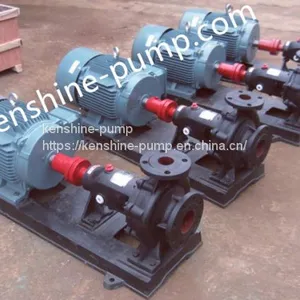

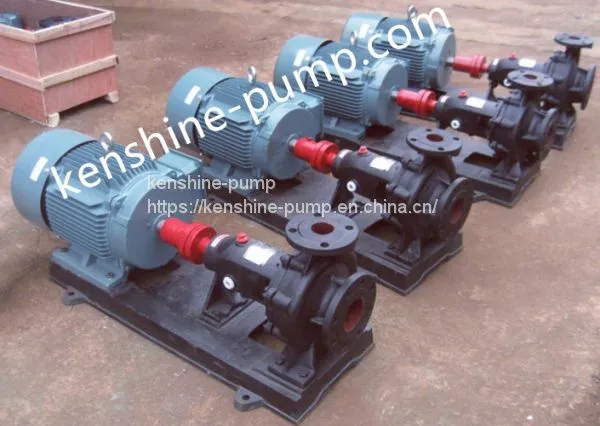

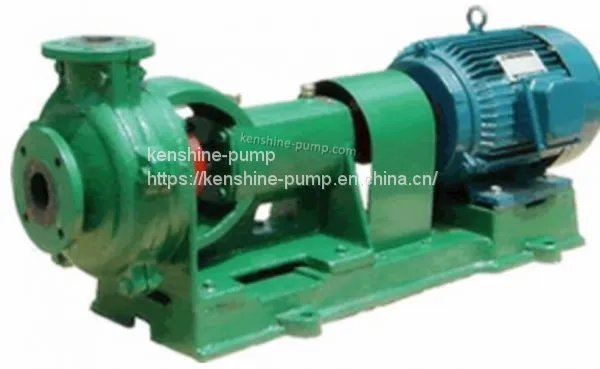

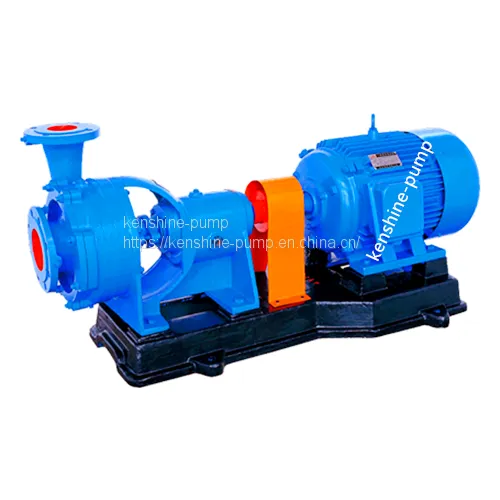

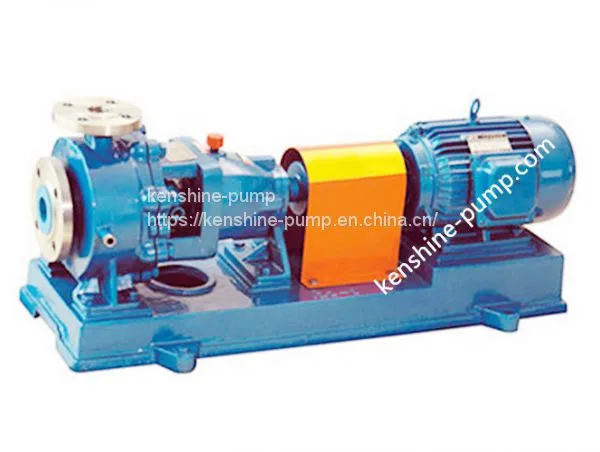

Help CenterBA Horizontal Single Stage Centrifugal Clean Water Pump
Related Products
-
BL Monoblock Centrifugal Water PumpUS$ 300 - 4000MOQ: 1 Set -
YB Electric Vane Oil Transfer PumpUS$ 60 - 100MOQ: 1 Set
-
PBGR Shielded Pipeline Centrifugal Hot Water PumpUS$ 300 - 4000MOQ: 1 Set
-
IRG Vertical Pipeline Hot Water Circulation PumpUS$ 350 - 5000MOQ: 1 Set
-
TSWA Horizontal Multistage Centrifugal Supply Water PumpUS$ 950 - 6000MOQ: 1 Set
BA type horizontal single stage single suction cantilever centrifugal pump is used for suction and delivery of water and other liquids with physical and chemical properties similar to water. BA horizontal centrifugal pump is similar to IS single stage cantilever centrifugal pump.
Performance range:
Head: 8m-93m
Flow: 4.5m3/h-360m3/h,
The highest temperature of the pumped liquid shall not exceed 80℃.
BA horizontal centrifugal pump is widely used for factories, mines, urban water supply and farmland irrigation etc.
Main parts of BA centrifugal pump
Pump body, impeller, pump cover,s haft, bracket ,packing, packing gland ,water fender, bearing ,bearing cover ,oil baffle, locating sleeve, oil pointer, oil baffle ,gasket, key, shaft coupling, bolt ,impeller nut ,washer ,r sealing ring and screw nut etc.
Application:
BA horizontal centrifugal pump is used for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, sprinkler irrigation in gardens, pressurized fire control, long-distance transportation, heating and ventilation refrigeration cycle, farmland irrigation, bathroom and other heating and cooling water cycle pressurized equipment.
Our Clean water pump includes vertical clean water pump, horizontal clean water pump, single-stage clean water pump, multistage clean water pump, centrifugal clean water pump, self-priming clean water pump.
Features of clean water pump:
1, excellent performance: with strong motor device and reasonable body design, efficient, low noise. Flow parts with special treatment is not only easy to rust, but also good for wear resistance.
2. Economical and practical: energy-saving design and reasonable price can help improve your quality of life.
3. Simple assembly and easy to use: the new process design is adopted to make assembly easy and maintenance convenient.
| Model | Flow (Q) | Total | Speed | Motor power | Efficiency(%) | NPSHr | Impeller | Weight | ||
| head | n | m | Diameter | pump/base | ||||||
| m3/h | L/S | m | rpm | Power(KW) | Motor type | mm | kg | |||
| 11/2BA-6 | 6 | 1.6 | 20.3 | 2900 | 0.745 | Y90S-2 | 44 | 6.6 | 126 | 25/20 |
| 11 | 3 | 17.4 | 0.94 | 55.5 | 6.7 | |||||
| 14 | 3.9 | 14 | 0.01 | 1.5 | 53 | 6 | ||||
| 11/2BA-6A | 5 | 1.4 | 16 | 2900 | 0.578 | Y90S-2 | 38 | 6.5 | 115 | 25/20 |
| 9.5 | 2.6 | 14.2 | 0.713 | 51.5 | 6.9 | |||||
| 13.5 | 3.8 | 11.2 | 0.825 | 1.5 | 50 | 6.1 | ||||
| 11/2BA-6B | 4.5 | 1.3 | 12.8 | 2900 | 0.448 | Y802-2 | 35 | 6.4 | 105 | 25/20 |
| 9 | 2.5 | 11.4 | 0.57 | 49 | 7 | |||||
| 13 | 3.6 | 8.8 | 0.693 | 1.1 | 45 | 6.3 | ||||
| 2BA-6 | 10 | 2.8 | 34.5 | 2900 | 1.86 | Y112M-2 | 50.6 | 8.7 | 162 | 42/28 |
| 20 | 5.5 | 30.8 | 2.61 | 64 | 7.2 | |||||
| 30 | 8.3 | 24 | 3.09 | 4 | 63.5 | 5.7 | ||||
| 2BA-6A | 10 | 2.8 | 28.5 | 2900 | 1.43 | Y00L-2 | 54.5 | 8.7 | 148 | 42/28 |
| 20 | 5.5 | 25.2 | 2.08 | 65.6 | 7.2 | |||||
| 30 | 8.3 | 20 | 2.55 | 3 | 64.1 | 5.7 | ||||
| 2BA-6B | 10 | 2.8 | 22 | 2900 | 1.1 | Y90L-2 | 54.9 | 8.7 | 132 | 42/28 |
| 20 | 5.5 | 18.8 | 1.57 | 65 | 7.2 | |||||
| 25 | 6.9 | 16.3 | 1.73 | 2.2 | 94 | 6.6 | ||||
| 2BA-9 | 11 | 3 | 21 | 2900 | 1.12 | Y90L-2 | 56 | 8 | 127 | 40/28 |
| 20 | 5.5 | 18.5 | 1.48 | 68 | 6.8 | |||||
| 25 | 7 | 16 | 1.66 | 2.2 | 66 | 6 | ||||
| 2BA-9A | 10 | 2.8 | 16.8 | 2900 | 0.85 | Y90S-2 | 54 | 8.1 | 117 | 40/28 |
| 17 | 4.7 | 15 | 1.07 | 65 | 7.3 | |||||
| 22 | 6.1 | 13 | 1.23 | 1.5 | 63 | 6.5 | ||||
| 2BA-9B | 10 | 2.8 | 13 | 2900 | 0.695 | Y90S-2 | 51 | 8.1 | 106 | 40/28 |
| 15 | 4.2 | 12 | 0.82 | 60 | 7.6 | |||||
| 20 | 5.6 | 10.3 | 0.89 | 1.5 | 62 | 6.8 | ||||
| 3BA-6 | 30 | 8.3 | 62 | 2900 | 9.3 | Y160L-2 | 54.4 | 7.7 | 218 | 99/80 |
| 45 | 12.5 | 57 | 11 | 73.5 | 6.7 | |||||
| 60 | 16.7 | 50 | 12.3 | 18.5 | 66.3 | 5.6 | ||||
| 70 | 19.5 | 44.5 | 13.3 | 64 | 4.7 | |||||
| 3BA-6A | 30 | 8.3 | 45 | 2900 | 6.65 | Y160M2-2 | 55 | 7.5 | 192 | 99/80 |
| 40 | 11.1 | 41.5 | 7.3 | 62 | 7.1 | |||||
| 50 | 13.9 | 37.5 | 7.98 | 15 | 64 | 7.1 | ||||
| 60 | 17.7 | 30 | 8.3 | 59 | 6.4 | |||||
| 3BA-9 | 40 | 8.3 | 35.5 | 2900 | 4.64 | Y132S2-2 | 62.5 | 7 | 168 | 69/46 |
| 45 | 12.5 | 32.6 | 5.56 | 71.5 | 5 | |||||
| 55 | 15.1 | 28.8 | 6.32 | 7 .5 | 68.2 | 3 | ||||
| 3BA-9A | 25 | 7 | 26.2 | 2900 | 2.83 | Y132S1-2 | 63.7 | 7 | ||
| 35 | 9.7 | 25 | 3.35 | 70.8 | 6.4 | |||||
| 45 | 12.5 | 22.5 | 3.87 | 5 .5 | 71.2 | 5 | ||||
