Home > Products > centrifugal pump > ISW horizontal pipeline booster circulation pump

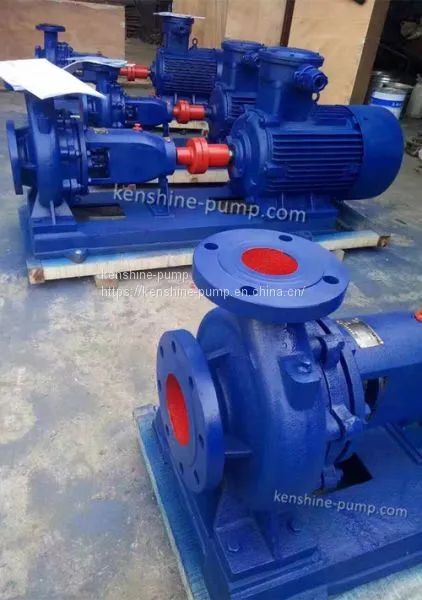

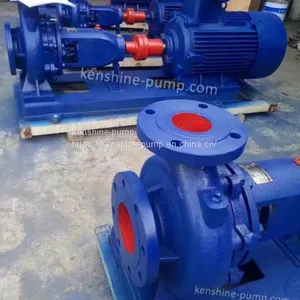

ISW horizontal pipeline booster circulation pump
- 1000 Set / Sets per Month
- Shanghai
- T/T
- 7 days
Product Details
Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | ISW50-125 |
Application: | Other, water,oil,chemical transport | Fuel: | Other, electric motor | Power: | Electric |
Usage: | Water | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description
ISW horizontal pipeline pump can be customized for ordinary type, hot water type, anti-corrosion type, explosion-proof type, etc. The pump has short axle distance, good stability and easy maintenance.
ISW horizontal pipeline pump (ordinary type) can transport water and other liquids with physical and chemical properties similar to water. ISW pipeline pump is suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise building, garden sprinkler irrigation, fire pressurization, long-distance transmission, hvac refrigeration cycle, cold and hot water circulation pressurization in the bathroom, etc, and form a complete set of equipment. Liquid temperature is no higher than 80DegC.
2. ISWR horizontal hot water pump is widely used in: metallurgy, chemical industry, textile, papermaking, hotels and other boilers such as hot water pressurized circulation transport and urban heating system. For ISWR hot water pump, operating temperature ≤120℃.
3, ISWH horizontal chemical pipeline pump (stainless steel) is used for the transport of corrosion liquids without solid particles and viscosity of liquid is similar to water. ISWH chemical pipeline pump is suitable for petroleum, chemical, metallurgy, electricity, paper and synthetic fiber sectors. Operating temperature: -20℃ to 120℃.
4. ISWB horizontal pipeline explosion proof oil pump is used for the transportation of oil, kerosene, diesel and other oil products or combustible, explosive liquid. medium temperature -20DegC to 120℃.
Pump | Capacity | Head | Efficiency | Motor power | Speed | NPSH(r) | |
Type | m3/h | L/s | m | (η) | KW | RPM | m |
50-315(I)A | 16.6 | 4.61 | 115 | 37 | 22 | 2900 | 2.5 |
23.7 | 6.58 | 113 | 43 | ||||
31 | 8.6 | 112 | 40 | ||||
50-315(I)B | 15.7 | 4.36 | 103 | 33 | 18.5 | 2900 | 2.5 |
22.5 | 6.25 | 101 | 39 | ||||
29.2 | 8.1 | 98 | 37 | ||||
65-100 | 17.5 | 4.86 | 13.7 | 67 | 1.5 | 2900 | 2.5 |
25 | 6.94 | 12.5 | 69 | ||||
32.5 | 9.03 | 10.5 | 68 | ||||
65-100A | 15.6 | 4.3 | 11 | 65 | 1.1 | 2900 | 2.5 |
22.3 | 6.19 | 10 | 68 | ||||
29 | 8.1 | 8.4 | 67 | ||||
65-125 | 17.6 | 4.86 | 21.5 | 61 | 3 | 2900 | 2.5 |
25 | 6.94 | 20 | 68 | ||||
32.5 | 9.03 | 18 | 66 | ||||
65-125A | 15.6 | 4.33 | 17 | 58 | 2.2 | 2900 | 2.5 |
22.3 | 6.19 | 16 | 66 | ||||
29 | 8.1 | 14.4 | 65 | ||||
65-160 | 17.5 | 4.86 | 34.4 | 54 | 4 | 2900 | 2.5 |
25 | 6.94 | 32 | 63 | ||||
32.5 | 9.03 | 27.5 | 60 | ||||
65-160A | 16.4 | 4.56 | 30 | 54 | 4 | 2900 | 2.5 |
23.4 | 6.5 | 28 | 62 | ||||
30.4 | 8.44 | 24 | 59 | ||||
65-160B | 15 | 4.17 | 26 | 51 | 3 | 2900 | 2.5 |
21.6 | 6 | 24 | 58 | ||||
28 | 7.78 | 20.6 | 56 | ||||
65-200 | 17.5 | 4.86 | 52.7 | 49 | 7.5 | 2900 | 2.5 |
25 | 6.94 | 50 | 60 | ||||
32.5 | 9.03 | 42.5 | 58 | ||||
65-200A | 16.4 | 4.56 | 46.4 | 48 | 7.5 | 2900 | 2.5 |
23.5 | 6.53 | 44 | 58 | ||||
30.5 | 8.47 | 40 | 57 | ||||
65-200B | 15.2 | 4.22 | 40 | 47 | 5.5 | 2900 | 2.5 |
21.8 | 6.06 | 38 | 55 | ||||
28.3 | 7.86 | 34.5 | 51 | ||||
65-250 | 17.5 | 4.86 | 82 | 39 | 15 | 2900 | 2.5 |
25 | 6.94 | 80 | 52 | ||||
32.5 | 9.03 | 76.5 | 50 | ||||
65-250A | 16.4 | 4.56 | 7.5 | 47 | 11 | 2900 | 2.5 |
23.5 | 6.5 | 70 | 51 | ||||
30.5 | 8.47 | 67 | 48 | ||||
65-250B | 15 | 4.17 | 61 | 43 | 11 | 2900 | 2.5 |
21.6 | 6 | 60 | 50 | ||||
28 | 7.78 | 57.4 | 46 | ||||
65-315 | 17.5 | 4.86 | 127 | 32 | 30 | 2900 | 2.5 |
25 | 6.94 | 125 | 42 | ||||
32.5 | 9.03 | 122 | 40 | ||||
65-315A | 16.6 | 4.61 | 115 | 31 | 22 | 2900 | 2.5 |
23.7 | 6.58 | 113 | 43 | ||||
31 | 8.6 | 110 | 39 | ||||
65-315B | 15.7 | 4.36 | 103 | 33 | 18.5 | 2900 | 2.5 |
22.5 | 6.25 | 101 | 39 | ||||
29.2 | 8.1 | 98 | 37 | ||||
65-100(I) | 35 | 9.72 | 13 .8 | 67 | 3 | 2900 | 3 |
50 | 13.9 | 12.6 | 73 | ||||
65 | 18.1 | 10 | 70 | ||||
65-100(I)A | 31.3 | 8.7 | 11 | 66 | 2.2 | 2900 | 3 |
44.7 | 12.4 | 10 | 72 | ||||
58 | 16.1 | 8 | 69 | ||||
65-125(I) | 35 | 9.72 | 22 | 67 | 5.5 | 2900 | 3 |
50 | 13.9 | 20 | 72.5 | ||||
65 | 18.1 | 17 | 70 | ||||
65-125(I)A | 31.3 | 8.7 | 17.5 | 66 | 4 | 2900 | 3 |
45 | 12.5 | 16 | 71 | ||||
58 | 16.1 | 13.6 | 69 | ||||
65-160(I) | 35 | 9.72 | 35 | 63 | 7.5 | 2900 | 3 |
50 | 13.9 | 32 | 73 | ||||
65 | 18.1 | 28 | 70 | ||||
65-160(I)A | 32.7 | 9.1 | 30.6 | 62 | 7.5 | 2900 | 3 |
46.7 | 13 | 28 | 70 | ||||
61 | 16.9 | 24 | 69 | ||||
65-160(I)B | 30.3 | 8.4 | 26 | 61 | 5.5 | 2900 | 3 |
43.3 | 12 | 24 | 69 | ||||
56.3 | 15.6 | 21 | 68 | ||||
65-200(I) | 35 | 9.72 | 53.5 | 55 | 15 | 2900 | 3 |
50 | 13.9 | 50 | 69 | ||||
65 | 18.1 | 46 | 67 | ||||
65-200(I)A | 32.8 | 9.1 | 47 | 54 | 11 | 2900 | 3 |
47 | 13.1 | 44 | 67 | ||||
61 | 16.9 | 40 | 66 | ||||
65-200(I)B | 30.5 | 8.5 | 40.6 | 53 | 7.5 | 2900 | 3 |
43.5 | 12.1 | 36 | 65 | ||||
56.3 | 15.7 | 33.4 | 64 | ||||
65-250(I) | 35 | 9.72 | 83 | 52 | 22 | 2900 | 3 |
50 | 13.9 | 80 | 62 | ||||
65 | 18.1 | 72 | 59 | ||||
60-250(I)A | 32.5 | 9 | 73 | 58 | 18.5 | 2900 | 3 |
46.7 | 13 | 70 | 60 | ||||
61 | 16.9 | 63 | 58 | ||||
65-250(I)B | 30 | 8.3 | 62 | 56 | 15 | 2900 | 3 |
43.3 | 12 | 60 | 58 | ||||
56 | 15.6 | 54 | 57 | ||||
65-315(I) | 35 | 9.72 | 128 | 44 | 37 | 2900 | 3 |
50 | 13.9 | 125 | 54 | ||||
65 | 18.1 | 121 | 57 | ||||
65-315(I)A | 32.5 | 9 | 112.6 | 43 | 30 | 2900 | 3 |
46.5 | 12.9 | 110 | 54 | ||||
60.5 | 16.8 | 106.4 | 57 | ||||
65-315(I)B | 31 | 8.6 | 102.5 | 53 | 30 | 2900 | 3 |
44.5 | 12.4 | 100 | 53 | ||||
58 | 16.1 | 98 | 53 | ||||
80-100 | 35 | 9.72 | 13.8 | 67 | 3 | 2900 | 3 |
50 | 13.9 | 12.5 | 73 | ||||
65 | 18.1 | 10 | 70 | ||||
80-100A | 31.3 | 8.7 | 11 | 66 | 2.2 | 2900 | 3 |
44.7 | 12.4 | 10 | 72 | ||||
58 | 16.1 | 8 | 69 | ||||
80-125 | 35 | 9.72 | 22 | 67 | 5.5 | 2900 | 3 |
50 | 13.9 | 20 | 72.5 | ||||
65 | 18.1 | 17 | 70 |
