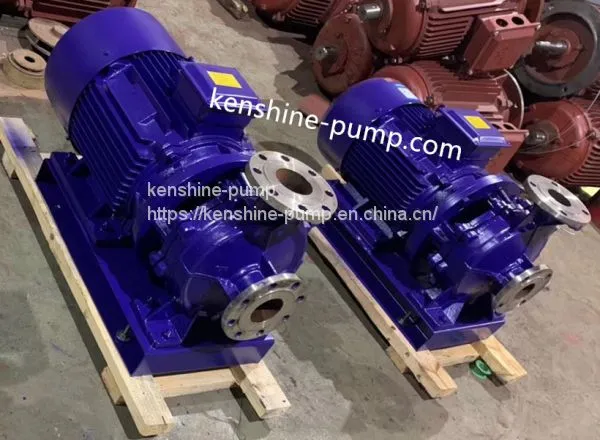

ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump

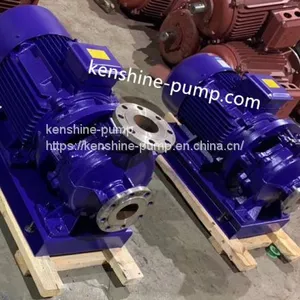

ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump thumbnail-1
ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump thumbnail-2
ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump thumbnail-3

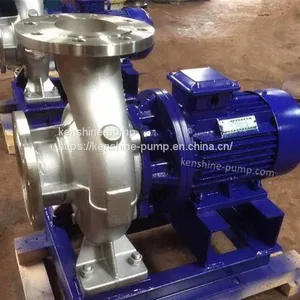

ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump thumbnail-4
ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump thumbnail-5
ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump photo-1
ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump photo-2
ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump photo-3

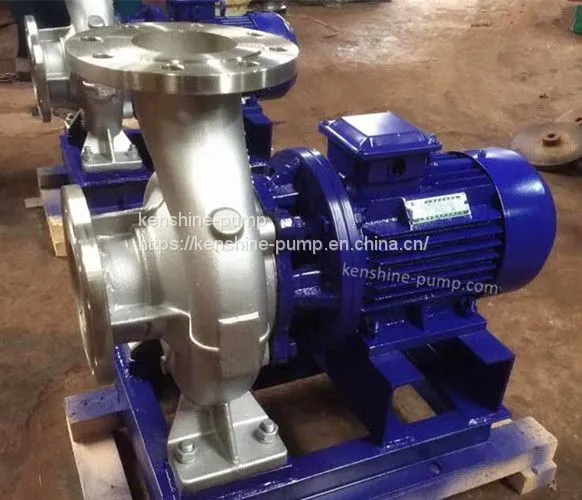

ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump photo-4
ISWD Horizontal Pipeline Low Rotary Speed Centrifugal Pump photo-5
US$ 300 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
ISWD50-125
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number ISWD50-125
Application Other, water supply, booster
Fuel Other, electric motor
Power Electric
Usage Water
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

ISWD horizontal pipeline low rotary speed centrifugal pump

ISWD horizontal pipeline centrifugal pump (horizontal low rotary speed single-stage circulating pump) ISWD horizontal low speed pipeline pump is driven by motor with low rotary speed. The pump can run more reliable and steadily. It is manufactured at the base of ISW type centrifugal pump

According to the working temperature, different medium, ISWD horizontal pipeline low rotary speed centrifugal pump is used to transfer cold water, hot water, high temperature or corrosive chemical liquids. The pump has high efficiency, low noise, reliable performance and other advantages.

Application:

1, ISW horizontal pipeline centrifugal pump can transport clean water and other liquids of physical and chemical properties like clean water. It is applicable to industrial and urban water supply and drainage, pressurized water supply in high-rise building, garden sprinkler irrigation, fire pressurization, long-distance transmission, hvac refrigeration cycle, cold and hot water circulation pressurization in the bathroom, etc, and form a complete set of equipment. working temperature is no higher than 80 DegC.

2. ISWR horizontal hot water pipeline pump is widely used to convey hot water in  metallurgical, chemical, textile, papermaking, hotels and restaurants and other boiler hot water pressurized circulation transmission and urban heating system, ISWR type service temperature t≤120℃.

3, ISWH horizontal stainless steel pipeline centrifugal pump is used to transport chemical corrosive liquids without solid particles and viscosity similar to water. It is suitable for petroleum, chemical, metallurgy, power, paper, food and pharmaceutical and synthetic fiber and other sectors. Working temperature from -20℃ to 120℃.

4. ISWB explosion-proof horizontal pipeline centrifugal pump is used for transporting gasoline, kerosene, diesel and other oil products or flammable and explosive liquids, with the medium temperature of -20 to 120℃.

Model Q(m3/h) Q(L/S) Head(m) Power(KW)
40-100 3.2 0.9 3 0.37
40-125 3.2 0.9 5 0.55
40-160 3.2 0.9 8 0.75
40-200 3.2 0.9 12.5 0.75
40-250 3.2 0.9 20 1.1
40-250A 3 0.8 17.5 0.75
40-250B 2.8 0.8 15 0.55
40-100I 6.3 1.8 3 0.37
40-125I 6.3 1.8 5 0.55
40-160I 6.3 1.8 8 0.55
40-160IA 5.5 1.5 6 0.37
40-200I 6.3 1.8 12.5 0.75
40-200IA 5.8 1.6 11 0.55
40-250I 6.3 1.8 20 1.5
40-250IA 5.8 1.6 17 1.1
40-250IB 5.4 1.5 13 0.75
50-100 6.3 1.8 3 0.37
50-125 6.3 1.8 5 0.55
50-160 6.3 1.8 8 0.55
50-160A 5.5 1.5 6 0.37
50-200 6.3 1.8 12.5 0.75
50-200A 5.8 1.6 11 0.55
50-250 6.3 1.8 20 1.5
50-250A 5.8 1.6 17 1.1
50-250B 5.4 1.5 13 0.75
50-100I 12.5 3.5 3 0.37
50-125I 12.5 3.5 5 0.55
50-160I 12.5 3.5 8 0.75
50-160IA 11 3.1 6 0.55
50-200I 12.5 3.5 12.5 1.1
50-200IA 11.2 3.1 10 0.75
50-250I 12.5 3.5 20 2.2
50-250IA 11.7 3.3 17.5 1.5
50-250IB 10 2.8 13 1.1
50-315I 12.5 3.5 32 4
50-315IA 11.7 3.3 28 3
50-315IB 10 2.8 21 3
50-400I 12.5 3.5 50 7.5
50-400IA 11.4 3.2 44 7.5
50-400IB 10.4 2.9 39 5.5
65-100 12.5 3.5 3 0.37
65-125 12.5 3.5 5 0.55
65-125A 11 3.1 3.8 0.37
65-160 12.5 3.5 8 0.75
65-160A 11 3.1 6 0.55
65-200 12.5 3.5 12.5 1.1
65-200A 11.2 3.1 10 0.75
65-250 12.5 3.5 20 2.2
65-250A 11.7 3.3 17.5 1.5
65-250B 10 2.8 13 1.1
65-315 12.5 3.5 32 4
65-315A 11.7 3.3 28 3
65-315B 10 2.8 21 3
65-100I 25 6.9 3 0.37
65-125I 25 6.9 5 0.75
65-125IA 21.8 6.1 3.8 0.55
65-160I 25 6.9 8 1.5
65-160IA 22 6.1 6 1.1
65-200I 25 6.9 12.5 2.2
65-200IA 23.3 6.5 11 1.5
65-250I 25 6.9 20 3
65-250IA 22.2 6.2 15.8 2.2
65-250IB 20 5.6 12.8 1.5
65-315I 25 6.9 32 5.5
65-315IA 22.2 6.2 26 4
65-315IB 20 5.6 21 3
65-400I 25 6.9 50 11
65-400IA 22.8 6.3 43.5 7.5
65-400IB 20.7 5.8 38 7.5
80-100 25 6.9 3 0.37
80-125 25 6.9 5 0.75
80-125A 21.8 6.1 3.8 0.55
80-160 25 6.9 8 1.5
80-160A 22 6.1 6 1.1
80-200 25 6.9 12.5 2.2
80-200A 23.3 6.5 11.3 1.5
80-250 25 6.9 20 3
80-250A 22.2 6.2 15.8 2.2
80-250B 20 5.6 12.8 1.5
80-315 25 6.9 32 5.5
80-315A 22.5 6.3 26 4
80-315B 20 5.6 21 3
80-100I 50 13.9 3 0.75
80-125I 50 13.9 5 1.5
80-125IA 44.6 12.4 4 1.1
80-160I 50 13.9 8 2.2
80-160IA 44.7 12.4 6 1.5
80-160IB 43.2 12 5.8 1.5
80-200I 50 13.9 12.5 4
80-200IA 44.7 12.4 10 3
80-250I 50 13.9 20 5.5
80-250IA 46 12.8 17 4
80-250IB 40.5 11.3 13 3
80-315I 50 13.9 32 11
80-315IA 46 12.8 27.9 7.5
80-315IB 40.5 11.3 21 5.5
80-400I 50 13.9 50 15
80-400IA 46 12.8 43.5 11
80-400IB 42.3 11.8 38 11
80-500I 50 13.9 80 30
80-500IA 46 12.8 71 30
80-500IB 42.3 11.8 63.5 22
100-100 50 13.9 3 0.75
100-125 50 13.9 5 1.5
100-125A 44.6 12.4 3.8 1.1
100-160 50 13.9 8 2.2
100-160A 46 12.8 6 1.5
100-200 50 13.9 12.5 4
100-200A 44.7 12.4 10 3
100-250 50 13.9 20 5.5
100-250A 46 12.8 17 4
100-250B 40.5 11.3 13 3
100-315 50 13.9 32 11
100-315A 46 12.8 27.9 7.5
100-315B 40.5 11.3 21 5.5
100-125I 80 22.2 5 2.2
100-160I 80 22.2 8 3
100-160IA 72 20 6.5 2.2
100-200I 80 22.2 12.5 5.5
100-200IA 72 20 10 4
100-250I 80 22.2 20 11
100-250IA 72 20 17.5 7.5
100-250IB 69 19.2 15 5.5
100-315I 80 22.2 32 15
100-315IA 75 20.8 27.5 11
100-315IB 70 19.4 24 11
100-400I 80 22.2 50 30
100-400IA 75 20.8 44 22
100-400IB 70 19.4 38 18.5
100-500I 100 27.8 80 45
100-500IA 91 25.3 71 37
100-500IB 83 23.1 63.5 30
