GW LW Vertical Sewage Non Blocking Pump

GW LW Vertical Sewage Non Blocking Pump thumbnail-1
GW LW Vertical Sewage Non Blocking Pump thumbnail-2

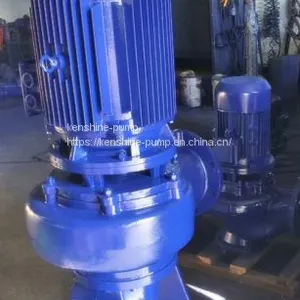

GW LW Vertical Sewage Non Blocking Pump thumbnail-3

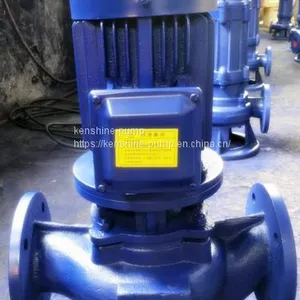

GW LW Vertical Sewage Non Blocking Pump thumbnail-4
GW LW Vertical Sewage Non Blocking Pump thumbnail-5

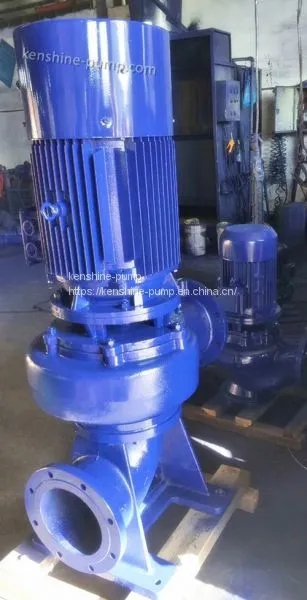

GW LW Vertical Sewage Non Blocking Pump photo-1

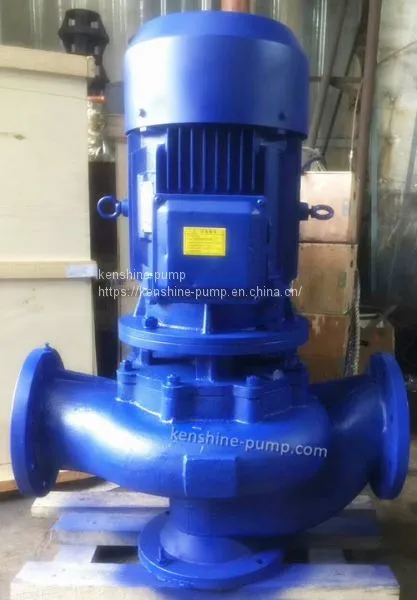

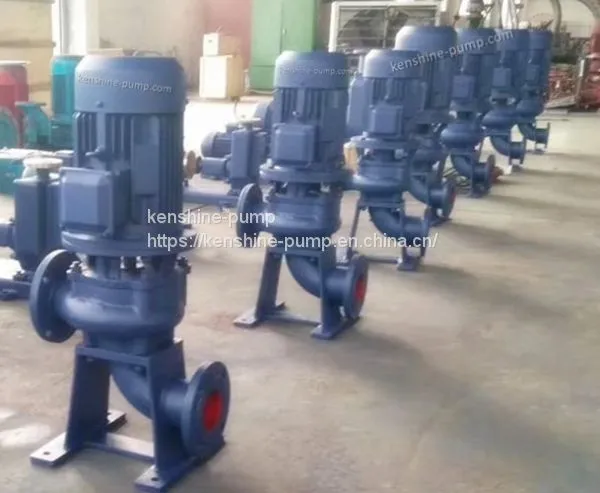

GW LW Vertical Sewage Non Blocking Pump photo-2
GW LW Vertical Sewage Non Blocking Pump photo-3

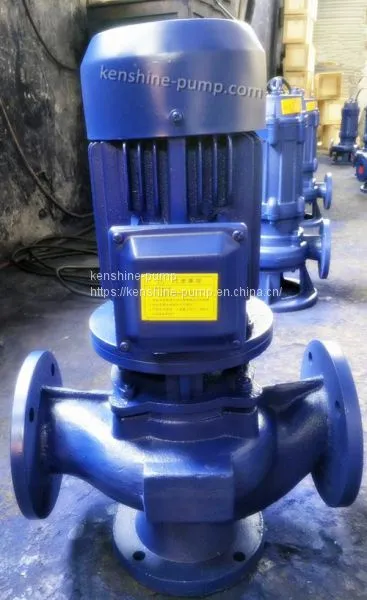

GW LW Vertical Sewage Non Blocking Pump photo-4
GW LW Vertical Sewage Non Blocking Pump photo-5
US$ 300 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
150LW200-25-30
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number 150LW200-25-30
Application Sewage
Fuel Other, sewage,wastewater discharge
Power Electric
Usage Other, wastewater
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

GW Vertical pipeline sewage pump and LW Vertical sewage pump adopts the impellers of single (double)flow channels to have the strong sewage discharge capacity.  The pump can be made of cast iron or stainless steel material and GW and LW vertical sewage pumps are used to transfer the fluids with solid particles or fiber etc impurity.  The particle diameter can be 50% of the pump diameter and fiber length can be 5 times of pump outlet diameter.   GW and LW Vertical sewage pump is equipped with hard alloy mechanical seal to have the long life.

Features:

GW and LW Vertical sewage pumps are the efficient non-blocking sewage pump. The motor and hydraulic components are connected into one whole. It is easy to disassemble and assemble and save the cost.

Use scope:

1. Wastewater discharge by enterprises

2. Discharge system of urban sewage treatment plant;

3. Subway, basement and civil air defense drainage station;

4. Sewage discharge from hospitals, hotels and high-rise buildings;

5. Sewage drainage station in residential area;

6. Discharge of thin mud in municipal engineering and construction sites;

7, aquaculture sewage discharge several rural irrigation;

8. Supporting water treatment equipment for exploration mines

Caliber Model Flow  Head Speed Power
mm m3/h m r/min kw
25 25LW6-10-0.75 6 10 2900 0.75
25LW6-15-1.1 6 15 2900 1.1
32 32LW8-12-0.75 8 12 2900 0.75
32LW12-15-1.5 12 15 2900 1.5
40 40LW10-10-0.75 10 10 2900 0.75
40LW8-15-1.1 8 15 2900 1.1
40LW12-15-1.5 12 15 2900 1.5
40LW15-20-2.2 15 20 2900 2.2
50 50LW20-7-0.75 20 7 2900 0.75
50LW10-10-0.75 10 10 2900 0.75
50LW10-12-1.1 10 12 2900 1.1
50LW25-10-1.5 25 10 2900 1.5
50LW20-15-1.5 20 15 2900 1.5
50LW15-15-1.5 15 15 2900 1.5
50LW10-20-2.2 15 20 2900 2.2
50LW15-18-2.2 15 18 2900 2.2
50LW15-25-2.2 15 25 2900 2.2
50LW27-15-2.2 27 15 2900 2.2
50LW30-14-2.2 30 14 2900 2.2
50LW42-9-2.2 42 9 2900 2.2
50LW30-10-2.2 30 10 2900 2.2
50LW20-22-3 20 22 2900 3
50LW25-18-3 25 18 2900 3
50LW15-30-3 15 30 2900 3
50LW25-20-4 25 20 2900 4
50LW40-15-4 40 15 2900 4
50LW20-30-5.5 20 30 2900 5.5
50LW20-40-7.5 20 40 2900 7.5
50LW25-35-7.5 25 35 2900 7.5
50LW30-40-7.5 30 40 2900 7.5
65 65LW25-10-1.5 25 10 2900 1.5
65LW35-7-2.2 35 7 2900 2.2
65LW30-10-2.2 30 10 2900 2.2
65LW25-15-2.2 25 15 2900 2.2
65LW37-13-3 37 13 2900 3
65LW30-22-4 30 22 2900 4
65LW40-15-4 40 15 2900 4
65LW25-30-4 25 30 2900 4
65LW32-25-5.5 32 25 2900 5.5
65LW40-30-7.5 40 30 2900 7.5
65LW30-40-7.5 30 40 2900 7.5
65LW30-45-11 30 45 2900 11
65LW35-50-15 35 50 2900 15
65LW35-60-18.5 35 60 2900 18.5
80 80LW40-7-2.2 40 7 2900/1450 2.2
80LW43-13-3 43 13 2900 3
80LW40-15-4 40 15 2900 4
80LW50-20-5.5 50 20 2900 5.5
80 80LW40-25-5.5 40 25 2900 5.5
80LW30-30-5.5 30 30 2900 5.5
80LW65-25-7.5 65 25 2900 7.5
80LW50-20-7.5 50 20 2900 7.5
80LW30-40-7.5 30 40 2900 7.5
100 100LW85-10-4 85 10 1450/2900 4
100LW50-20-5.5 50 20 1450/2900 5.5
100LW65-15-5.5 65 15 1450/2900 5.5
100LW100-10-7.5 100 10 1450/2900 7.5
100LW85-15-7.5 85 15 1450/2900 7.5
100LW80-20-7.5 80 20 1450/2900 7.5
100LW100-15-7.5 100 15 1450/2900 7.5
100LW100-25=11 100 25 1450/2900 11
100LW100-30-15 100 30 1450/2900 15
100LW100-35-18.5 100 35 1450/2900 18.5
150 150LW145-9-7.5 145 9 1450 7.5
150LW110-15-7.5 110 15 1450 7.5
150LW200-7-11 200 7 980 11
150LW200-10-15 200 10 1450 15
150LW180-20-18.5 180 20 1450 18.5
150LW180-25-22 180 25 1450 22
150LW200-20-22 200 20 1450 22
150LW240-20-30 240 20 1450 30
150LW200-25-30 200 25 1450 30
150LW150-35-37 150 35 1450 37
200 200LW300-7-11 300 7 980 11
200LW250-11-15 250 11 1450 15
200LW250-15-18.5 250 15 1450 18.5
200LW400-10-22 400 10 1450 22
200LW300-15-22 300 15 1450 22
200LW400-13-30 400 13 1450 30
200LW400-18-37 400 18 1450 37
200LW400-20-45 400 20 1450 45
200LW400-25-55 400 25 1450 55
250 250LW600-9-30 600 9 980 30
250LW600-12-37 600 12 980 37
250LW600-15-45 600 15 1450 45
250LW600-20-55 600 20 1450 55
250LW600-25-75 600 25 1450 75
300 300LW800-12-45 800 12 1450 45
300LW800-15-55 800 15 1450 55
300LW800-20-75 800 20 1450 75
300LW950-20-90 950 20 1450 90
300LW1000-25-110 1000 25 1450 110
350 350LW950-14-55 950 14 980 55
350LW1260-12-75 1260 12 980 75
350LW1450-14-90 1450 14 980 90
350LW1200-20-110 1200 20 980 110
