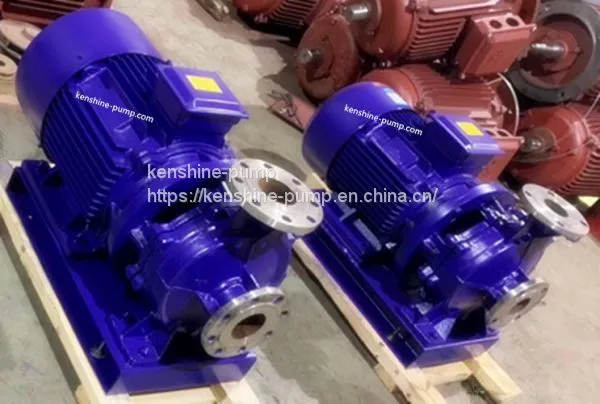

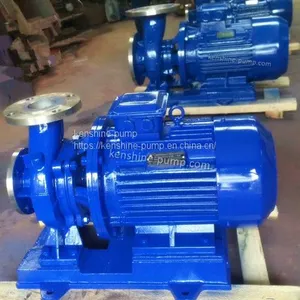

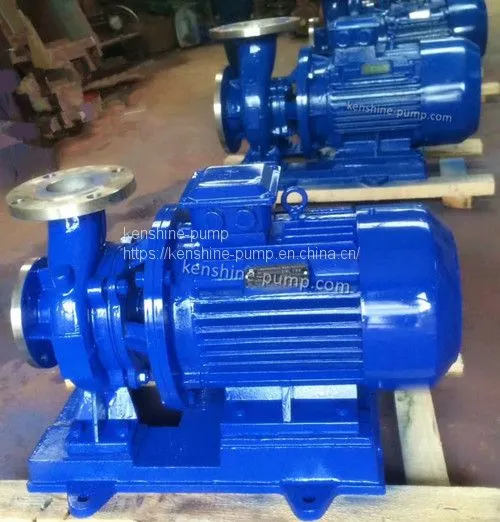

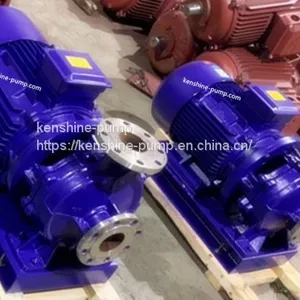

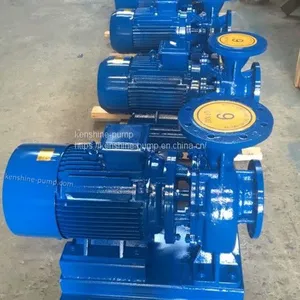

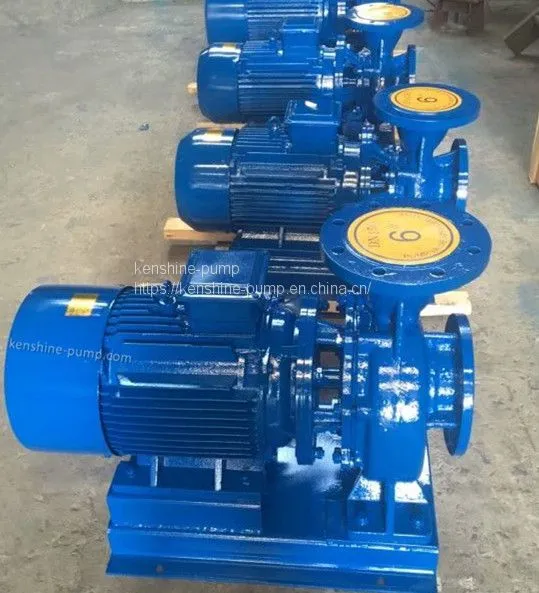

ISW horizontal Monoblock centrifugal pump is designed and made according to ISO2858 Standard as the high efficiency and saving-energy pump
1. ISW horizontal fresh water pump is used for conveying clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, pressurized water supply in high-rise buildings, sprinkler irrigation in gardens, pressurized fire fighting, long-distance transportation, heating and ventilation refrigeration cycle, bathroom and other pressurized cold and warm water cycle and supporting equipment.
2, ISWR horizontal hot water pump is widely applicable for hot water transportation in metallurgy, chemical industry, textile, paper and hotels and other boiler etc. for hot water pressurized circulation transmission and urban heating system, ISWR operating temperature T≤120℃.
3, ISWH horizontal chemical pump is used to transport corrosive medium without solid particles,,. Medium viscosity is similar to water. ISWH pump is suitable for petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fiber and other sectors. Operating temperature of -20℃ ~ +120℃.
4, ISWY horizontal pipeline oil pump is used for the transportation of gasoline, kerosene, diesel oil and other oil products or flammable, explosive liquid, medium temperature is -20℃ ~ 120℃.
5. IHWB horizontal stainless steel explosion-proof chemical centrifugal pump is suitable for conveying inflammable chemical liquid.
6. ISWD horizontal low speed pump is suitable for occasions where low environmental noise is required. Operating temperature T≤120℃.
Features:
Hot water circulating pump runs smoothly: the absolute concentricity of the pump shaft and the excellent balance of the impeller ensure smooth operation and no vibration.
No leakage: hard alloy seals of different materials ensure no leakage in different media transportation.
Low noise: the pump is supported by two low noise bearings runs smoothly, with basically no noise except the weak sound of the motor.
Low failure rate: the structure is simple and reasonable, the key parts are equipped with international first-class quality, and the working time of the whole machine is greatly improved.
Easy maintenance: replacing the seal, bearing is simple and convenient.
Floor space is more economical: the exit can be left, right, up (three directions). It is convenient for pipeline layout and installation and to save space.
