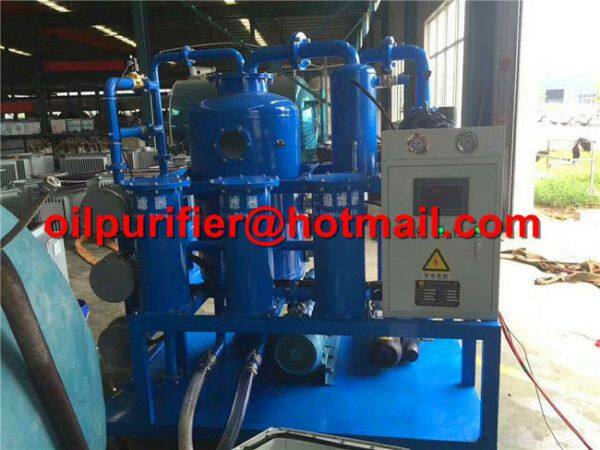

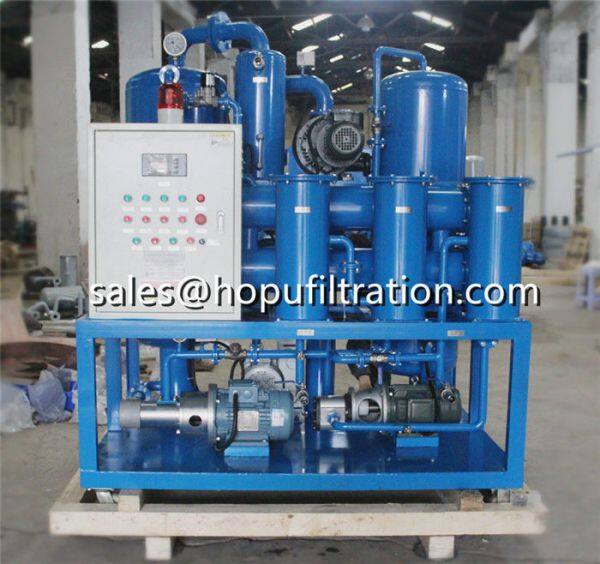

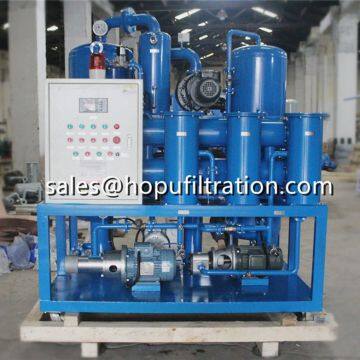

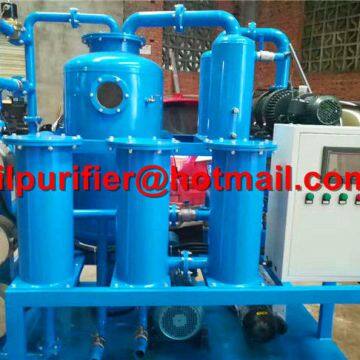

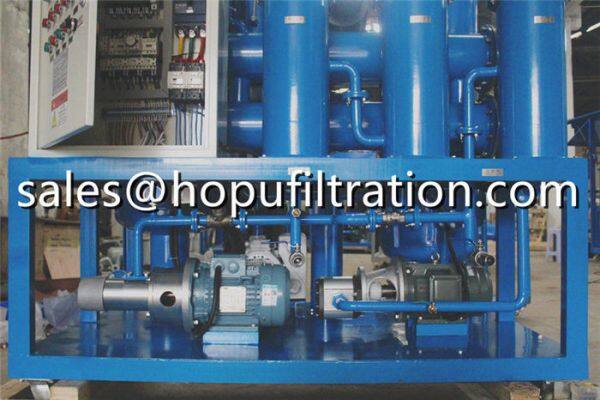

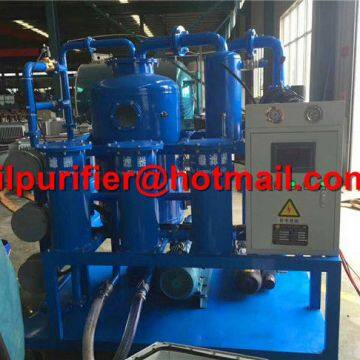

Help CenterDouble Stage Vacuum Transformer Oil Filtering Machine, Insulation Oil Filtration System, Vacuum Cable Oil Drying Plant
Related Products
-
Transformer Oil Filtration Machine With Weather Proof Cabinet,Used Insulating Oil Refining KitUS$ 9000 - 45000MOQ: 1 Set -
Double Stage Transformer Oil Dehydration, Switchgear Oil Purification Machine, Fr3 Transformer Oil Fluids Filtration Plant, Fully-automatic Insulation Oil PurifierUS$ 9000 - 45000MOQ: 1 Set
-
Open-air Fully-enclosed Insulating Oil Filtering Machine, High Voltage Isolated Oil Filter Plant With CabinetUS$ 9000 - 45000MOQ: 1 Set
-
High Vacuum Double Stage Transformer Oil Dehydration Plant, Insulation Oil Purification Machine,vacuum Oiling and Drying Equipment for TransformersUS$ 9000 - 45000MOQ: 1 Set
-
Insulating Oil Sludge Cleaning System,transformer Oil Recovering Plant,Electric Insulation Oil Renewable SystemUS$ 10000 - 60000MOQ: 1 Set
Product Features
1. This series have an oil tank with two-stage vacuum-segregating space, it come into being different pressure so as to keep oil line balance between two stages.
2. This product adopts vacuum-pump imported from Europe, which have preceding level in the world, and with high air pump speed so as to get high working vacuity.
3. As the new technology, vacuum-segregating employs a particular stainless steel,foldable column for dehydration and degassing ,and enlarges the area of separatingto facilate three-dimensional evaporation, so as to abtain enough time for degrassing and achieve the best effect of separation.
4. Using new type of heating equipment , which has low heating load and is able to prevent oil from ageing.
5. Oil level control adopt photoelectric way ( the main components is imported from Switzerland )and features a very sensitive precise control. Even foams can be sensed, and thus there is no possibility of oil spray.
6. Personalized design, customers can require to choose their components are all or partyly imported from overseas. Include touching screen and flow gauge is can be selected according to customers. This series could meet different kinds of customersneed.
7. It equips filter elements imported from U.S.A.,which has large filtering area, strongly absorbent-dirt capability, high filtering precision.
8.Whether clients choose the oil pump from domestic or abroad, they all must be airproofed by our factory, they are free from oil leakage, low in operationnoise, and long in using life.
Technical Parameters:
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow Rate |
L/h |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Working vacuum |
MPa |
-0.08 ~ -0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Temperature Range |
℃ |
20 ~ 80 |
|||||||
Power |
Three Phase 50Hz,380V (or as needed) |
||||||||
Working Noise |
dB(A) |
70 |
70 |
70 |
75 |
75 |
75 |
75 |
|
Heating Power |
KW |
28 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
KW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
Kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Guarantee Value
Item |
Unit |
After treatment |
Breakdown Voltage |
kV |
≥75 |
Moisture content |
PPM |
≤3 |
Gas content |
% |
≤0.1 |
Impurity size |
micron |
≤0.5 (no free carbon) |
IFT |
dynes/cm |
≥40 |
Acid value |
mg KOH/g |
≤ 0.03 |
Dielectric loss factors |
tgδ(90℃) |
≤0.001 |
Color |
L |
≤0.5 |
