Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > 6150 CNC Lathe|cnc Lathe 6150|Horizontal CNC Lathe

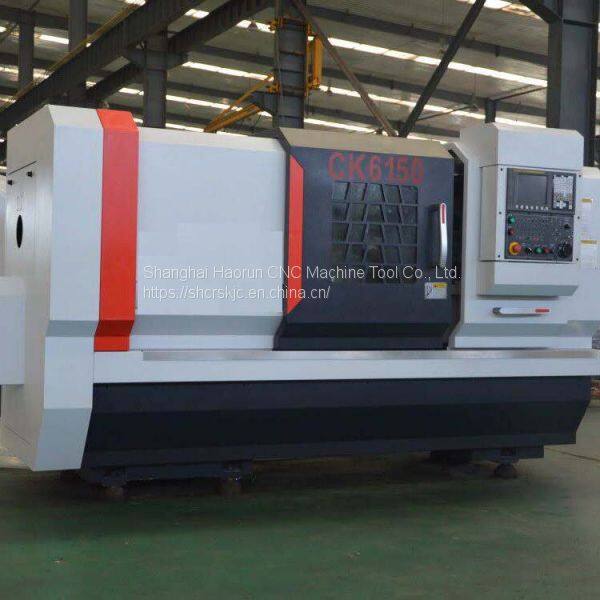

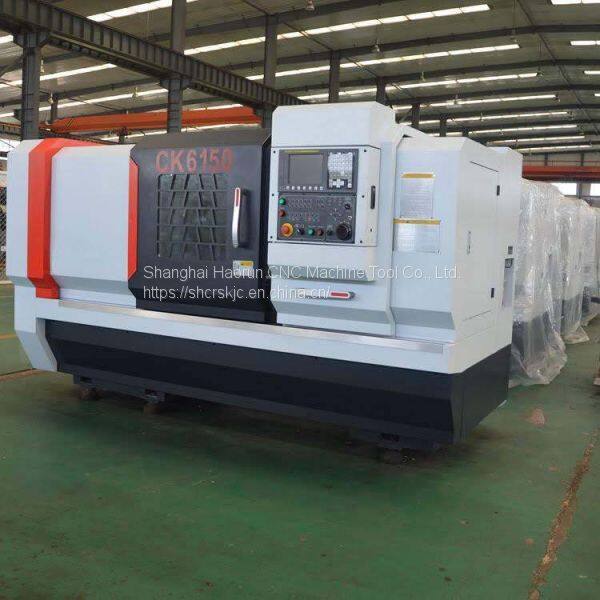

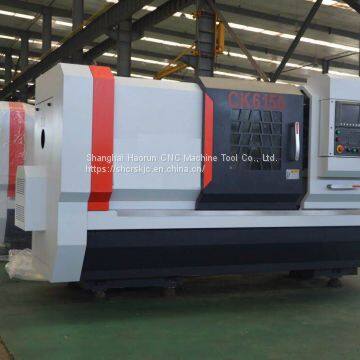

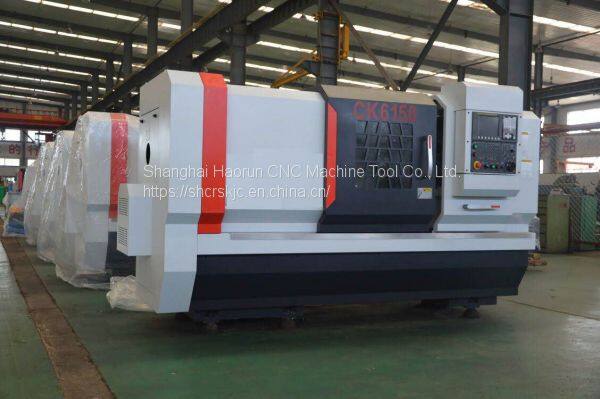

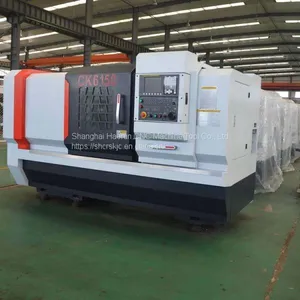

6150 CNC Lathe|cnc Lathe 6150|Horizontal CNC Lathe
US$ 8500 - 9522
MOQ: 1 Box
Key Specifications
Get Latest Price
Brand Name:
Yurun
Place of Origin:
China
Model Number:
ck6150
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
25 days
Related Products
Brand Name
Yurun
Place of Origin
China
Model Number
ck6150
Type
Horizontal
After-sales Service Provided
No overseas service provided
Weight
2000/2500
Dimension(L*W*H)
2500/3000X1500X1650
Voltage
220
Condition
New
Power(W)
7500
Automatic Grade
Automatic
CNC or Not
CNC
The main performance characteristics：
Widening high stability bed Two gear spindle speed,stepless in gearWider layor boardIntergrated automatic lubrication system
Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
Product main technical Specifications:
| Specifications | Unit | CK6150 |
| Max.swing over bed | mm | Ф500 |
| Max.swing over cross slide | mm | Ф280 |
| Distance between centers | mm | 1000/1500 |
| X/Z axis travel | mm | X:220 Z:1050/1600 |
| Spindle transmission type | Mechanical 2 gear transmission ,in gear variable speed | |
| Spindle speed steep | variable | |
| Spindle speed | rpm | L:70～560，H:200～1600 |
| Spindle nose | C6 | |
| Thru-hole dia.of spindle | mm | 52 |
| Spindle taper | MT6 | |
| Spindle motor | KW | 7.5 |
| Chuck size | mm | 250 |
| Ball screw dia.and pitch | mm | φ25X6/φ40X8 |
| X/Z axis feed motor torque | N.m | X:6 Z:10 |
| X/Z axis feed motor power | KW | X:1.5 Z:2.5 |
| X/Z axis fast moving speed | mm/min | X:6000 Z:8000 |
| X/Z axis Position accuracy | mm | 0.02/0.025 |
| X/Z axis repeatability | mm | 0.01/0.015 |
| Processing accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | |
| Tailstock sleeve dia. | mm | 75 |
| Tailstock sleeve travel | mm | 140 |
| Tailstock sleeve taper | # | MT5 |
| Guide form | Spindle mountain+flat rail | |
| Total power capacity | KVA | 10 |
| Machine dimension(L×W×H） | mm | 2500/3000X1500X1650 |
| N.W. | kg | 2000/2500 |
