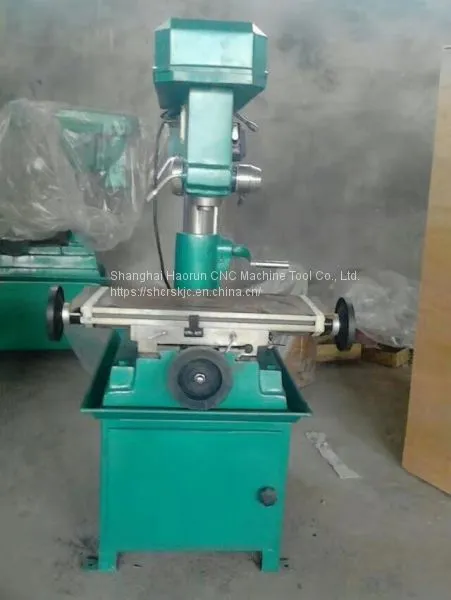

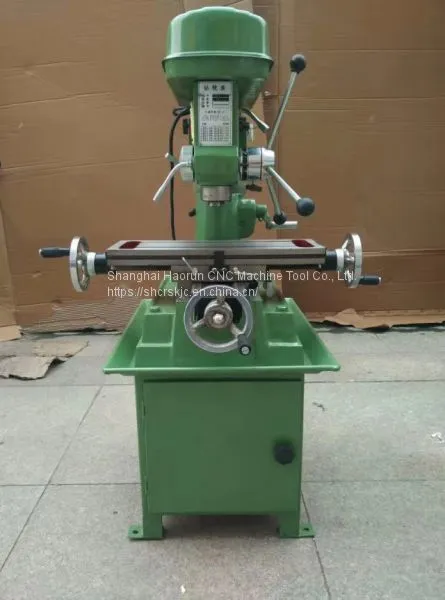

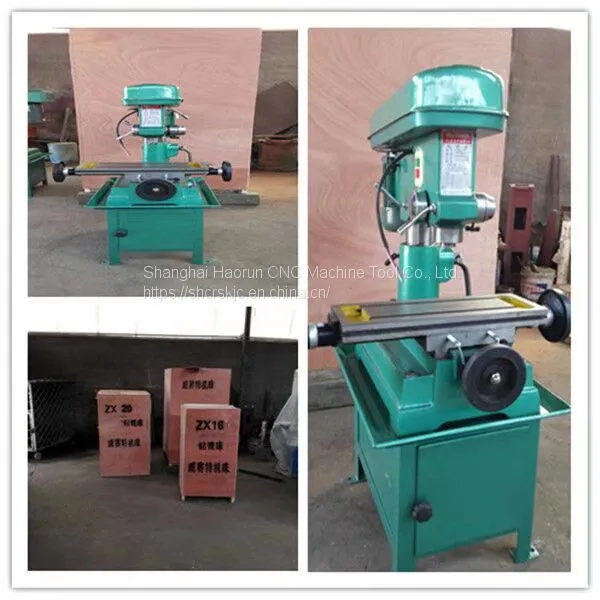

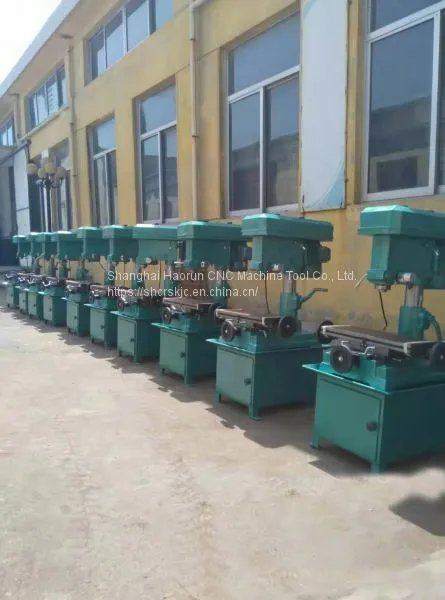

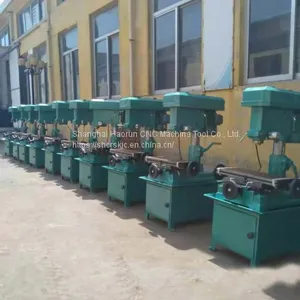

Zx-20/16 drilling and milling machine
- 1 Box / Boxes per Month
- qingdao
- T/T PayPal Other
- 15 days
Product Details
Brand Name: | Yurun | Place of Origin: | China | Model Number: | ZX-20 |
Type: | Vertical | After-sales Service Provided: | No overseas service provided | Weight: | 184kg |
Dimension(L*W*H): | 710 ×680 ×620 | Voltage: | 220 | Condition: | New |
Power(W): | 550 | CNC or Not: | Normal |
Product Description
ZX20 drilling and milling machine is affordable, data guarantee, product introduction:
Structural features
The machine structure consists of nine main components: bed, base, triangle, table and slide, sliding arm swivel, milling head, cooling and lubrication, electrical system and so on.
The main motor is installed in the lower abdomen of the bed, and the bed is mounted on the base. Through a pair of V-belt pulleys, it is transmitted to the I-axis and enters the bed gear box. After six pairs of gears are transmitted to the main shaft, the front end of the main shaft is a Mohs No. 4 taper hole. The end milling cutter shank can also be arranged, and the arbor can also be arranged. The other end of the long shank is supported in the bearing hole of the pylon, and the shank bracket is mounted on the dovetail rail of the sliding arm.
use:
Suitable for all kinds of small and medium-sized parts processing, especially non-ferrous metal materials; plastic; nylon cutting, with simple structure, flexible operation, etc., widely used in single or batch mechanical manufacturing; instrument industry; architectural decoration and repair department.
The drilling and milling machine is a small and medium-sized general-purpose metal cutting machine that can be used for both horizontal and vertical milling.
It is suitable for drilling, expanding, reaming, boring and hole machining; for example, wafer milling machines, angle milling cutters, forming milling cutters and end milling cutters, which can be used to mill planes, bevels, vertical faces and grooves.
It can be used as a multi-directional milling operation after the attachment of the vertical milling head. After attaching the accessory indexing head, it can be used for milling of straight teeth, bevel gears and helical teeth with the number m=3 mm or less.
(Model)Specifications | ZX-20 |
Drilling capacity(mm) | 20 |
Max.vertical milling dia.(mm) | 12 |
Max.horizontal milling dia.(mm) | 50 |
Max.tapping dia.(mm) | M10 |
Spindle taper | MT2 |
Spindle travel(mm) | 100/4 |
Distance spindle axis to column(mm) | 200 |
Columm size(mm) | Φ78 |
Distance spindle end to table working(mm)) | 70-410 |
Table size(mm) | 500×200 |
Table travel(mm)(Longitudinal x Transverst)(mm) | 300×150 |
Body travel(mm/) | 250/10 |
Spindle speeds series | 12 |
Spindle speeds range(r.p.m) | 250-3200 |
Motor(KM) | 550 |
N.W./G.W(kg) | 160/184 |
Packing dimensions(mm) | 710 ×680 ×620640×490×430 |
