Home > Products > cnc lathe machine > ck6136 CNC lathe|Horizontal CNC lathe 6136

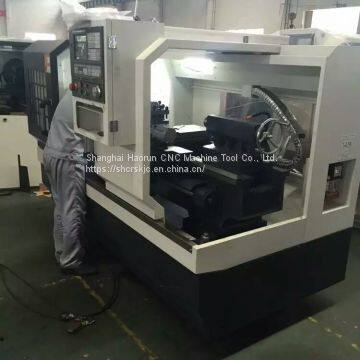

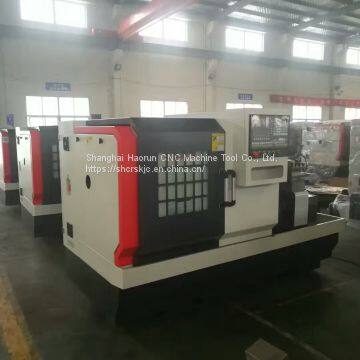

ck6136 CNC lathe|Horizontal CNC lathe 6136
USD $7725 - $7745
/ Box
1 Box(Min.Order)
- 1 Box / Boxes per Month
- qingdao
- T/T PayPal Other
- 25 days
You May Like
-
4HW turret milling machine
-
GB4230 metal band sawing machine|Horizontal metal band sawing machine
-
vmc650 CNC machining center|CNC machining center 650
-
6140 lathe machine|manual lathe machine
-
Zx6350 drilling and milling machine|6350 drilling and milling machine
-
milling machine H5|verticalVertical turret milling machine
Product Details
| Brand Name | Yurun | Place of Origin | China | |
| Model Number | ck6136 | Type | Horizontal | |
| After-sales Service Provided | No overseas service provided | Weight | 1500/2000 | |
| Dimension(L*W*H) | 2500/3000X1500X1650 | Voltage | 220 | |
| Condition | New | Power(W) | 5500 | |
| Automatic Grade | Semi-Automatic | CNC or Not | CNC | |
| Max. Swing Diameter | 360 |
Product Description
The main performance characteristics：
Widening high stability bed Two gear spindle speed,stepless in gearWider layor boardIntergrated automatic lubrication system
Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
Product main technical Specifications:
| Specifications | Unit | CK6136 |
| Max.swing over bed | mm | Ф360 |
| Max.swing over cross slide | mm | Ф150 |
| Distance between centers | mm | 1000/1500 |
| X/Z axis travel | mm | X:220 Z:1050/1600 |
| Spindle transmission type | Mechanical 2 gear transmission ,in gear variable speed | |
| Spindle speed steep | variable | |
| Spindle speed | rpm | L:70～560，H:200～1600 |
| Spindle nose | C6 | |
| Thru-hole dia.of spindle | mm | 52 |
| Spindle taper | MT6 | |
| Spindle motor | KW | 5.5 |
| Chuck size | mm | 200 |
| Ball screw dia.and pitch | mm | φ25X6/φ40X8 |
| X/Z axis feed motor torque | N.m | X:6 Z:10 |
| X/Z axis feed motor power | KW | X:1.5 Z:2.5 |
| X/Z axis fast moving speed | mm/min | X:6000 Z:8000 |
| X/Z axis Position accuracy | mm | 0.02/0.025 |
| X/Z axis repeatability | mm | 0.01/0.015 |
| Processing accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | |
| Tailstock sleeve dia. | mm | 65 |
| Tailstock sleeve travel | mm | 140 |
| Tailstock sleeve taper | # | MT4 |
| Guide form | Spindle mountain+flat rail | |
| Total power capacity | KVA | 10 |
| Machine dimension(L×W×H） | mm | 2500/3000X1500X1650 |
| N.W. | kg | 1500/2000 |
