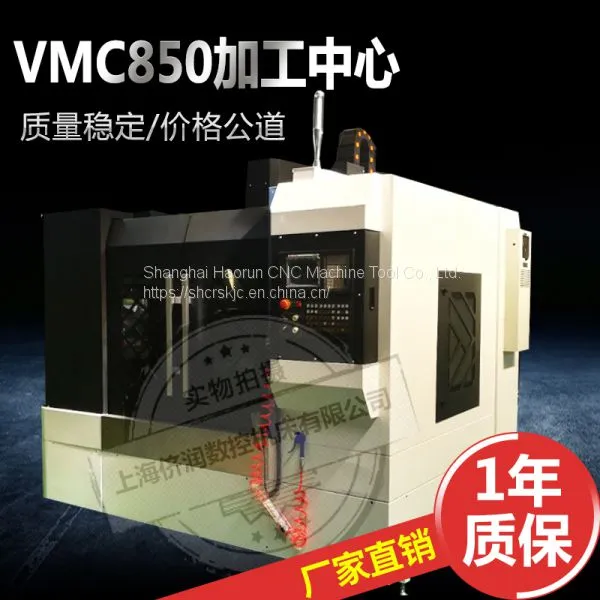

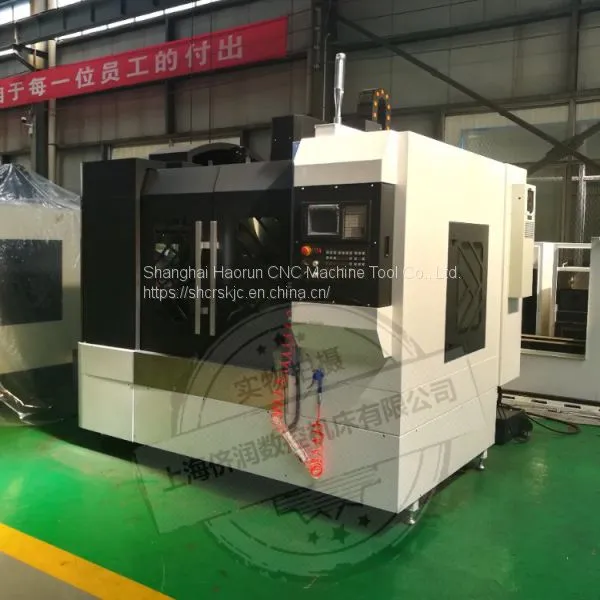

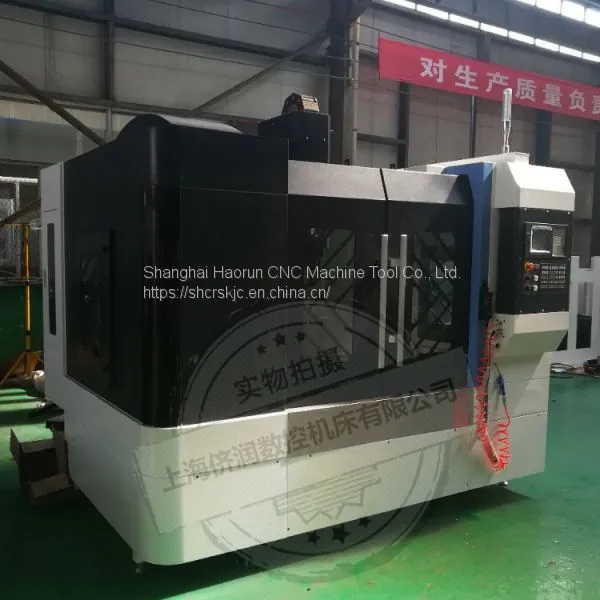

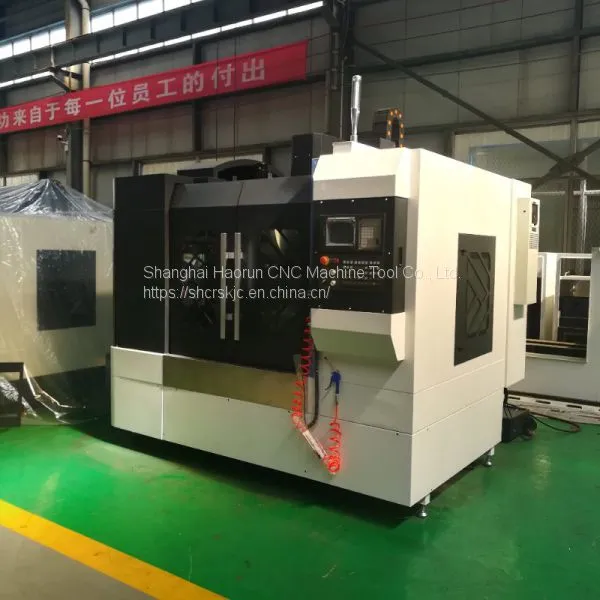

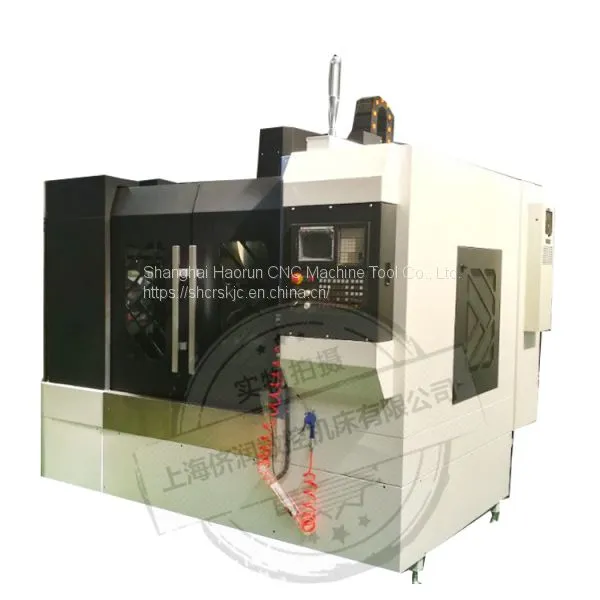

vmc850 CNC machining center|850 Vertical Machining Center

Table size

mm

1000x500

X axis travel

mm

800

Y axis travel

mm

500

Z axis travel

mm

500

Distance between spindle

center and column surface

mm

571

Distance between spindle nose

and table surface

mm

150-650

T slot

3-18*90

Spindle taper

mm

BT40

Max. spindle speed

r/min

8000(10000 optional)

Main motor power

kw

7.5

X/Y/Z axis servo motor torque

N.M

15/15/18

X/Y/Z motor connection

direct

X/Y/Z guide rail form

3 axis linear guide rail

Max.table load

kg

500

Automatic tools changer

16 Armless type(optional:24 arm type)

Max.tool weight

kg

8

Max. tool length

mm

250/350

Max. tool diameter

mm

100(Adjacent)/150(Apart)

X/Y/Z axis rapid traverse

M/min

24/24/20

Cutting feed speed

M/min

10

Position accuracy

mm

±0.005

Repeat positioning accuracy

mm

±0.003

Machine dimension

mm

2800x2300x2700

Machine weight

kg

5500
