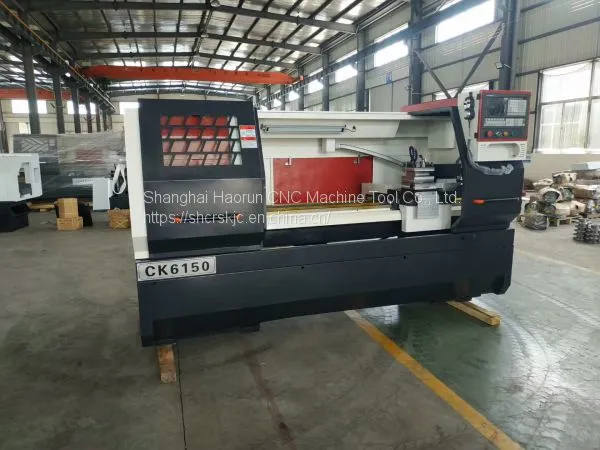

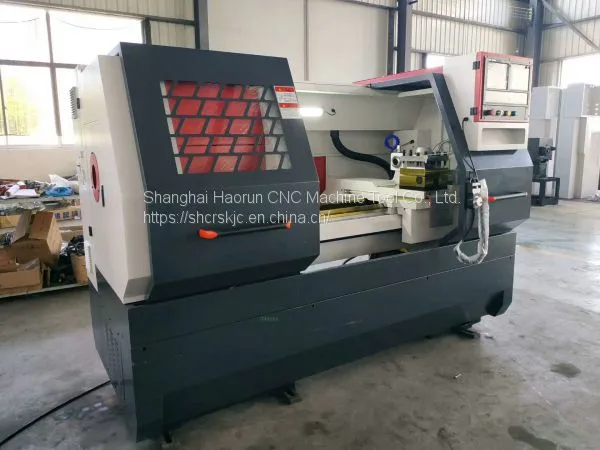

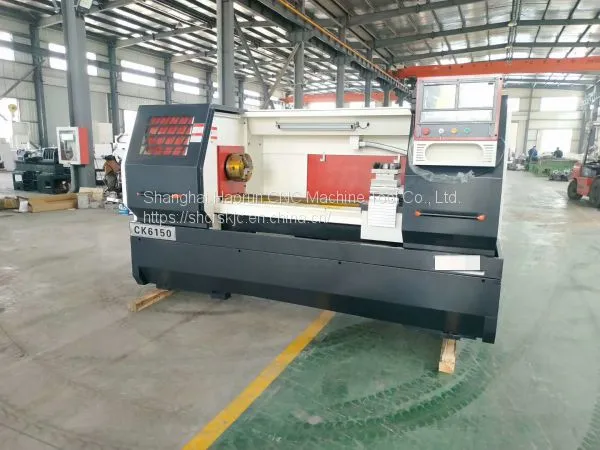

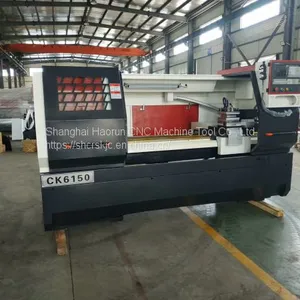

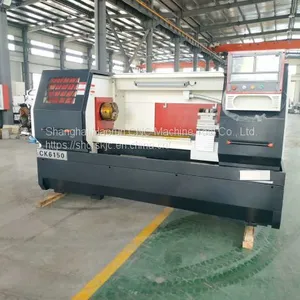

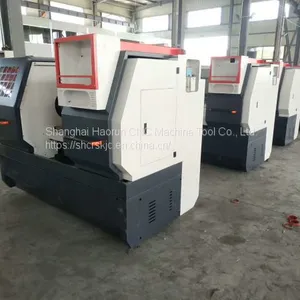

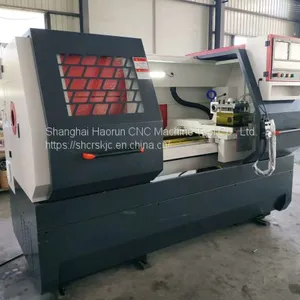

ck6150 CNC lathe|Horizontal CNC lathe
US$ 8071 - 85035
/ Box
1 Box(Min. Order)
- qingdao
- PayPal Other
- 25 days
You May Like
Product Details
| Brand Name | Yurun | Place of Origin | China | |
| Model Number | ck6150 | Type | Horizontal | |
| After-sales Service Provided | No overseas service provided | Weight | 2000/2500 | |
| Dimension(L*W*H) | 2500/3000X1500X1650 | Voltage | 220 | |
| Condition | New | Power(W) | 7500 | |
| Automatic Grade | Semi-Automatic | CNC or Not | Normal |
Product Description
The main performance characteristics：
Widening high stability bed Two gear spindle speed,stepless in gearWider layor boardIntergrated automatic lubrication system
Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
Product main technical Specifications:
| Specifications | Unit | CK6150 |
| Max.swing over bed | mm | Ф500 |
| Max.swing over cross slide | mm | Ф280 |
| Distance between centers | mm | 1000/1500 |
| X/Z axis travel | mm | X:220 Z:1050/1600 |
| Spindle transmission type | Mechanical 2 gear transmission ,in gear variable speed | |
| Spindle speed steep | variable | |
| Spindle speed | rpm | L:70～560，H:200～1600 |
| Spindle nose | C6 | |
| Thru-hole dia.of spindle | mm | 52 |
| Spindle taper | MT6 | |
| Spindle motor | KW | 7.5 |
| Chuck size | mm | 250 |
| Ball screw dia.and pitch | mm | φ25X6/φ40X8 |
| X/Z axis feed motor torque | N.m | X:6 Z:10 |
| X/Z axis feed motor power | KW | X:1.5 Z:2.5 |
| X/Z axis fast moving speed | mm/min | X:6000 Z:8000 |
| X/Z axis Position accuracy | mm | 0.02/0.025 |
| X/Z axis repeatability | mm | 0.01/0.015 |
| Processing accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | |
| Tailstock sleeve dia. | mm | 75 |
| Tailstock sleeve travel | mm | 140 |
| Tailstock sleeve taper | # | MT5 |
| Guide form | Spindle mountain+flat rail | |
| Total power capacity | KVA | 10 |
| Machine dimension(L×W×H） | mm | 2500/3000X1500X1650 |
| N.W. | kg | 2000/2500 |
