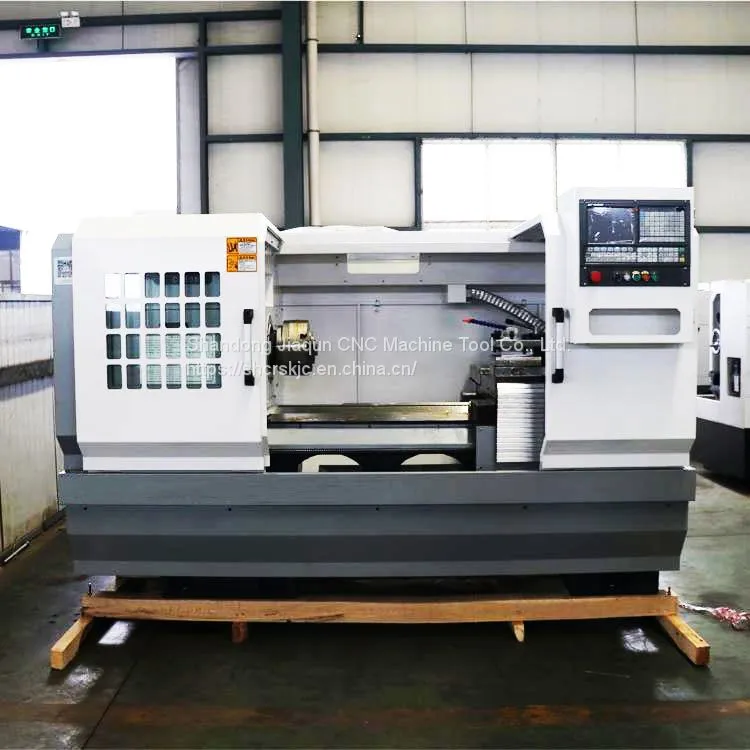

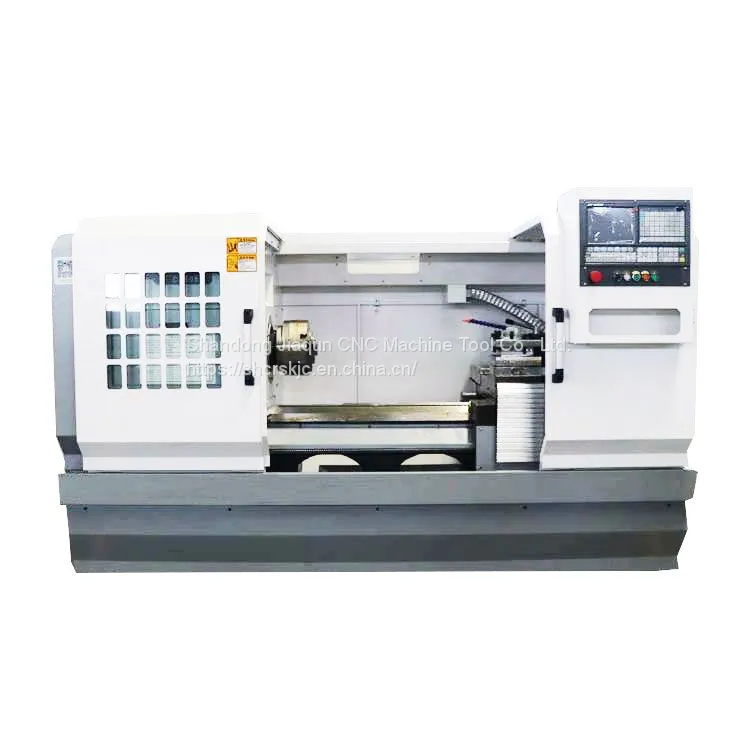

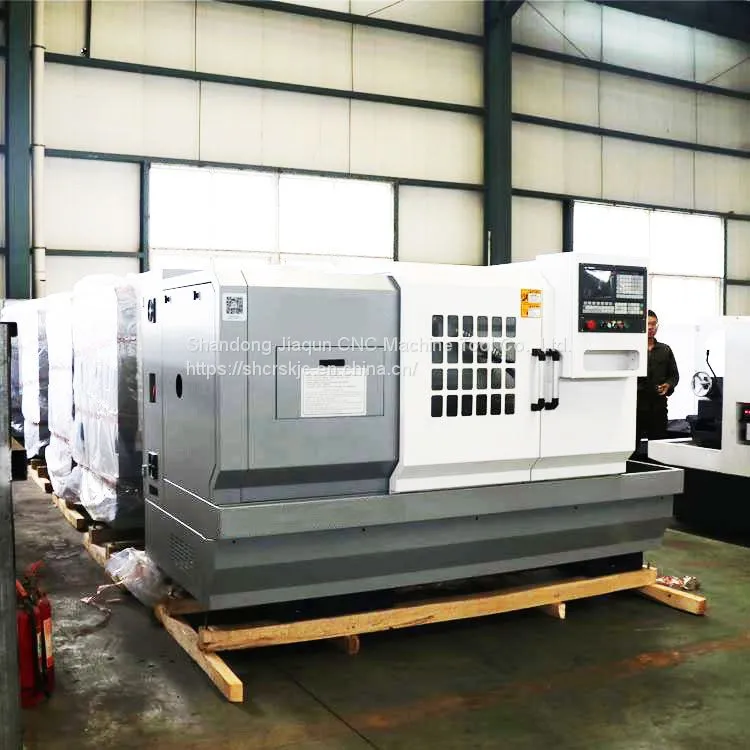

Metal CNC Lathe Machine|2 Axis CNC Lathe|horizontal Flat Bed CNC Lathe
US$ 7725 - 7745
MOQ: 1 Box
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
25 days
Related Products
-
Horizontal CNC Lathe|flat Bed CNC Lathe|cnc Torno|CNC Turning MachineNegotiableMOQ: 1 Box -
Ck6140 CNC LatheNegotiableMOQ: 1 Box
-
Flat CNC Lathe|Horizontal CNC LatheUS$ 8071 - 85035MOQ: 1 Box
-
Ck6140 CNC Lathe|Horizontal CNC Lathe 6140US$ 7785 - 7865MOQ: 1 Box
-
Ck6136 CNC Lathe|Horizontal CNC Lathe 6136US$ 7725 - 7745MOQ: 1 Box
The main performance characteristics：

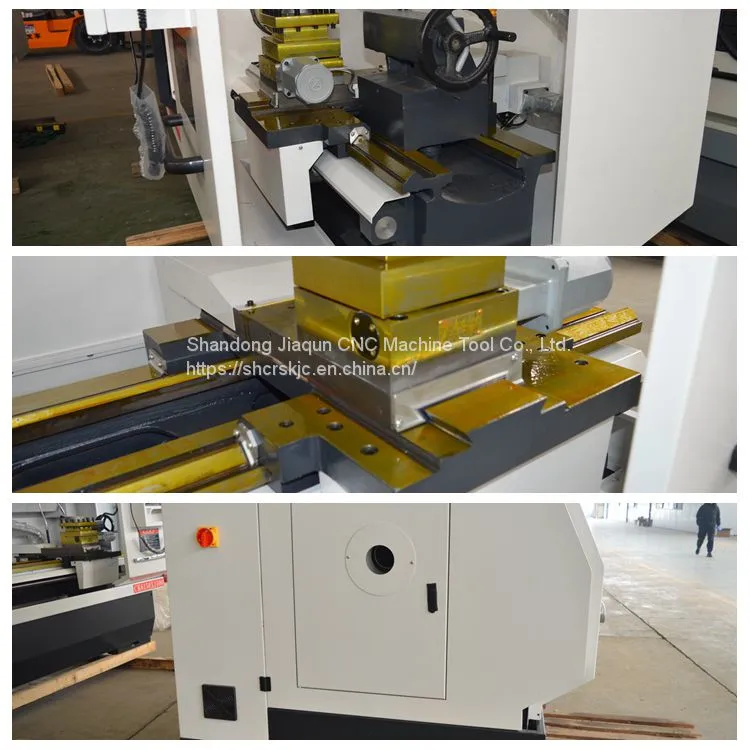

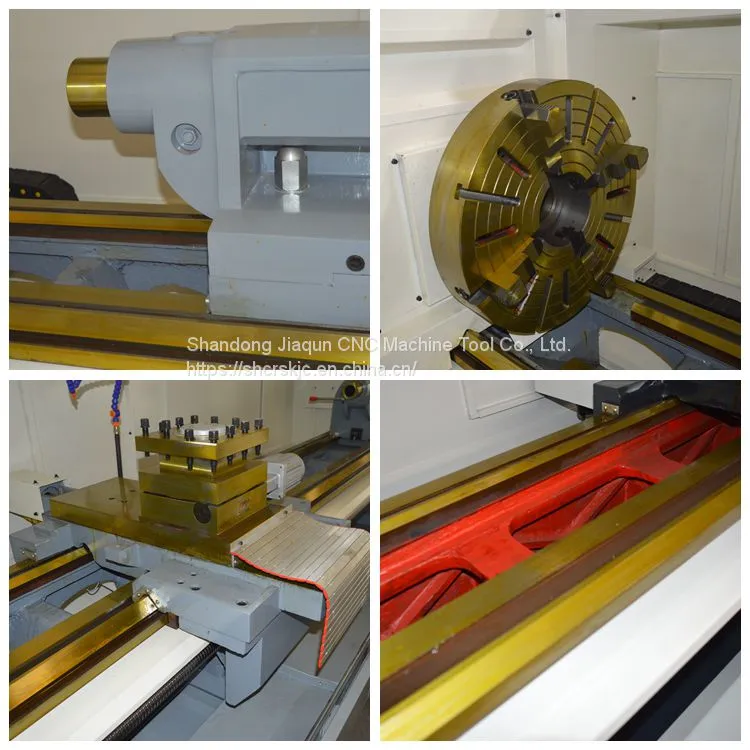

Widening high stability bed Two gear spindle speed,stepless in gearWider layor boardIntergrated automatic lubrication system
Application：
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
Product main technical Specifications:
| Specifications | Unit | CK6136 |
| Max.swing over bed | mm | Ф360 |
| Max.swing over cross slide | mm | Ф150 |
| Distance between centers | mm | 1000/1500 |
| X/Z axis travel | mm | X:220 Z:1050/1600 |
| Spindle transmission type | Mechanical 2 gear transmission ,in gear variable speed | |
| Spindle speed steep | variable | |
| Spindle speed | rpm | L:70～560，H:200～1600 |
| Spindle nose | C6 | |
| Thru-hole dia.of spindle | mm | 52 |
| Spindle taper | MT6 | |
| Spindle motor | KW | 5.5 |
| Chuck size | mm | 200 |
| Ball screw dia.and pitch | mm | φ25X6/φ40X8 |
| X/Z axis feed motor torque | N.m | X:6 Z:10 |
| X/Z axis feed motor power | KW | X:1.5 Z:2.5 |
| X/Z axis fast moving speed | mm/min | X:6000 Z:8000 |
| X/Z axis Position accuracy | mm | 0.02/0.025 |
| X/Z axis repeatability | mm | 0.01/0.015 |
| Processing accuracy | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | |
| Tailstock sleeve dia. | mm | 65 |
| Tailstock sleeve travel | mm | 140 |
| Tailstock sleeve taper | # | MT4 |
| Guide form | Spindle mountain+flat rail | |
| Total power capacity | KVA | 10 |
| Machine dimension(L×W×H） | mm | 2500/3000X1500X1650 |
| N.W. | kg | 1500/2000 |
