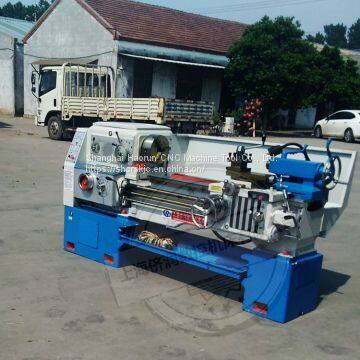

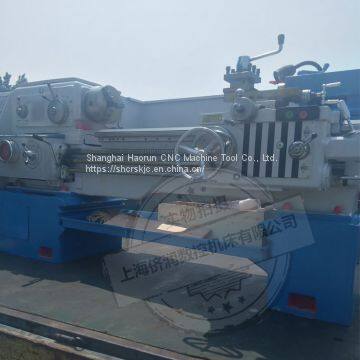

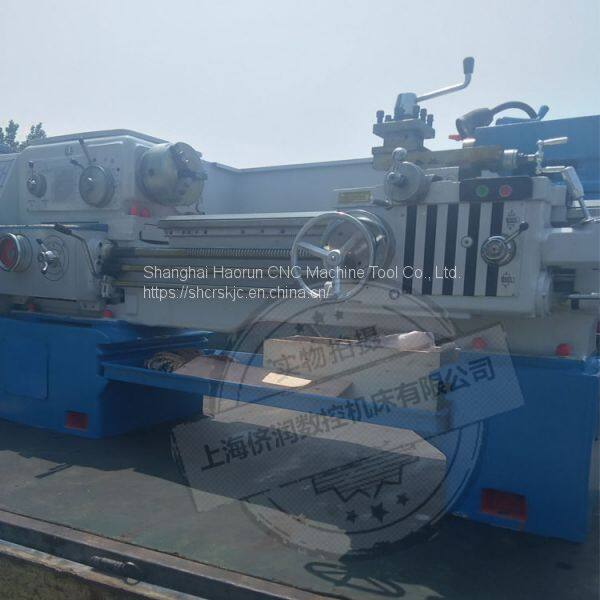

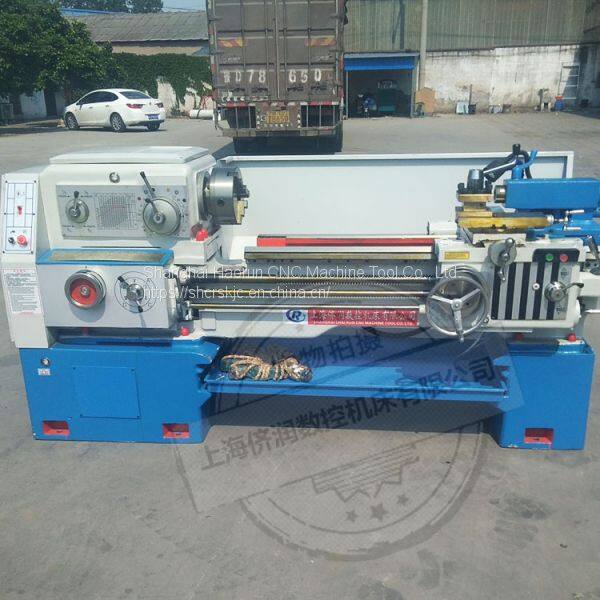

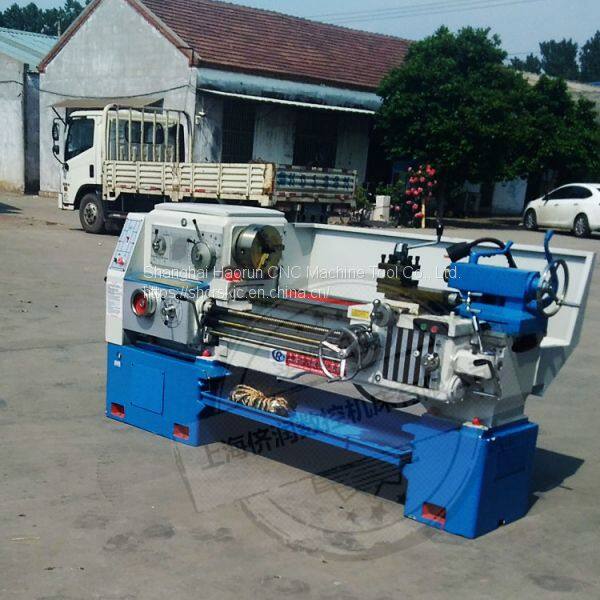

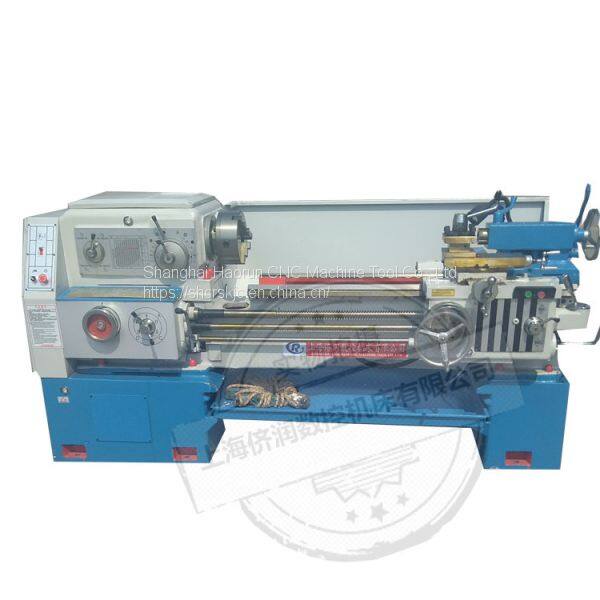

c6140 lathe machine|Horizontal lathe 6140

FOB Price

US$ 6050 - 6150 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yurun	Place of Origin	China
Model Number	c6140	Type	Horizontal
After-sales Service Provided	No overseas service provided	Weight	1600kg
Dimension(LWH)	2100×1150×1550mm	Voltage	220
Condition	New	Automatic Grade	Manual
CNC or Not	Normal	Max. Swing Diameter	400

Product description:

1.Bed rail by super audio quenching and precision grinding.

2.Precision grinding of the main shaft box, low noise.

3.More thread type.

4.Electrical safety performance is good, high reliability.

5.With electromagnetic brake, the color of available options.

Product main technical Specifications:

Specifications		C6140
Capacity	Max.Swing over bed	400mm
	Max. rotating diameter	238mm
	Center distance	750、1000、1500、2000mm
	Spindle hole	52mm(80mm)
Spindle	Spindle nose	ISO-C6(C8)
	Spindle tap	MT6
	Spindle speeds(Number)	36-1400rpm (9 Steps)
Feed	Metric threads range（Kinds）	0.5-14mm (18 Kinds)
	Inch threads range(Kinds)	2-40/inch (28 Kinds)
	Moudle threads range(Kinds)	0.25-3.5mπ (17 Kinds)
	Compound rest travel	150mm
	Cross slide travel	200mm
	Cross-section size of toolshank	20×20mm2
Tailstock	Dia.of tailstock sleeve	75mm
	Taper of tailstock sleeve	MT5
	Travel of tailstock sleeve	160mm
Main motor power		4/5.5KW
Machine size (LWH mm)	Overall dimensions for750mm	2100×1150×1550mm
	Overall dimensions for1000mm	2350×1150×1550mm
	Overall dimensions for1500mm	2850×1150×1550mm
	Overall dimensions for2000mm	3350×1150×1550mm
Weight(kg)	Weight for 750mm	1600kg
	Weight for 1000mm	1700kg
	Weight for 1500mm	1900kg
	Weight for 2000mm	2100kg
