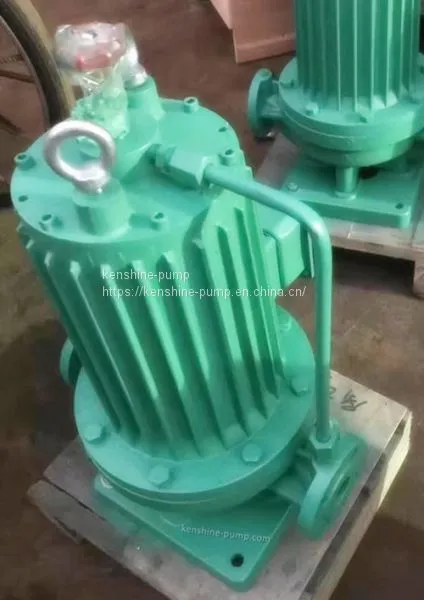

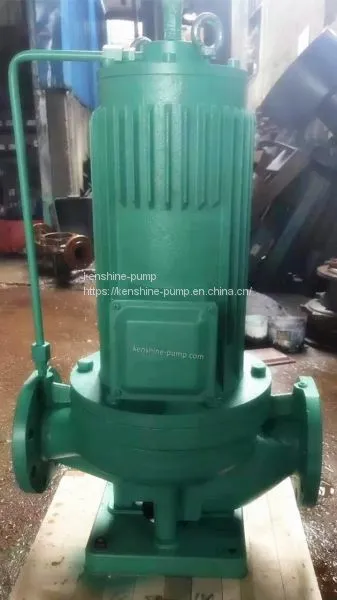

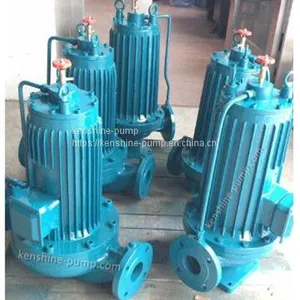

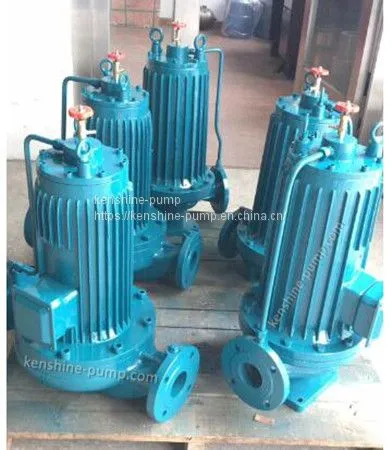

PGB vertical screeded pipeline centrifugal pump
PBG Series screened pipeline centrifugal pump
PBG Series screened pipeline centrifugal pump is manufactured as international technology of the same pumps and motor screen in fluids transport. They are subjected to ISO2858 and JB/T6878.2-93 standard. The pumps have the reasonable structure and steady operation and little noise and no vibration etc. They are often used to substitute normal horizontal and vertical pipeline centrifugal pump. Capacity range is 6.3～1080m3/h and head range is 12.5～125m and motor power is 0.37～160kW and speed is 1450r/min and 2900r/min。
1、PBG series screened pipeline pump are used to transport clear water and other liquids which similar to clear water in physical and chemical characteristic. Liquid temperature is not more than 80℃. Such as industry and city water, boost and supply water for high-building, gardening, fire fighting and warm and cooling circulation etc. Especially for the conditions of no vibration and noise such as pump station underground and air-conditions etc.
2、PBGR series screened pipeline hot water pump is used to transport soft water without grain for hot water boost and circulation in power resource and metallurgy and chemical industry and weave and making paper and city heating circulation in restaurant etc.
Liquid temperature is not more than 160℃
3、PBGP Series screened pipeline corrosion resistance pump is used to transport the corrosive liquids without solid which is similar to water in petroleum and chemical industry and metallurgy and electricity and making paper and food and pharmacy etc.
Parameter:
Model |
Capacity |
Head |
Efficiency |
Speed |
Power |
NPSH® |
Weight |
|
(m3/h) |
(L/s) |
|||||||
PBG40-100 |
6.3 |
1.75 |
12.5 |
54 |
1450 |
0.55 |
3.5 |
32 |
PBG40-100A |
5.6 |
1.56 |
10 |
52 |
1450 |
0.37 |
3.5 |
32 |
PBG40-125 |
6.3 |
1.75 |
20 |
46 |
1450 |
1.1 |
3.5 |
34 |
PBG40-125A |
5.6 |
1.56 |
16 |
45 |
2900 |
0.75 |
3.5 |
33 |
PBG40-160 |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
3.5 |
47 |
PBG40-160A |
5.9 |
1.64 |
28 |
39 |
2900 |
1.5 |
3.5 |
43 |
PBG40-160B |
5.5 |
1.53 |
24 |
38 |
2900 |
1.1 |
3.5 |
38 |
PBG40-200 |
6.3 |
1.75 |
50 |
33 |
2900 |
4.0 |
3.5 |
74 |
PBG40-200A |
5.9 |
1.64 |
44 |
31 |
2900 |
3.0 |
3.5 |
62 |
PBG40-200B |
5.3 |
1.47 |
36 |
29 |
2900 |
2.2 |
3.5 |
52 |
PBG40-250 |
6.3 |
1.75 |
80 |
28 |
2900 |
7.5 |
3.5 |
105 |
PBG40-250A |
5.9 |
1.64 |
70 |
28 |
2900 |
5.5 |
3.5 |
98 |
PBG40-250B |
5.5 |
1.53 |
60 |
27 |
2900 |
4.0 |
3.5 |
77 |
PBG40-100(I) |
12.5 |
3.47 |
12.5 |
62 |
1450 |
1.1 |
3.5 |
34 |
PBG40-100(I)A |
11 |
3.05 |
10 |
60 |
1450 |
0.75 |
3.5 |
31 |
PBG40-125(I) |
12.5 |
3.47 |
20 |
58 |
1450 |
1.5 |
3.5 |
38 |
PBG40-125(I)A |
11 |
3.05 |
16 |
57 |
1450 |
1.1 |
3.5 |
33 |
PBG40-160(I) |
12.5 |
3.47 |
32 |
52 |
2900 |
3.0 |
3.5 |
56 |
PBG40-160(I)A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
3.5 |
47 |
PBG40-160(I)B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
3.5 |
43 |
PBG40-200(I) |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
3.5 |
85 |
PBG40-200(I)A |
11.7 |
3.25 |
44 |
45 |
2900 |
4.0 |
3.5 |
75 |
PBG40-200(I)B |
10.6 |
2.94 |
36 |
44 |
2900 |
3.0 |
3.5 |
63 |
PBG40-250(I) |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
3.5 |
145 |
PBG40-250(I)A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
3.5 |
95 |
PBG40-250(I)B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
3.5 |
94 |
PBG40-250(I)C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
3.5 |
88 |
PBG50-100 |
12.5 |
3.47 |
12.5 |
62 |
1450 |
1.1 |
3.5 |
36 |
PBG50-100A |
11 |
3.05 |
10 |
60 |
1450 |
0.75 |
3.5 |
35 |
PBG50-125 |
12.5 |
3.47 |
20 |
58 |
1450 |
1.5 |
3.5 |
43 |
PBG50-125A |
11 |
3.05 |
16 |
57 |
1450 |
1.1 |
3.5 |
38 |
PBG50-160 |
12.5 |
3.47 |
32 |
52 |
2900 |
3.0 |
3.5 |
59 |
PBG50-160A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
3.5 |
51 |
PBG50-160B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
3.5 |
47 |
PBG50-200 |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
3.5 |
101 |
PBG50-200A |
11.7 |
3.25 |
44 |
45 |
2900 |
4.0 |
3.5 |
80 |
PBG50-200B |
10.6 |
2.94 |
36 |
44 |
2900 |
3.0 |
3.5 |
68 |
PBG50-250 |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
3.5 |
160 |
PBG50-250A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
3.5 |
115 |
PBG50-250B |
10.8 |
3.0 |
60 |
37 |
2900 |
7.5 |
3.5 |
114 |
PBG50-250C |
10.0 |
2.78 |
52 |
36 |
2900 |
5.5 |
3.5 |
108 |
PBG50-100(I) |
25 |
6.94 |
12.5 |
69 |
1450 |
1.5 |
3.8 |
41 |
PBG50-100(I)A |
22.3 |
6.19 |
10 |
67 |
1450 |
1.1 |
3.8 |
36 |
PBG50-125(I) |
25 |
6.94 |
20 |
68 |
1450 |
3.0 |
3.8 |
56 |
PBG50-125(I)A |
22.3 |
6.49 |
16 |
66 |
1450 |
2.2 |
3.8 |
48 |
PBG50-160(I) |
25 |
6.94 |
32 |
63 |
1450 |
4.0 |
3.8 |
72 |
PBG50-160(I)A |
23.4 |
6.5 |
28 |
62 |
1450 |
4.0 |
3.8 |
71 |
PBG50-160(I)B |
21.6 |
6.0 |
24 |
58 |
1450 |
3.0 |
3.8 |
59 |
PBG50-200(I) |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
3.8 |
108 |
PBG50-200(I)A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
3.8 |
107 |
PBG50-200(I)B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
3.8 |
100 |
PBG50-250(I) |
25 |
6.94 |
80 |
50 |
2900 |
15.0 |
3.8 |
175 |
PBG50-250(I)A |
23.4 |
6.5 |
70 |
50 |
2900 |
11.0 |
3.8 |
165 |
PBG50-250(I)B |
21.6 |
6.0 |
60 |
48 |
2900 |
11.0 |
3.8 |
165 |
PBG50-315(I) |
25 |
6.94 |
125 |
40 |
2900 |
30.0 |
3.8 |
310 |
PBG50-315(I)A |
23.7 |
6.58 |
113 |
40 |
2900 |
22.0 |
3.8 |
245 |
PBG50-315(I)B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
3.8 |
215 |
PBG50-315(I)C |
20.6 |
5.72 |
85 |
38 |
2900 |
15.0 |
3.8 |
195 |
PBG65-100 |
25 |
6.94 |
12.5 |
69 |
1450 |
1.2 |
3.8 |
46 |
PBG65-100A |
22.3 |
6.19 |
10 |
67 |
1450 |
1.1 |
3.8 |
41 |
PBG65-125 |
25 |
6.94 |
20 |
68 |
1450 |
3.0 |
3.8 |
58 |
PBG65-125A |
22.3 |
6.19 |
16 |
66 |
1450 |
2.2 |
3.8 |
49 |
PBG65-160 |
25 |
6.94 |
32 |
63 |
1450 |
4.0 |
3.8 |
75 |
PBG65-160A |
23.4 |
6.5 |
28 |
62 |
1450 |
4.0 |
3.8 |
75 |
PBG65-160B |
21.6 |
6.0 |
24 |
58 |
1450 |
3.0 |
3.8 |
63 |
PBG65-200 |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
3.8 |
107 |
PBG65-200A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
3.8 |
107 |
PBG65-200B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
3.8 |
100 |
PBG65-250 |
25 |
6.94 |
80 |
50 |
2900 |
15.0 |
3.8 |
180 |
PBG65-250A |
23.4 |
6.5 |
70 |
50 |
2900 |
11.0 |
3.8 |
170 |
PBG65-250B |
21.6 |
6.0 |
60 |
49 |
2900 |
11.0 |
3.8 |
170 |
PBG65-315 |
25 |
6.94 |
125 |
40 |
2900 |
30. |
3.8 |
320 |
PBG65-315A |
23.7 |
6.58 |
113 |
40 |
2900 |
22.0 |
3.8 |
255 |
PBG65-315B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
3.8 |
225 |
PBG65-315C |
20.6 |
5.72 |
85 |
38 |
2900 |
15.5 |
3.8 |
205 |
PBG65-100(I) |
50 |
13.9 |
12.5 |
73 |
1450 |
3.0 |
4.2 |
63 |
PBG65-100(I)A |
44.7 |
12.5 |
10 |
72 |
1450 |
2.2 |
4.2 |
53 |
PBG65-125(I) |
50 |
13.9 |
20 |
72.5 |
1450 |
5.5 |
4.2 |
99 |
PBG65-125(I)A |
45 |
12.5 |
16 |
71 |
1450 |
4.0 |
4.2 |
78 |
PBG65-160(I) |
50 |
13.9 |
32 |
71 |
1450 |
7.5 |
4.2 |
103 |
PBG65-160(I)A |
46.7 |
13.0 |
28 |
70 |
1450 |
7.5 |
4.2 |
103 |
PBG65-160(I)B |
43.3 |
12.0 |
24 |
69 |
1450 |
5.5 |
4.2 |
97 |
PBG65-200(I) |
50 |
13.9 |
50 |
67 |
2900 |
15.0 |
4.2 |
176 |
PBG65-200(I)A |
47 |
13.1 |
44 |
66 |
2900 |
11.0 |
4.2 |
166 |
PBG65-200(I)B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
4.2 |
114 |
PBG65-250(I) |
50 |
13.9 |
80 |
59 |
2900 |
22.0 |
4.2 |
235 |
PBG65-250(I)A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
4.2 |
205 |
PBG65-250(I)B |
43.3 |
12.0 |
60 |
58 |
2900 |
15.0 |
4.2 |
180 |
PBG65-315(I) |
50 |
13.9 |
125 |
54 |
2900 |
34.0 |
4.2 |
350 |
PBG65-315(I)A |
46.5 |
12.9 |
110 |
54 |
2900 |
30.0 |
4.2 |
355 |
PBG65-315(I)B |
44.5 |
12.4 |
100 |
53 |
2900 |
30.0 |
4.2 |
335 |
PBG65-315(I)C |
41 |
11.4 |
85 |
51 |
2900 |
22.0 |
4.2 |
270 |
PBG80-100 |
50 |
13.9 |
12.5 |
73 |
1450 |
3.0 |
4.2 |
63 |
PBG80-100A |
44.7 |
12.4 |
10 |
72 |
1450 |
2.2 |
4.2 |
54 |
