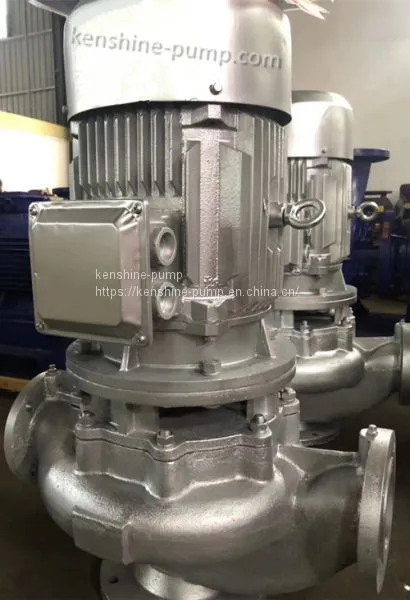

GW Vertical Pipeline Sewage Pump

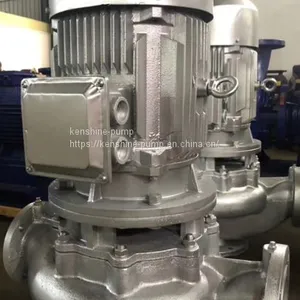

GW Vertical Pipeline Sewage Pump thumbnail-1
GW Vertical Pipeline Sewage Pump thumbnail-2
GW Vertical Pipeline Sewage Pump thumbnail-3
GW Vertical Pipeline Sewage Pump thumbnail-4
GW Vertical Pipeline Sewage Pump thumbnail-5
GW Vertical Pipeline Sewage Pump photo-1
GW Vertical Pipeline Sewage Pump photo-2
GW Vertical Pipeline Sewage Pump photo-3
GW Vertical Pipeline Sewage Pump photo-4
GW Vertical Pipeline Sewage Pump photo-5
US$ 300 - 6000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
80GW-65-25-7.5
Contact Supplier Request Quote Chat Now
Kenshine-pump
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name kenshine-pump
Place of Origin China
Model Number 80GW-65-25-7.5
Application Sewage
Fuel Other, electric motor
Power Electric
Usage Other, sewage discharge
Theory Centrifugal Pump
Standard or Nonstandard Standard
Structure Single-stage Pump
Pressure Low Pressure

GW Vertical pipeline sewage pump is with volute impeller of not clogging.  The structure design and discharge performance of pump body and impeller is the same as the WQ Submersible sewage pump. GW vertical pipeline sewage pump can be use for pipeline booster, drainage water and circulation and can also be used to transport the wastewater with solid grain or fiber etc impurity

Features:

1.. Strong sewage discharge capacity and not clogging

2, reasonable design, supporting motor power is small, energy-saving effect is significant.

3. Wear resistant mechanical seal.

4, compact structure, easy to move, simple installation, no need to build pump room, reduce the cost of the project.

5, able to operate in the full head range and ensure that the motor will not overload.

6. The center line of inlet and outlet is on a straight line, which can be directly installed anywhere in the pipeline.


Application:

Used for wastewater discharge by enterprises

2.. Discharge system of municipal sewage treatment plant.

3. Sewage drainage station in residential area.

4. Subway, basement and drainage station of civil air defense system.

5. Sewage discharge from hospitals, hotels and high-rise buildings.

6. Discharge of thin mud from municipal works and construction sites.

7. Sewage discharge from farms and irrigation of rural farmland.

8, water supply equipment for water plant.

9. Mine exploration and water treatment equipment.

10.Water supply and drainage for water conservancy projects.

Model Flow Head power caliber Speed Efficiency
(m3/h) (M) (kw) mm (r/min) (%)
25GW8-22-1.1 8 22 1.1 25 2900 45
32GW12-15-1.1 12 15 1.1 32 2900 45
40GW15-15-1.5 15 15 1.5 40 2900 48
40GW15-30-2.2 15 30 2.2 40 2900 54
50GW20-7-0.75 20 7 0.75 50 2900 51
50GW10-10-0.75 10 10 0.75 50 2900 52
50GW20-15-1.5 20 15 1.5 50 2900 53
50GW15-25-2.2 15 25 2.2 50 2900 54
50GW18-30-3 18 30 3 50 2900 55
50GW40-15-4 40 15 4 50 2900 55
50GW25-32-5.5 25 32 5.5 50 2900 55
50GW20-40-7.5 50 20 7.5 50 2900 58
65GW25-15-2.2 25 15 2.2 65 2900 50
65GW37-13-3 37 13 3 65 2900 57
65GW25-30-4 25 30 4 65 2900 61
65GW30-40-7.5 30 40 7.5 65 2900 56
65GW35-50-11 35 50 11 65 2900 45
65GW35-60-15 35 60 15 65 2900 65
80GW60-13-5.5 60 13 5.5 80 2900 67
80GW40-7-2.2 40 7 2.2 80 1450 59
80GW43-13-3 43 13 3 80 2900 70
80GW40-15-4 40 15 4 80 2900 61
80GW65-25-7.5 65 25 7.5 80 2900 63
100GW80-10-4 100 10 4 100 1450 65
100GW100-15-7.5 100 15 7.5 100 1450 68
100GW110-10-5.5 110 10 5.5 100 1450 66
100GW80-20-7.5 80 20 7.5 100 1450 65
100GW100-25-11 100 25 11 100 1450 70
100GW100-30-15 100 30 15 100 1450 65
100GW100-35-18.5 100 35 18.5 100 1450 68
125GW130-15-11 130 15 11 125 1450 72
125GW130-20-15 130 20 15 125 1450 75
150GW145-9-7.5 145 9 7.5 150 1450 76
150GW180-15-15 180 15 15 150 1450 69
150GW180-20-18.5 180 20 18.5 150 1450 72
150GW180-25-22 180 25 22 150 1450 78
150GW130-30-22 130 30 22 150 1450 78
150GW180-30-30 180 30 30 150 1450 78
150GW200-30-37 200 30 37 150 1450 73
200GW300-7-11 300 7 11 200 980 66
200GW250-11-15 250 11 15 200 1450 64
200GW250-15-18.5 250 15 18.5 200 1450 73
200GW400-10-22 400 10 22 200 1450 75
200GW400-13-30 400 13 30 200 1450 76
200GW300-15-22 300 15 22 200 1450 76
200GW250-22-30 250 22 30 200 1450 71
200GW350-25-37 350 25 37 200 1450 71
200GW400-30-45 400 30 45 200 1450 74
250GW600-9-30 600 9 30 250 980 78
250GW600-12-37 600 12 37 250 1450 76
250GW600-15-45 600 15 45 250 1450 73
250GW600-20-55 600 20 55 250 1450 73
250GW600-25-75 600 25 75 250 1450 71
300GW800-12-45 800 12 45 300 980 74
300GW480-15-45 480 15 45 300 1450 66
300GW800-15-55 800 15 55 300 1450 73
300GW600-20-55 600 20 55 300 1450 73
300GW800-20-75 800 20 75 300 1450 75
300GW950-20-90 950 20 90 300 1450 76
300GW1000-25-110 1000 25 110 300 1450 76
300GW1100-10-55 1100 10 55 300 1450 73
350GW1500-15-90 1500 15 90 350 740 87
350GW1200-18-90 1200 18 90 350 980 85
350GW1100-28-132 1100 28 132 350 980 84
350GW1000-36-160 1000 36 160 350 980 84
400GW1760-7.5-55 1760 7.5 55 400 980 83
400GW1500-10-75 1500 10 75 400 980 86
400GW2000-13-110 2000 13 110 400 980 84
400GW2000-15-132 2000 15 132 400 980 83
400GW1700-22-160 1700 22 160 400 980 83
400GW1500-26-160 1500 26 160 400 980 84
400GW1800-32-250 1800 32 250 400 980 82
400GW1700-30-200 1700 30 200 400 980 82
