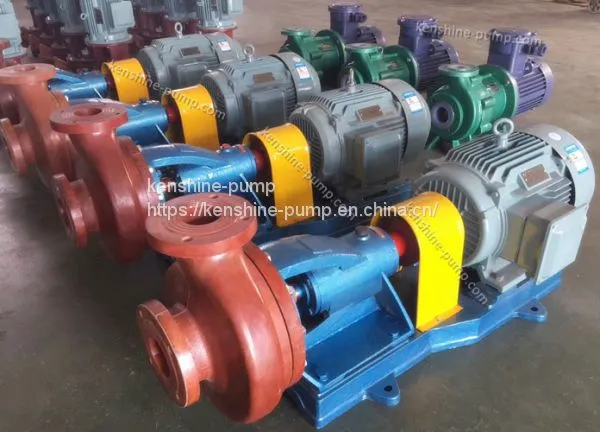

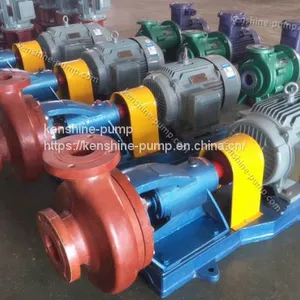

ISR hot water centrifugal pump circulation pump
- 1000 Set / Sets per Month
- Shanghai
- T/T
- 7 days
- ISW Single stage single suction horizontal centrifugal pump close coupling
- FQW pneumatic submersible sewage pump
- WQ,QW Submersible sewage pump non clogging pump
- RY thermal oil centrifugal pump high temperature liquid circulating pump
- PW,PWF Horizontal sewage pump
- FY pneumatic slurry pump pulp pump drum pump
Product Details
Brand Name: | kenshine-pump | Place of Origin: | China | Model Number: | ISR80-50-200 |
Application: | Other, clean water | Fuel: | Other, electric motor | Power: | Electric |
Usage: | Water | Theory: | Centrifugal Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description
IS horizontal single stage end suction centrifugal pump is with back pull structure for easy operation. IS centrifugal pump can be made of cast iron or stainless steel or bronze material according to different liquids and driven by normal motor or explosion proof motor. The pump is used to transfer the water or other similar liquids. Seal type: gland packing seal or mechanical seals. The pumped liquids temperature is no higher than 80 degree C.
ISR horizontal single stage centrifugal pump adopt the anti-high temperature mechanical seal and is used to transfer the hot water with the temperature no higher than 115Degree C.
IS Series single stage single suction end suction horizontal centrifugal pump is the energy-saving pump to substitute BA series and B series single stage clear water centrifugal pump.
Advantages: reasonable hydraulic structure and convenient maintenance and good suction height and high efficiency etc. The pump is suitable for water supply and discharge in industry and city and gardening in farm. It is used to transport clear water and other liquids which is similar to clear water in physical and chemical characteristic. Liquids temperature is not higher than 80℃.
Performance ranges:
Speed: 2800rpm and 1450 rpm
Inlet: 50-200mm
Capacity: 6.3-400m3/h
Head: 5-125m
Parameter:
Model | Capacity | Head | Speed | Power | Caliber mm | |
Inlet | Outlet | |||||
IS50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
IS50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
IS50-32-200 | 12.5 | 50 | 2900 | 0.5 | 50 | 32 |
6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
IS50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
IS65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
IS65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
IS65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
IS65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
IS65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
12.5 | 32 | 1450 | 4 | 65 | 40 | |
IS80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
25 | 5 | 1450 | 0.75 | 80 | 65 | |
IS80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
25 | 8 | 1450 | 1.5 | 80 | 65 | |
IS80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
IS80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
25 | 20 | 1450 | 3 | 80 | 50 | |
IS80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
25 | 32 | 1450 | 5.5 | 80 | 50 | |
IS100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
50 | 5 | 1450 | 1.5 | 100 | 80 | |
IS100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
50 | 8 | 1450 | 2.2 | 100 | 80 | |
IS100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
50 | 12.5 | 1450 | 4 | 100 | 65 | |
IS100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
50 | 20 | 1450 | 5.5 | 100 | 65 | |
IS100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
50 | 32 | 1450 | 11 | 100 | 65 | |
IS125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
IS125-100-250 | 200 | 80 | 2900 | 75 | 125 | 100 |
100 | 20 | 1450 | 11 | 125 | 100 | |
IS125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
100 | 32 | 1450 | 15 | 125 | 100 | |
IS125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
IS150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
IS150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
IS150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
IS200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
IS200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
IS200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
