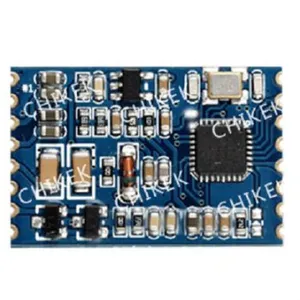

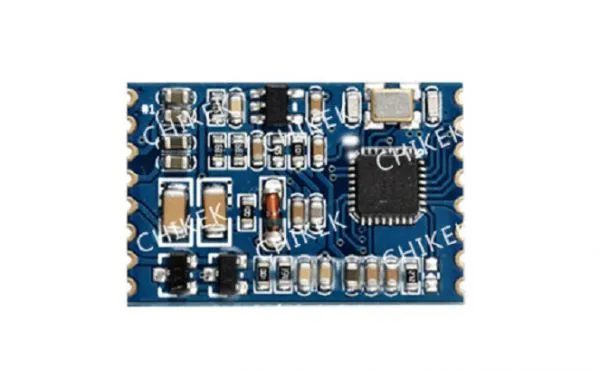

Help Center125KHz Animal Tag RFID Module, HitagS Reader Module, FDX-B Standard, ISO11784/11785
Related Products
-
PSAM Card Reader Writer, CPU Card RFID Module, ISO14443A, UART TTLNegotiableMOQ: 1 Piece -
T5577 ID Card Reader Module, Smart Locker RFID Module, UART TTLNegotiableMOQ: 1 Piece
-
MIFARE DESFire EV2 RFID Module, MIFARE Card RFID Reader Module, ISO14443A/B, ISO15693NegotiableMOQ: 1 Piece
-
UART TTL Interface NFC Tag RFID Module, RFID Reader 13.56MHz MIFARE Card ReaderNegotiableMOQ: 1 Piece
-
LF HitagS Card RFID Module, HitagS 64/HitagS 256/HitagS 2048 Animal Tag Reader, ISO11784/11785, UART TTLNegotiableMOQ: 1 Piece
Key Features:
UART-TTL interface, frequency available with 125KHz, 134.2KHz;
Compatible with ISO11784,11785 Standard, FDX-B protocol;
R/W HitagS 64, HitagS 256, HitagS 2048 tag;
Read only UID of EM4100/4200, TK4100 cards;
Available to format Hitag S series card to ID card or FDX-B animal ear tags format;
External antenna, reading range up to 50~100 mm;
External LED&BUZ available( external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V |
Power consumption |
|
Operation frequency |
125KHz &134.2KHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
UART TTL |
Antenna |
External, stamp-hole |
Reading range |
50- 100mm (depends on tag and antenna size) |
Mechanical Specifications |
|
Dimension |
25mmx16.5mmx2.8mm (LxWxH) |
Weight |
3g |
Material |
FR-4, Blue |
Model |
CHK101MT |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
EM4100,EM4200, TK4100 |
|
ISO/IEC 11784/11785 |
Hitag S 64, Hitag S 256, Hitag S 2048 |
SDK information |
|
Demo software |
Windows, C# program language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgraded
