JMZ,FMZ Stainless Steel Self Priming Alcohol Pump
US$ 650 - 6000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
50JMZ-22
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
CYZ Self Priming Centrifugal Oil Transfer Pump Explosion ProofUS$ 600 - 10000MOQ: 1 Set -
ZW Self Priming Sewage Pump Shaft Coupling /closed CouplingUS$ 300 - 10000MOQ: 1 Set
-
FPZ Polypropylene Self Priming Centrifugal PumpUS$ 150 - 3000MOQ: 1 Set
-
ZX Self Priming Centrifugal PumpUS$ 300 - 10000MOQ: 1 Set
-
ZW Self Priming Sewage Drainage Pump for WastewaterUS$ 300 - 10000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
50JMZ-22
Application
Other, drinks,beverage etc food liquids
Fuel
Other, electric motor
Power
Electric
Usage
Other, alcohol,drinks,beverage etc delivery
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
Low Pressure

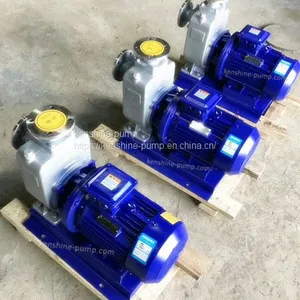

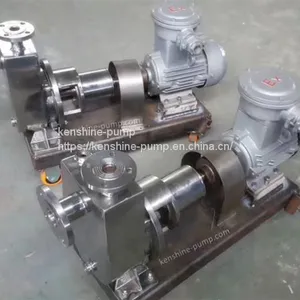

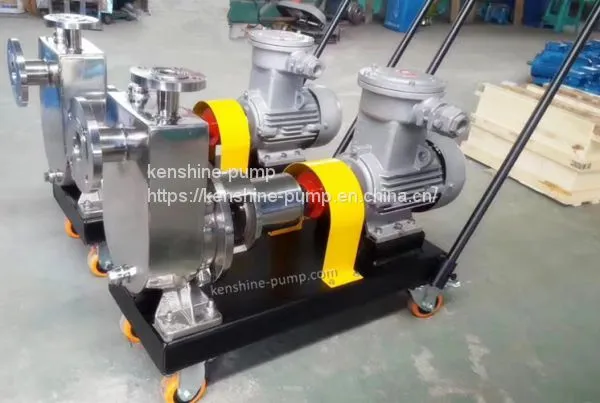

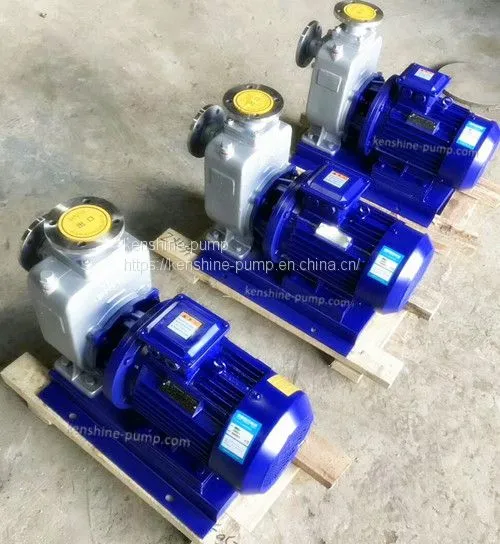

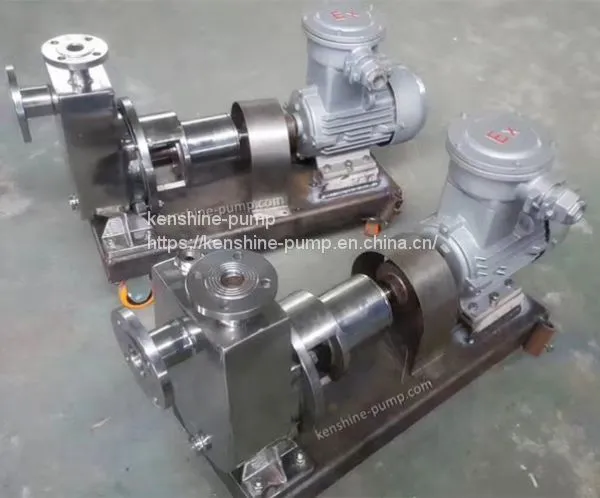

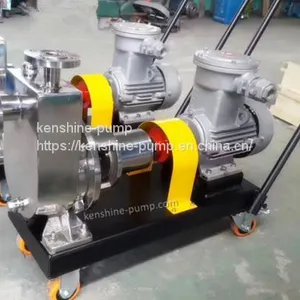

JMZ mobile self priming pump adopts new mechanical seal assembly, safe and explosion-proof, no leakage for a long time. JMZ mobile self priming pump is suitable for conveying all kinds of wine, beverage, dairy, pharmaceutical, gasoline, solvent oil, syrup etc at the temperature from -35 to 120 degree Celsius. This pump has the characteristics of compact structure, easy operation, small volume, light weight, stable performance, no bottom valve, no filling water when starting etc. This pump can be used to transport concentrated slurry, acid, alkali, salt and other liquids after replacing 3-4 parts.
The pump performance range: flow of 3m3/h-200m3/h, head of 15m-60m, diameter of 25mm-2000mm
Technical sheet:
| Model | Inlet(mm) | outlet(mm) | Flow rate(m3/h) | Head(m) | Suction height(m) | Speed(rpm) |
| 25JMZ-22 | 25 | 25 | 3 | 22 | 5 | 2900 |
| 25JMZ-30 | 25 | 25 | 3 | 30 | 6 | 2900 |
| 40JMZ-22 | 40 | 25 | 6 | 22 | 5 | 2900 |
| 40JMZ-30 | 40 | 25 | 6 | 30 | 6 | 2900 |
| 40JMZ-40 | 40 | 25 | 6 | 40 | 6 | 2900 |
| 50JMZ-22 | 50 | 40 | 12 | 22 | 5 | 2900 |
| 50JMZ-30T | 50 | 50 | 20 | 30 | 6 | 2900 |
| 50JMZ-40 | 50 | 40 | 12 | 40 | 6 | 2900 |
| 65JMZ-22 | 65 | 50 | 24 | 22 | 5 | 2900 |
| 65JMZ-30T | 65 | 65 | 30 | 30 | 6 | 2900 |
| 80JMZ-22 | 80 | 65 | 48 | 22 | 5 | 2900 |
| 80JMZ-30 | 80 | 65 | 48 | 30 | 6 | 2900 |
| 100JMZ-22 | 100 | 80 | 80 | 22 | 5 | 2900 |
| 100JMZ-30 | 100 | 80 | 100 | 30 | 5 | 2900 |
| 150JMZ-22 | 150 | 125 | 160 | 22 | 5 | 2900 |
| 150JMZ-30 | 150 | 125 | 160 | 30 | 5 | 2900 |
| 200JMZ-22 | 200 | 150 | 200 | 22 | 5 | 1450 |
| 200JMZ-30 | 200 | 150 | 200 | 30 | 5 | 1450 |
