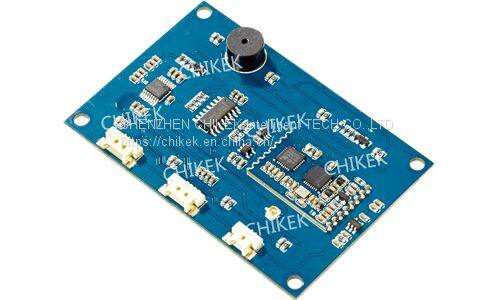

Help Center13.56MHz 4PSAM RFID Reader, CPU Card Reader Writer Module, ISO7816, UART TTL or RS232
Related Products
-
UART TTL T5577 Card Access Control Reader Module, 125KHz&134.2KHzNegotiableMOQ: 1 Piece -
External TTL MIFARE DESFire RFID Module, DESFire EV1/EV2 Reader Module 13.56MHzNegotiableMOQ: 1 Piece
-
External TTL MIFARE Card Reader Module, NFC NTAG RFID Module, ISO14443A, 13.56MHzNegotiableMOQ: 1 Piece
-
13.56MHz Android Portable Smart Card RFID Reader Module With ISO14443A, 3.3V~5VNegotiableMOQ: 1 Piece
-
ISO7816 PSAM Card Reader Writer Module, Dual Interface RFID Reader Module, UART TTLNegotiableMOQ: 1 Piece
Key Features:
DC3.3V ~5V power supply, RS232 or UART-TTL;
Compliant with ISO14443A/B, ISO15693, ISO7816 T=0 PSAM card standard;
R/W MIFARE® Classic 1K /4K, MIFARE Ultralight®/Ultralight® C,MIFARE® DESFire®, ISO14443A-4 contactless CPU card, I CODE SLI, etc;

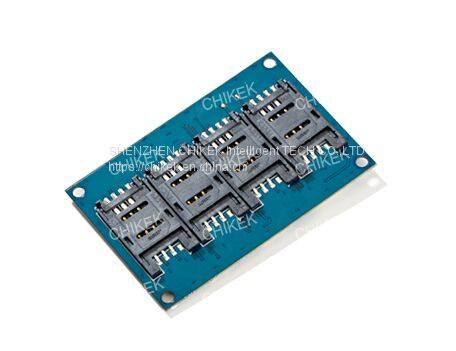

Internal with 4 PSAM socket;
External antenna with 1.25 2P connector/IPX, reading range up to 5~7 cm;
Internal BUZ available for indication.
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
|
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default115200bps) |
Interface |
UART TTL or RS232 |
Antenna |
External with 1.25 2P connector or IPX |
Reading range |
50- 70mm (depends on tag and antenna size) |
Mechanical Specifications |
|

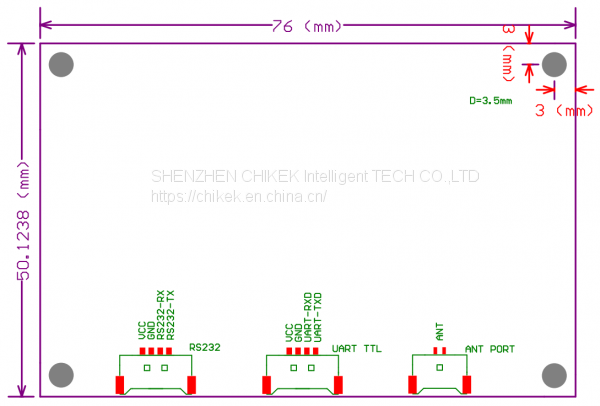

Dimension |
76mmx50mmx2.8mm (LxWxH) |
Weight |
10g |
Material |
FR-4, Blue |
Model |
CHK362MT |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
|
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
|
|
ISO14443 A |
Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE® DESFire®EV1/EV2/EV3, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
ISO7816 |
PSAM T=0, T=1 standard |
SDK information |
|
Demo software |
WINDOWS, C# program language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
