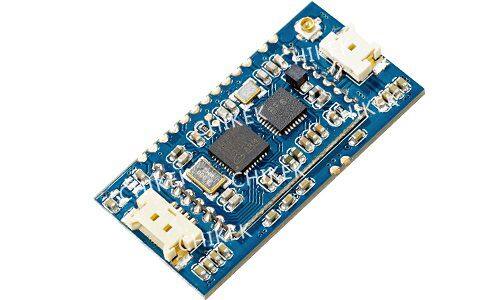

Help Center13.56MHz External TTL Multi Protocol RFID Read/Write Module, ISO14443A/B, ISO15693
Related Products
-
13.56MHz 4PSAM RFID Reader, CPU Card Reader Writer Module, ISO7816, UART TTL or RS232NegotiableMOQ: 1 Piece -
UART TTL T5577 Card Access Control Reader Module, 125KHz&134.2KHzNegotiableMOQ: 1 Piece
-
External TTL MIFARE DESFire RFID Module, DESFire EV1/EV2 Reader Module 13.56MHzNegotiableMOQ: 1 Piece
-
External TTL MIFARE Card Reader Module, NFC NTAG RFID Module, ISO14443A, 13.56MHzNegotiableMOQ: 1 Piece
-
13.56MHz Android Portable Smart Card RFID Reader Module With ISO14443A, 3.3V~5VNegotiableMOQ: 1 Piece
Key Features:
DC3.3V ~5V power supply, UART-TTL interface,lower power consumption;
Compliant with ISO14443A/B, ISO15693 standard;
Support MIFARE® Classic 1K /4K, MIFARE Ultralight®/Ultralight® C,MIFARE® PRO, ISO14443A-4 contactless CPU card, I CODE SLI, TI 2048, etc;
External antenna, reading range up to 5 ~ 7cm;

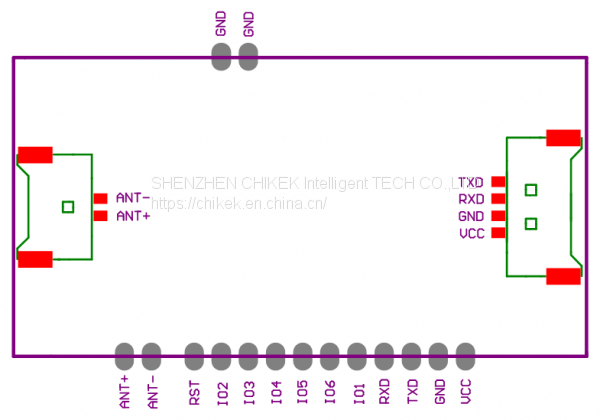

Connection way available with stamp-holes or 1.25mm Pitch Molex connection;
External LED and BUZ available (external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
Max current： |
Operation frequency |
13.56MHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
UART TTL |
Antenna |
External, UFL/Molex connector, or stamp hole |
Reading range |
Up to 4 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
22mmx42mmx3mm (LxWxH) |
Weight |
5g |
Material |
FR-44, Blue |
Model |
CHK321MT |
Environmental Conditions |
|
Operation temperature |
-20°C～ +80°C |
|
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
ISO14443 A |
Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
