Brief Introduction:

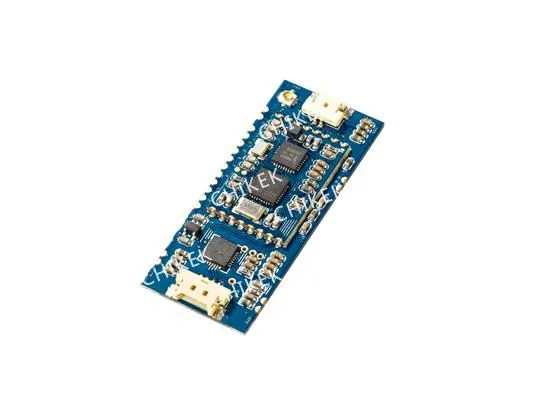

CHK37xMK, a series of RFID Reader Module for Read only UID of all different type of cards, which optional in standard of ISO11784/11785, ISO14443A/B, ISO15693 and ISO18000-6C.
This series of products equips with HID driverless port, and the data output as HID-keyboard emulation, which can be read in text, word, excel or any other files can be inserted words.
The modules not only support to read card’s UID number, but also can read data in specific blocks or pages.
All models in this series product are in same size and same pin-to-pin connection, which enable to easily switch for different cards supported demand, without change on the main board on existing systems.
Key Features:
DC 3.3V~ 5V power supply, HID-Keyboard interface;
Compliant with ISO11784/11785, or ISO14443A/B, ISO15693, ISO18092 Standard;
Available to operate DESFire PICC level, Application ID create/delete/format, etc;
Support to create Standard DataFile&BackupFile, and ValueFile, RecordFile, etc;
External antenna , reading range up to 4 ~ 10cm;
Data output in any file of text, excel, word, etc directly in HEX or DEC, etc;
Connection available with 1.25mm-pitch PIN connector, or stamp-holes;
External LED&BUZZER(external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
Max current： |
Operation frequency |
125KHz/134.2KHz, or 13.56MHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
USB-HID driverless or HID Keyboard |
Antenna |
External, UFL/Molex connector, or stamp hole |
Reading range |
Up to 4 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
22mmx53mmx5mm (LxWxH) |
Weight |
7g |
Material |
FR-4, Blue |
|
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
EM4100,EM4200,TK4100 |
|
ISO11784/11785 |
HitagS 64, HitagS 256, HitagS 2048 |
ISO14443 A |
Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®/Ultralight® C, MIFARE DESFire®EV1/EV2/EV3, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
ISO7816 |
PSAM T=1 (optional) |
Model List |
Supported standard |
CHK171MK |
EM, ISO11784/11785 |
CHK371MK |
ISO1443A only |
CHK372MK |
ISO14443A/B, ISO15693 |
CHK373MK |
ISO14443A/B, ISO15693, MIFARE DESFire® |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
