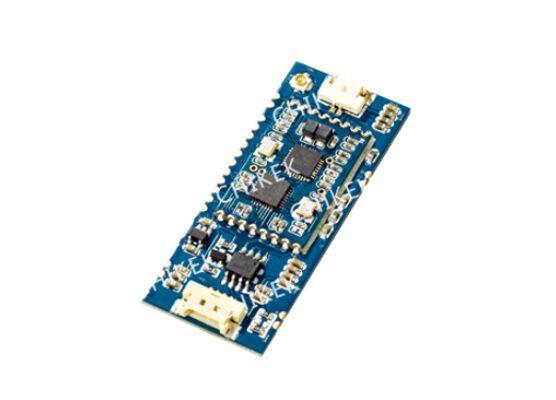

Help CenterRS485 RFID Reader Module, Industrial Rfid Module, Smart Card Reader Writer
Related Products
-
RS232 Port RFID Reader Module, Industrial Multi Protocol Reader WriterNegotiableMOQ: 1 Piece -
HID Keyboard Emulation RFID Reader Module, Smart Card Reader, 125KHz/134.2KHz/13.56MHzNegotiableMOQ: 1 Piece
-
USB Port RFID Read/Write Module, MIFARE Reader Module, 125KHz/134.2KHz/13.56MHz Reader ModuleNegotiableMOQ: 1 Piece
-
USB Port Contact/Contactless Smart Card RFID Reader Writer, 13.56MHz PSAM Card ReaderNegotiableMOQ: 1 Piece
-
USB Contactless IC Card RFID Reader, MIFARE DESFire Smart Card Desktop Reader, 13.56MHzNegotiableMOQ: 1 Piece
Key Features:
DC 3.3V~ 5V power supply, RS485 interface;
Availabe multiple devices in one system with unique device address on each module;
Compliant with ISO11784/11785, or ISO14443A/B, ISO15693, ISO18092 Standard;
Available to format HITAGS series card to ID card or FDX-B animal ear tags format(optional);
Available to operate DESFire PICC level, Application ID create/delete/format, etc;
Support to create Standard DataFile&BackupFile, and ValueFile, RecordFile, etc;
Dimension with 22mmX53mmX5mm(comply for all product in this series);
External antenna , reading range up to 5 ~ 10cm;
Connection available with 1.25mm-pitch PIN connector, or stamp-holes;
External LED&BUZZER(external driver circuit needed)
Technical Parameters:
Electrical Specification |
|
Power supply |
DC 3.3V ~ 5V |
Power consumption |
Max current： |
Operation frequency |
125KHz/134.2KHz, or 13.56MHz |
Baudrate |
9600~115200 bit/s ( default 9600bps) |
Interface |
RS485 |
Antenna |
External, UFL/Molex connector, or stamp hole |
Reading range |
Up to 4 cm ~ 10 cm( depends on antenna and cards) |
Mechanical Specifications |
|
Dimension |
22mmx53mmx5mm (LxWxH) |
Weight |
7g |
Material |
FR-4, Blue |
|
|
Operation temperature |
-20°C～ +80°C |
Storage temperature |
-40°C～ +85°C |
Humidity |
Relative humidity 5%～95% |
Supported Standard/ Tags |
|
EM4100,EM4200,TK4100 |
|
ISO11784/11785 |
HitagS 64, HitagS 256, HitagS 2048 |
ISO14443 A |
Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®/Ultralight® C, MIFARE DESFire®EV1/EV2/EV3, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x
Read UID only: Read UID only of all other ISO14443A RFID tags |
ISO14443 B |
SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
ISO15693 |
EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
ISO7816 |
PSAM T=1 (optional) |
Model List |
Supported standard |
CHK171MR |
EM, ISO11784/11785 |
CHK371MR |
ISO14443A only |
CHK372MR |
ISO14443A/B, ISO15693 |
CHK373MR |
ISO14443A/B, ISO15693, MIFARE DESFire® |
SDK information |
|
Demo software |
WINDOWS, C# language |
Files |
Comprotocol document API document User Manual Demo.exe |
Note: Other functions and details to be continued and upgrade
