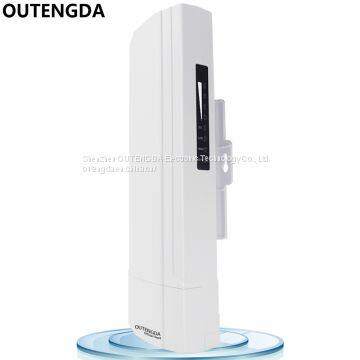

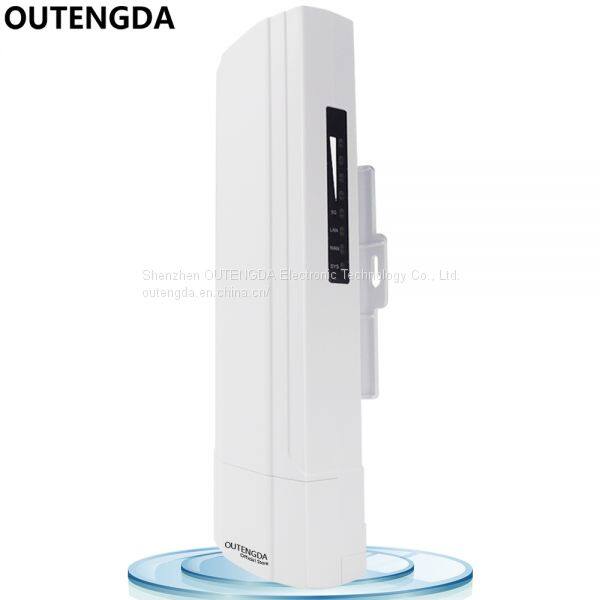

3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client

Shenzhen OUTENGDA Electronic Technology Co., Ltd.
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client thumbnail-1
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client thumbnail-2
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client thumbnail-3
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client thumbnail-4
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client thumbnail-5
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client photo-1
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client photo-2
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client photo-3
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client photo-4
3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client photo-5
US$ 35 - 65 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OUTENGDA
Place of Origin:
China
Model Number:
OAP630
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OUTENGDA
Place of Origin China
Model Number OAP630
Type Wireless
Certification CE
Function Firewall
Products Status Stock
Application Enterprise
WAN Ports 1
LAN Ports Other, 1

3KM Long Range Outdoor CPE AP WiFi Router 2.4GHz 300Mbs Wireless Wi-Fi Repeater Access Point Wifi Extender Bridge Client Router

Note: This product is not supported by open-WRT function, if you want to customize with open-WRT function, then this product will not have the normal function of the router with AP, please carefully consider. and if you need this item with open-wrt function, please leave message to me and tell me your order number, if not, we just default send the item without open-wrt to you.

The distance "3KM" mean 2pcs distance.

suggestion:

there are many factors that affect distance, such as obstacles

(trees, walls, buildings, trucks, etc.), raw network signals, etc

so i can not promise you the very accurate distance.

if you want the good signal, I suggest you buy 2pcs cpe router with point to point.


Descriptions

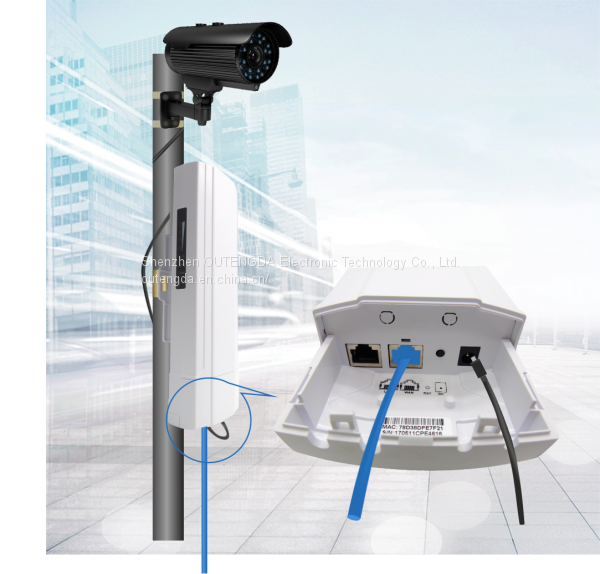

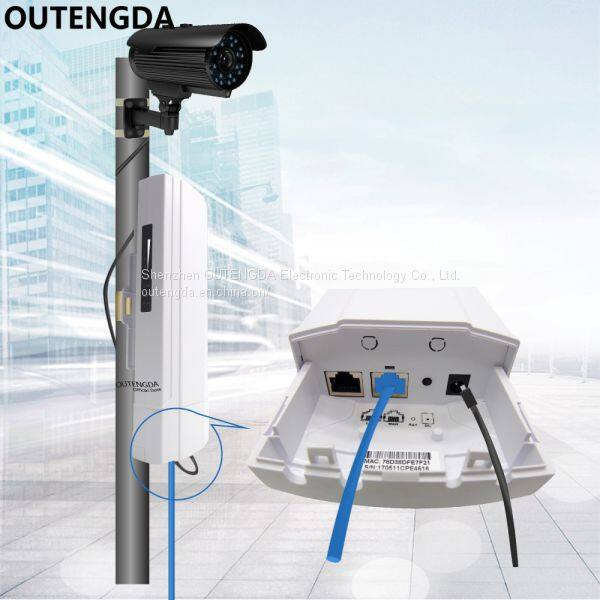

OAP630 is a 300Mbps outdoor long distance wireless AP/CPE with Qualcomm Chipset, build in 14dBi high gain directional antenna, 3KM point to point distance. It supports Wireless AP, Gateway, WISP, WDS, Wireless Bridge operation mode, effective solution for PTP, PTMP application and outdoor long range wifi coverage application. With an outdoor waterproof and dustproof enclosure, building in lighting protection IC, support 24V passive PoE, OAP630 can be used in various weather conditions.

Features
1.  QCA9531 Chipset, 802.11b/g/n Support



 2. Built-in 14dBi 2x2 dual-polarized directional MIMO antenna



 3. Adjustable transmission power from 0 to 28dBm/1000mw



 4. AP / Wireless Client / Repeater operation modes



 5. Outdoor stabilized enclosure with IP65 waterproof



 6. Passive PoE supports up to 60 meter (200 feet) deployment



 7. Extend the reach of your existing company network to another building



Specifications

Hardware


MCU Chipset

QCA9531


RF

2T2R MIMO 802.11N


SDRAM

64MB DDR RAM


Flash

16MB

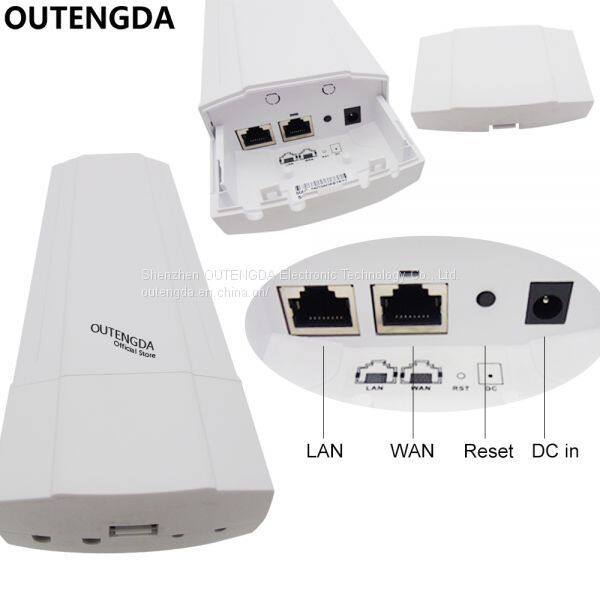

Interface

2 x RJ-45 for 10/100 Mbps(POE)

1 x Reset button(Reset & Factory Defaults)

1 x Power DC Jack


Power

12V/1A DC Jack or 24V/1A Passive POE                    (POE adapter included)


Antenna

14dBi Directional Antenna

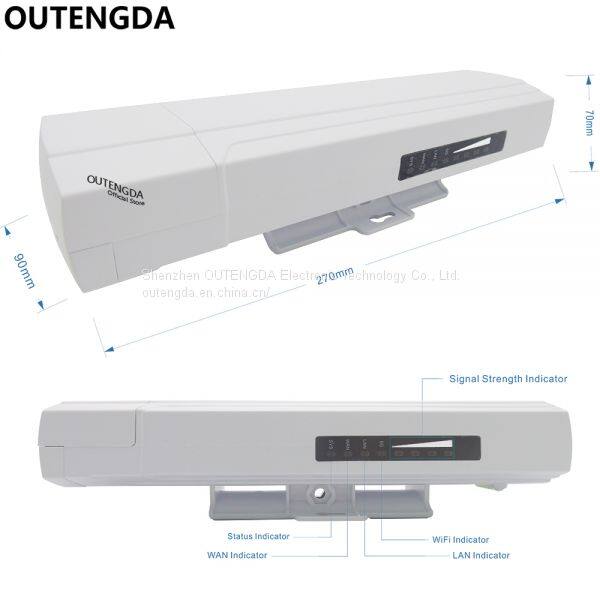

Dimensions

270x90x70mm


Package Dimensions

280x170x100mm


Product Weight

0.5kg


Package Weight

0.8kg


Package

300Mbps Access Point, User Guide, Mounting Kit, PoE Power adapter


Wireless


Standard

IEEE 802.11b/g/n


Speed

11n:Up 300Mbps


11g:6/9/12/18/24/36/48/54Mbps


11b:11/5.5/2/1M


Frequency

2.4Ghz


Security

WPA-PSK/WPA2-PSK,WPA/WPA2,64/128/152 WEP


Out Power

28dBm high power, more WiFi range


Modulation

OFDM = BPSK,QPSK, 16-QAM, 64-QAM

DSSS = DBPSK, DQPSK, CCK


Sensitivity

802.11n HT40(2.4GHz)

83dBm @ MCS0

65dBm @ MCS7

802.11n HT20(2.4GHz)

86dBm @ MCS0

68dBm @ MCS7

802.11g

89dBm @ 6Mbps

73dBm @ 54Mbps



Package List
1* OAP630
1* User Guide
1* Ethernet Cable
1* Stainless Ties
1* PoE Power adapter
