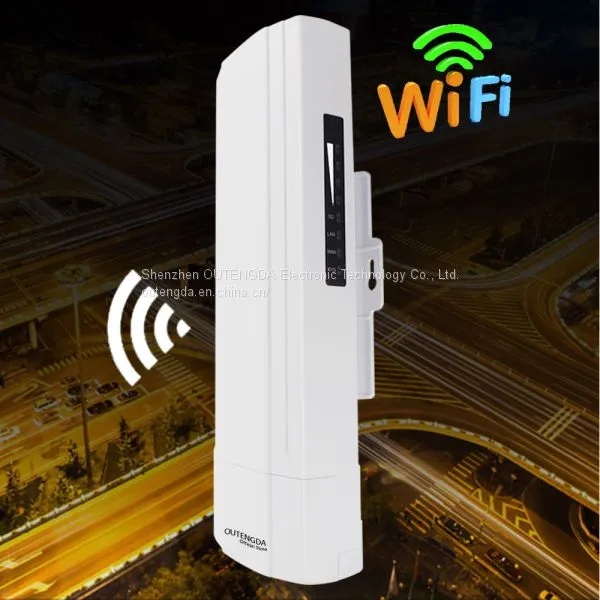

2KM Wireless Outdoor CPE AP Router 150Mbps WiFi Access Point 1000mW WIFI Bridge Repeater Support Super-WDS DIP Switch
US$ 18 - 36
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OUTENGDA
Place of Origin:
China
Model Number:
OAP320
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
3 days
Related Products
-
900Mbps 5G Outdoor CPE Router PTP 10KM Range Wi-fi Access Point WDS Wireless Wifi Bridge Extender Wifi Repeater For IP CameraUS$ 120 - 160MOQ: 2 Pieces -
300Mbps 3Km Outdoor CPE AP 5.8Ghz WiFi Bridge Router 1000mW Wireless Wi-fi Repeater 14dBi Antenna 24V Poe Adapter IncludedUS$ 25 - 45MOQ: 2 Pieces
-
5GHz Outdoor CPE Elevator Wireless Bridge 1-2KM Range 450Mbps AP Router Access Point WIFI Repeater Extender Support WDS PoEUS$ 30 - 55MOQ: 2 Pieces
-
802.11AC 5.8Ghz 900Mbps INTELLIGENT Wireless Bridge Point-to-point Video Transmission 10km Outdoor High-power Wireless CPE BridgUS$ 120 - 160MOQ: 2 Pieces
-
20KM Long-distance Wireless Bridge Point-to-point Transmission PTP 5.8Ghz CPE for Outdoor CCTVUS$ 650 - 850MOQ: 2 Pieces
Brand Name
OUTENGDA
Place of Origin
China
Model Number
OAP320
Type
Wireless
Certification
CE
Function
Firewall
Products Status
Stock
Application
Enterprise
WAN Ports
1
LAN Ports
Other, 1
150Mbps,Qualcomm CPU,2KM Distance
OAP320 is an economic outdoor CPE/AP with 150Mbps data rate. Comply with IEEE 802.11b/g/n standard, adopt Qualcomm QCA9531 chipset, build in 12dBi panel antenna, the transmit/receive wireless distance more than 2000 meters
PRODUCT FEATURES
1. QCA9531 Chipset, 802.11b/g/n Support
2. Built-in 12dBi dual-polarized directional MIMO antenna
3. Adjustable transmission power from 0 to 24dBm/1000mw
4. AP / Wireless Client / Repeater / WDS / WISP operation modes
5. Outdoor stabilized enclosure with IP65 waterproof
6. Passive PoE supports up to 60 meter (200 feet) deployment
7. Extend the reach of your existing company network to another building
8. Quick and easy setup with Web-based management utility
PRODUCT SPECIFICATIONS
Hardware | |
Wireless Technology |
802.11n standard, 1T1R 150Mbps data rate |

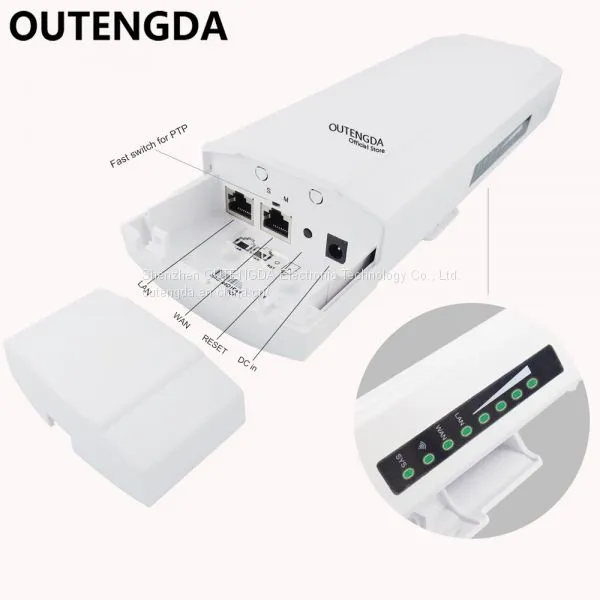

Interface |
2*10/100Mbps WLAN Port |
1*Reset Button for restore factory default settings | |
1*DC power Port | |
1*WDS Switch Button | |
Antenna |
12dBi directional antenna |
LED Indictor |
Power, WiFi, WAN, LAN, Signal Stength LED |
Power |
DC 12V/1A;24V POE Power |
Size |
230mm*80mm*60mm |
Data Rate |
150Mbps |
Firmware | |
Operation Mode |
Gateway/AP/Repeater/WISP/WDS mode |
Network Standard |
IEEE 802.3(Ethernet) |
IEEE 802.3u(Fast Ethernet) | |
IEEE 802.11n/g/b | |
Wireless Security |
WEP Encryption-64/128/152 bit |
WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES) | |
WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP) | |
High SSID | |
System Setting |
Web-based configuration (HTTP/Telnet) |
Firmware Upgrade |
Upgrade firmware via web browser or TFTP |
Administration Management |
Admin User name/Password can be configured |
System Monitoring |
Device and Networking status statistic |
Log |
Support local log, host log, log file exporting |
Reset |
Reset to factory defaults |
Backup |
Backup device configuration, then restore this configuration if need |
Environment | |
Temperature |
Working Temperature: -20°C~55°C |
Storage Temperature: -40°C ~ 70°C | |
Humidity |
Working Humidity 5%~95% RH No condensation |
Storage Humidity 5%~95% RH No condensation | |

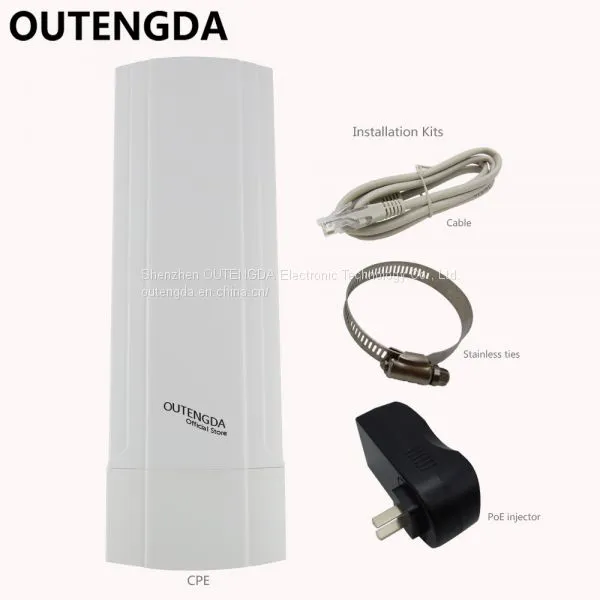

Package 1* OAP320 1* User Guide 1* Ethernet Cable 1* Stainless Ties 1* PoE Power adapter
