Aluminum Double Head Miter Saw Angle Cutting Machine

Name: Aluminum Double Head Miter Saw Angle Cutting Machine
Brand: Chine Chern
Availability: InStock

FOB Price

US$ 5.00 - 15.00 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Chine Chern

Model Number

LJC2-450*3700

Aluminum double head miter saw angle cutting machine

Equipment features:

Imported carbide saw blade give accurate processing and high endurance.
Saw blade rotate smoothly due to high accuracy main spindle.
Uniform speed feeding and smooth motion due to air-hydraulic damping cylinder.
Used for cutting aluminium at -45°,90°and 45°
One time processing can cut off the required length and angle of both ends .
The safety devices designed specially clamp the devices when power is cut off suddenly. So the safety of operators is assured.
It has features of easy operation,reliable performance,advanced technique and convenient maintenance,etc.

Parameters:

Voltage:	380V 50HZ
Power:	3.55KW
Air pressure:	0.5-0.8MPa
Air consumption:	200L/min
Blade specification:	Φ450XΦ30X4 Z=120
Cutter moving speed:	0-2m/min
Cutting length:	Max3700mm Min400mm
Cutting width:	120mm
Cutting height:	200mm
Cutting angle:	-45° 45° 90°
Angle error	±4′
Repeat locating length error:	±0.2mm
Surface plainness:	±0.1mm
Surface harshness:	Ra12.5 µ m
Overall dimension:	4700mm×1600mm×1600mm

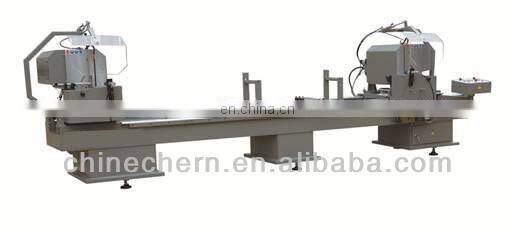

Machine Photo:
