Oil pressure double-head tube chamfering machine
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
Product Details
Brand Name | Chine Chern | Model Number | JC-50A-550 |
Product Description
Oil pressure double-head tube chamfering machine:
Design patent #201130224490.0
Practicability patent # 201120313316.8

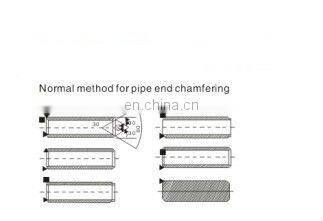

1.The machines may offer a completely automatic loading, feeding and chamfering process. This range is suitable for cleanly and evenly chamfering both ends of the tube, as well as chamfering the internal, external and face of the material
2.Fully automatic chamfering system for save manpower
3.Interior and exterior angle chamfering of tube and rod,Milling the end finish at one time.
4.Minimum processing tube diameter can be up to 6mm
5.Belt shake feeding system for the workpiece, ensuring a smooth process throughout
6.The rigid tool seat has been designed for durability, with easily fixable tool bits for longer working life
7.Two-step chamfering process:
8.First speed fast approach for time saving
9.Second speed infinitely adjustable chamfering speed for smooth finish
10.The length tolerance of each working piece can be controlled within 0.01mm through a cutting speed adjustment device
11.The machine bed's heavy casting and headstock can absorb working vibrations, providing a continuous and stable operation

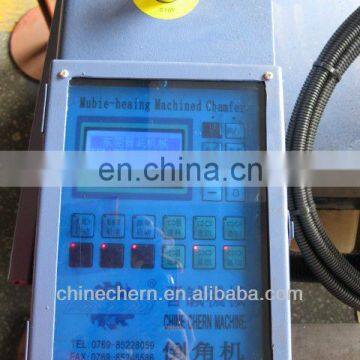

12.Optimal electric circuit and NC control result in a low maintenance system

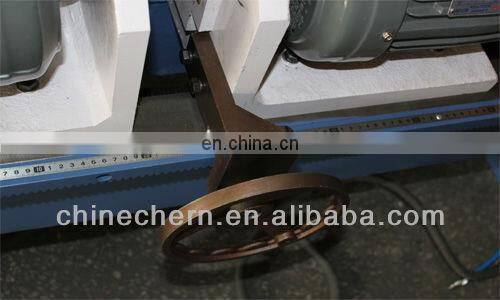

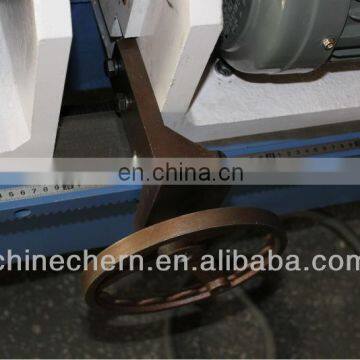

13.Right chamfering head maybe be easily moved to desired position through a hand wheel
14.It can also chamfer threaded rod
Technical parameters:
Model | JC-50A-550/1000/1500(Hydraulic) |
Host motor | 2HP/4P*2 |
Pipe diameter | ¢6mm- ¢ 50mm |
Short pipe length | 30mm-110mm |
Long pipe length | 110mm-550mm |
Cutterhead | Standard cutterhead |
Blade | Tungsten carbide throw-away blade |

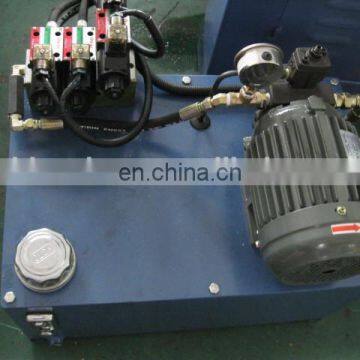

Hydraulic pump | 0.75KW/20 Lite pump work pressure20-30KG/CM2 |
Standard fittings | 1.one set clamps 2.one set cutter and one set blade |
Special fittings | 1.clamps of different sizes 2.special cutterhead 3.Automatic feeding system |
Machine weight | 680kg |
Machine Dimension | 2000mm×1050mm×1100mm |

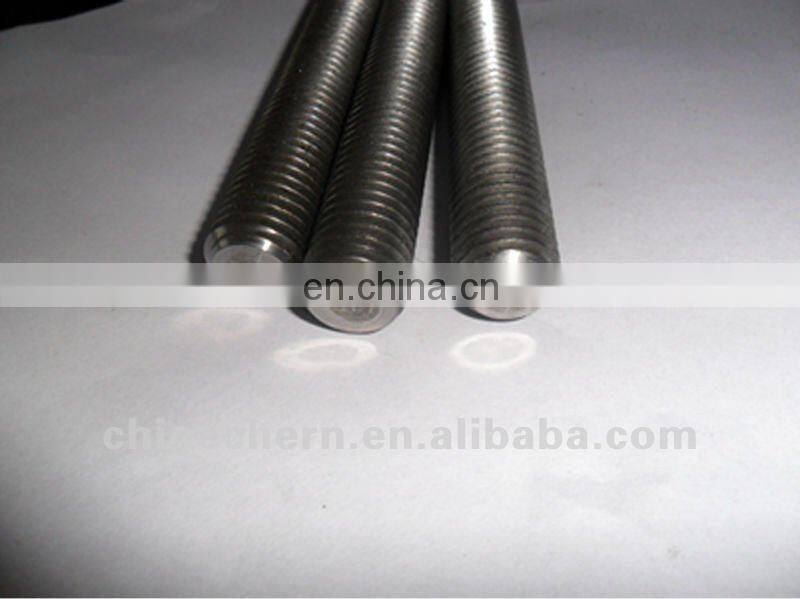

Samples & Spare Parts:

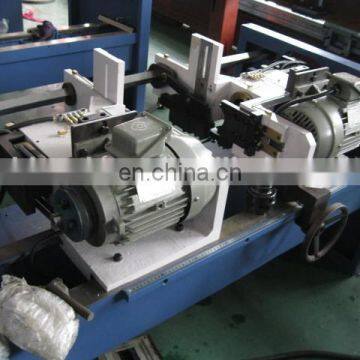

Machine Picture :
