UPVC & Aluminum Window And Door Double Head Miter Angle Saw Machine
Main Characteristics :
1. Used for cutting aluminum and pvc at 45,90,-45 degree
2. The right head can be adjusted horizontally by the motor
3. Two head work together or independently.
4 Uniform speed feeding and smooth motion due to hydraulic clamping Cylinder.
5. It has features of easy operation, reliable performance, advanced technique and convenient maintenance, etc.
6. Right head moving is driven by motor.
7. Imported carbide saw blade is of accurate processing and high efficiency.
8.The digital measurement display is optional.
Technological Parameters :
Power supply | 380V 50Hz |
Air pressure | 0.5-0.8Mpa |
Cutting motor power | 2x1.5KW |
Rotary Speed | 2800r/min |
Air consumption | 60L/m |
Blade specification | Φ450XΦ30X4.4 Z=120 |
Cutting length | Max 3700mm min 580mm (45°) |
Max 3700mm min 400mm(90°, 135°) | |
Cutting width | Max 120mm |
Cutting height | Max 200mm |
Cutting angle | 90°, 45°,135°(optional) |
Cutting angle allowance | ±5′ |
Cutting speed | 0-0.3m/min |
Cutting profile surface planeness | <=0.1mm |
Cutting profile surface roughness | Ra 12.5μm |
Overall dimension | 4500X1170X1400mm |
Weight | 1500kg |
Japan Saw Blade :

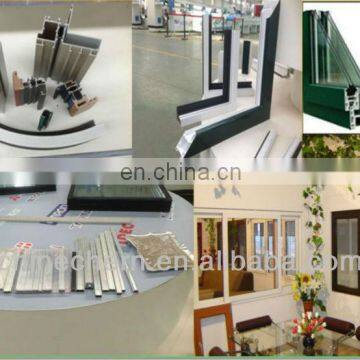

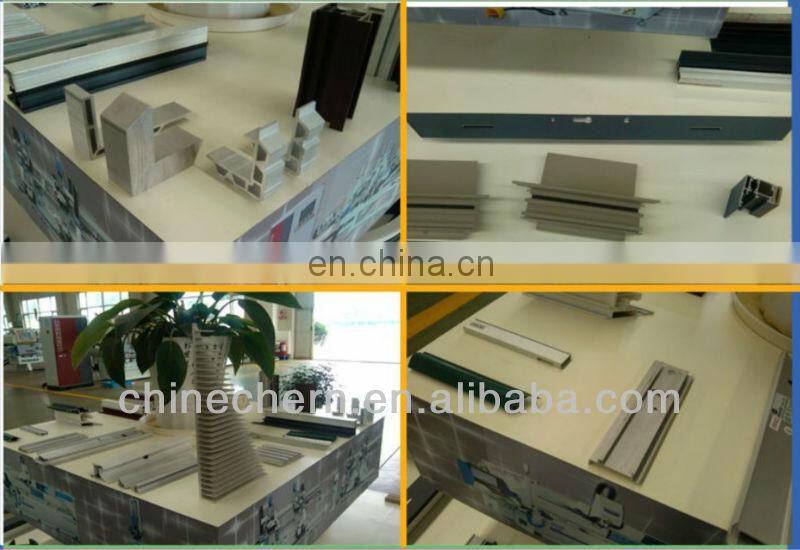

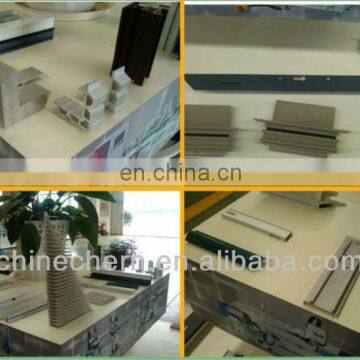

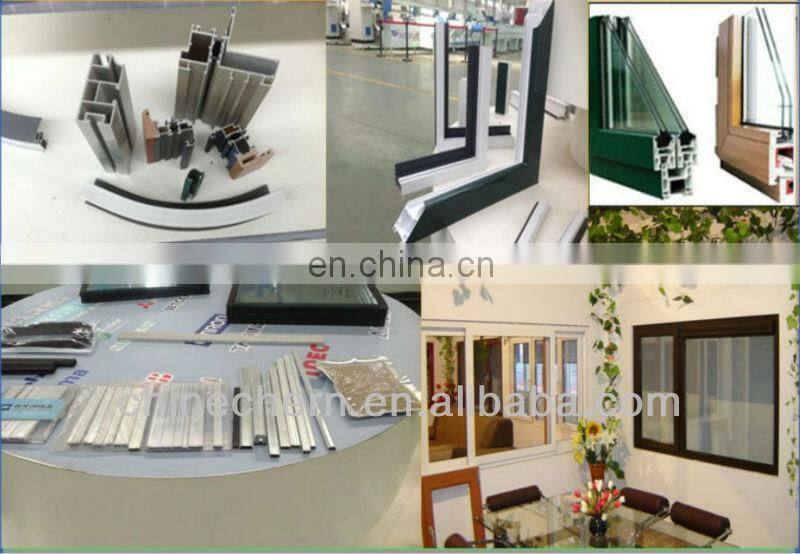

Aluminum Window And Door :
