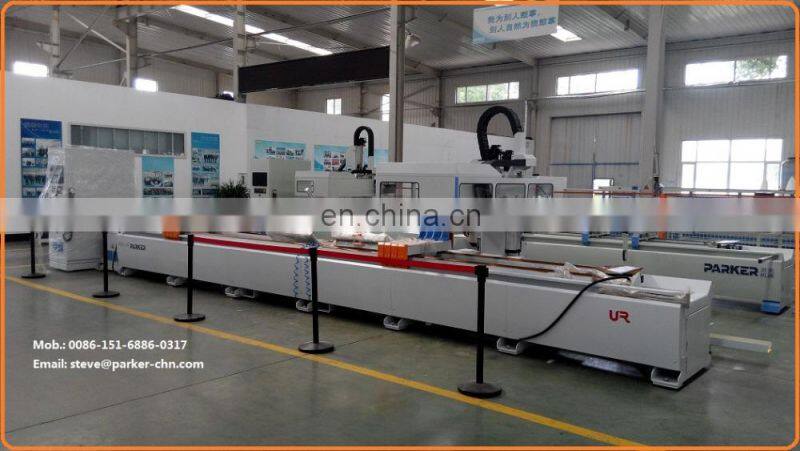

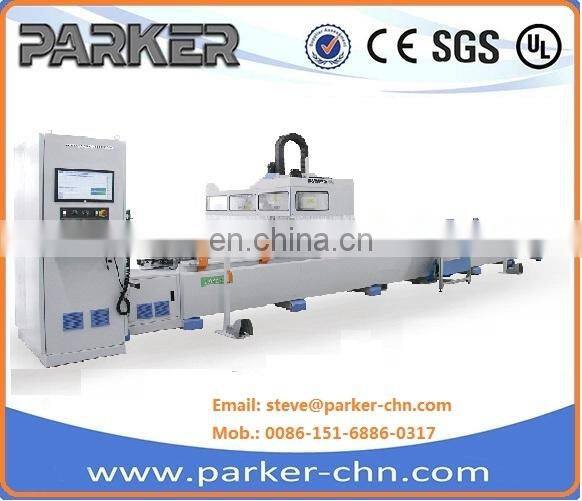

Aluminum CNC 3 Axis MACHINING CENTER for Building Curtain Wall

CURTAIN WALL/FACADE MAKING MACHINE

CNC FOUR AXIS MACHINING CENTER

ALUMIMIUM MACHINING CENTER

ALU MACHINING CENTER

Model: DMCC6

Features:

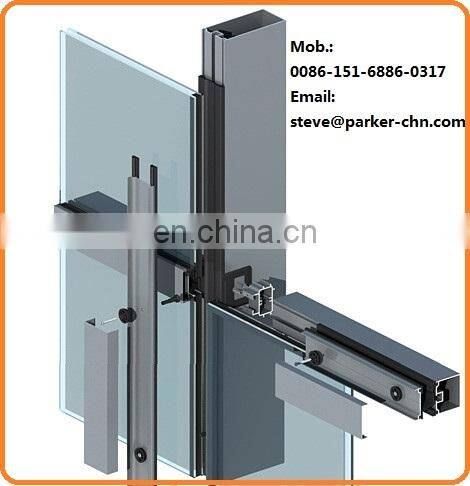

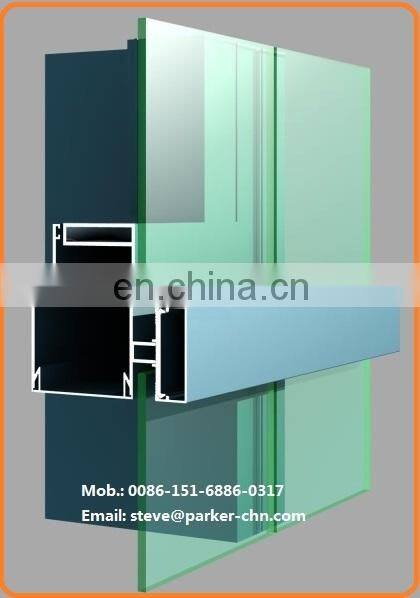

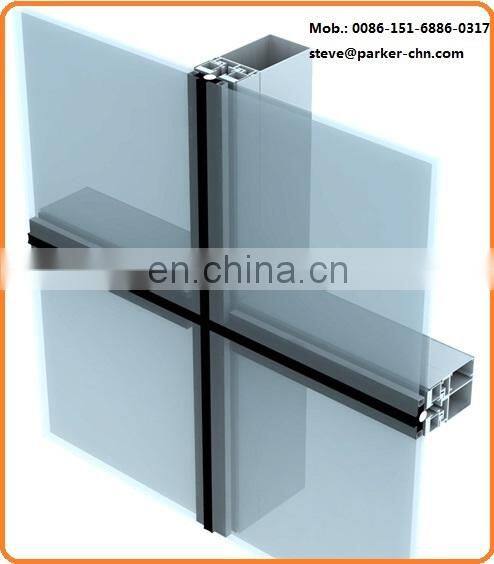

1.The machine is suitable for processing installation holes, water slot,  shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.

2. It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°

3.It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.

4. It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.

5. Equipped Six cutters positions, the cutter can change quickly and automatically .

6. The semi-closed guard improved security greatly.

7. Clamping device position can be optimized  and  put to right position automatically and freely.

Technique Parameter:

X- axis:7600mm
Y- axis:960mm
Z- axis:610mm
X- axis speed:0~90m/min
Y- axis speed:0~80m/min
Z- axis speed:0~75m/min

Main shaft rotary range:  - 90º ~ 0º ~ + 90º
Tool magazine:6 different cutters, change cutter automatically

Max cutter length: 165mm
Air Pressure:0.5-0.8Mpa
Voltage:380V/50Hz
Total power:10kw
Number of clamping device: 8
Lubrication and cooling : Lubricating automatically, spray cooling

Processing size range(WXHXL):550×300×7300mm
Overall dimension:10100×2300×2600mm
