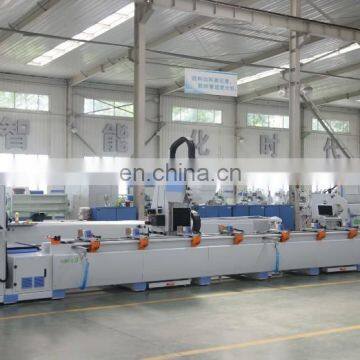

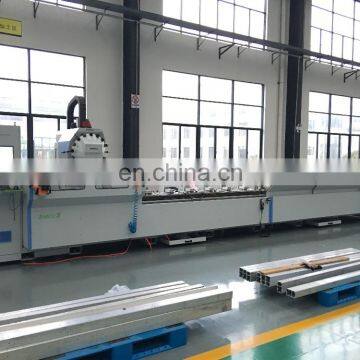

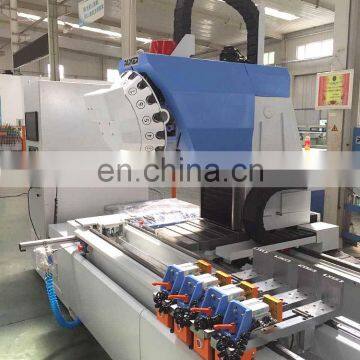

Aluminum curtain wall CNC 3 Axis drilling milling machine
Features:
It is used for drilling, tapping, milling and other processings to the profiles of window-door/curtain walls/alluminium alloy, to the profiles of processing industries (like rail transport and refreigeration components, bathroom accesories, shipbuilding and automobile alu-components) and the profiles of industrial aluminium , non-ferrous metal and light steel-work
Schneider in the full set servo control system. Professional CAD-CAM processing software and easy alternation between Chinese and English version. intuitive programming system enables easy visualization of complex processing.
Movable work table and waste box are equipped.
A series of processing covering drilling, milling, and tapping can be finished with no stop with one location
The body welded with high qualified thick steel pipes processed by scratch push ensures the stable structure and rigidity
Ball screw from ABBA, HIWIN guideway and UUC rack from Taiwan keep high precision.
14 position turrent-tool magazine saves time in the change of cutters,of which the diameter varies from 4mm to 16mm. Profile as thick as 20mm can be processed.
Double location and alternative feeding increase working efficiency
Continuous process when power restart is available. The linkage speed can reach 1000mm/min.
The lock tool apron makes it easy to replace the cutters
Lubrication system of plant oil released every half an hour.
Spray cooling system, safe, eco-friendly, safe to operators. and beneficial to tool's working span.
Photo electric screen is equipped for head and operator detection, which will immediately alarm and stop the head's working once people get too close.
|
380V 50Hz |
|
13kW |
|
±0.05mm |
|
±0.02mm |
|
±0.1mm |
|
Ra12.5 |
|
7070mm |
|
48m/min |
|
40mm |
|
48m/min |
|
572mm |
|
20m/min |
|
10000mm x2300mm x 2800mm |
PARKER IS DEVELOPING WITH THE WORLD.
Parker was founded in 2003, since the entry into the window door curtain wall machinery manufacturing field, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees, Parker Industrial Park covers an area of 70000 square meter, Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.
|
|
|
CNC Curtain Wall Auto Parts Milling Machining Center |
Aluminium mould and frame milling drilling machine |
Aluminium ladder profile milling drilling machine |
| Contact: Carina | |
| PARKER MACHINERY CO.,LTD,CHINA | |
| Address: | 9th floor, South of No.9 Building, Shuntai Square, Hi-tech Development Zone, Jinan, Shandong, China. |
| Tel/Whatsapp: | 0086-15106958367 |
| Skype: | carina.parkermachine |
| E-Mail: | Carina (at) |
| Web. | |
| Industrial Park: | Mingjia West Road, Qihe, Shandong, China |
