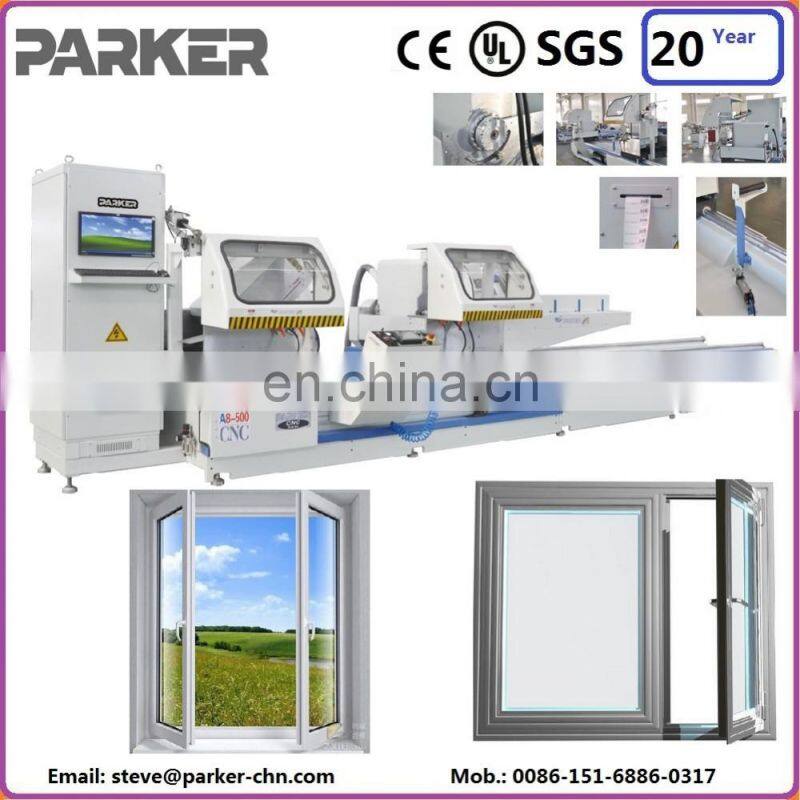

CE Certificated CNC Aluminium Three Axis Window Door Making Double Head Double Head Aluminium Profile Cutting Machine

CE certificated CNC aluminium three axis window door making double head double head aluminium profile cutting machine

 Measurement of moving cutting head position via direct measuring system with magnetic tape

 2 carbide-tipped blades, brand WEMARO

 Full guard for cutting zone, pneumatically operated

 Pair of pneumatic horizontal and vertical clamps with “low pressure” device

 Profile support roller conveyor

 Lubrication system, spray-mist lubrication with oil and water emulsion or quantity oil lubrication

 Cutting angles with blade Ø500mm from 45° ~ 157.5°,any angle

 Manual profile support

 Pair of standard counter blocks

 Metric scale

 Cutting length 5 meter

 Blade motor power rating 2.2 KW

 The machine has label printing function (optional)

 The machine is the most advanced double-head cutting saw.

Main Features

Parameter:
 Voltage: 380V 50HZ
 Power: 5.9KW
 Air pressure: 0.5-0.8MPa
 Computer display USA HP Industrial special computer
 Blade specification: 500X30X4.4,T=120 (standard size) WEMARO
 Cutter moving speed: 0-2m/min
 Cutting length: Max5000mm Min480 at 90°
Max5000mm Min(double height of profile) at 45°

 Cutting width: 120mm
 Cutting height: 230mm

 Cutting angle: 45° ~ 157.5° , any angle
 Repeat locating length error: ± 0.2mm
 Surface plainness: ± 4μm
 Overall dimension: 7000mmX1700mmX2000mm

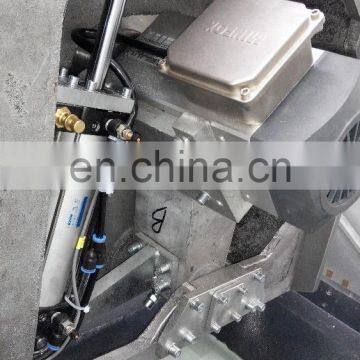

Real photo

Main Features

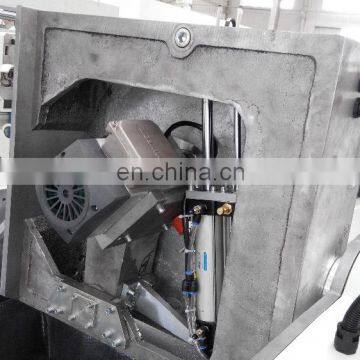

Name: PRECISION MOTOR
Brand: SOGA
Original: ITALY

Machine Parts

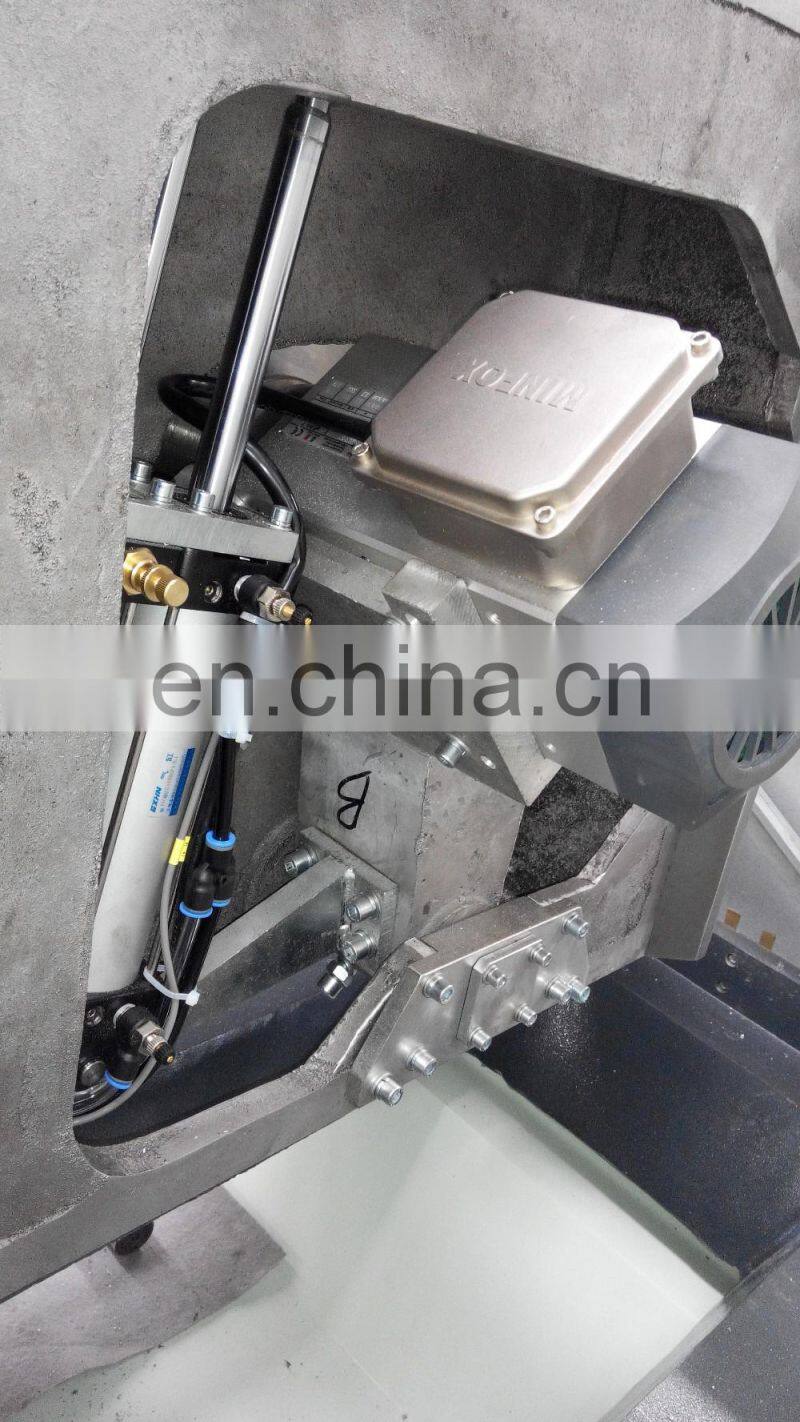

Name: PRECISION MOTOR
Brand: SOGA

Original: ITALY

Main Features

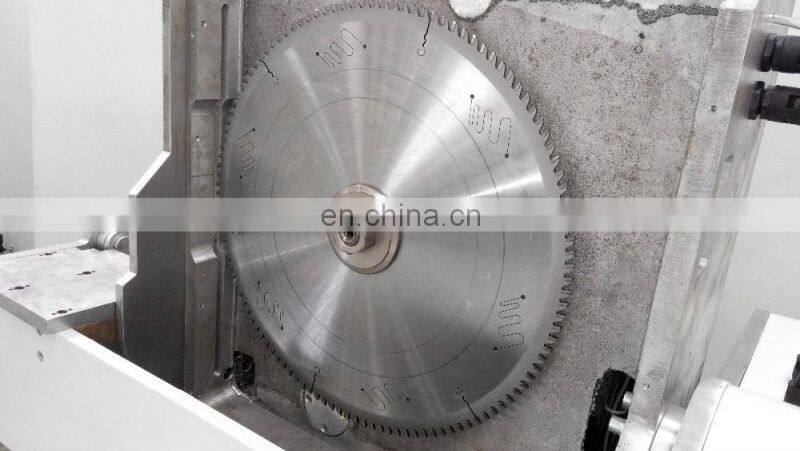

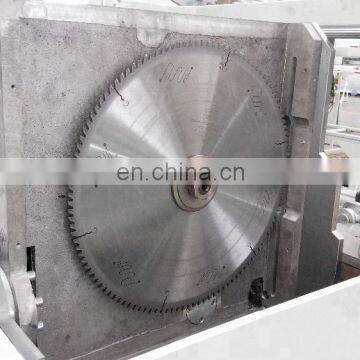

Name: SAW BLADE
Brand: WEMARO
Original: Germany
500X30X4.4, 120TEETH.
