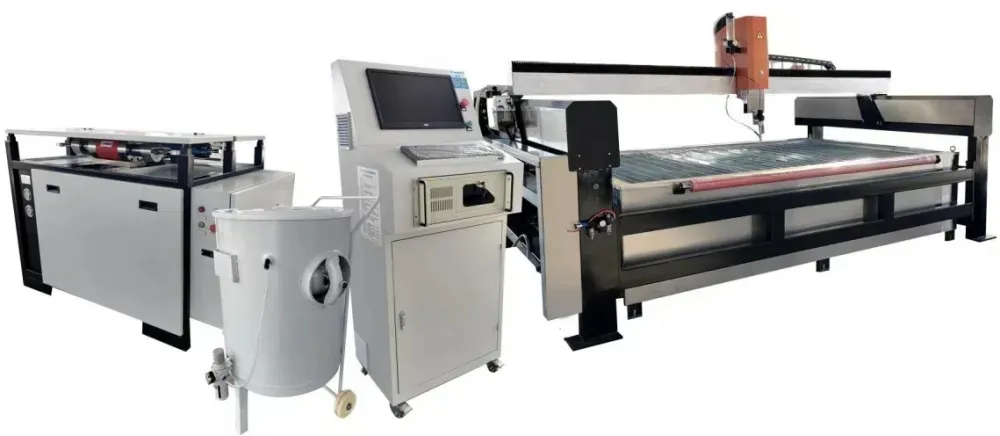

Reliable Waterjet Cutting Machine for Stone Marble Porcleain Cutting Industry

Reliable Waterjet Cutting Machine for Stone Marble Porcleain Cutting Industry thumbnail-1
Reliable Waterjet Cutting Machine for Stone Marble Porcleain Cutting Industry photo-1
US$ 20000 - 40000 MOQ: 1 Set
Key Specifications
Get Latest Price
Certification:
CE
Warranty:
One year
After-sales Service:
Yes
Contact Supplier Request Quote Chat Now
Shenyang Reliable Technology Co., Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
40 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE
Warranty One year
After-sales Service Yes
Control Method Other, CNC
Application Metal
Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method Point to Point Control
Numerical Control CNC/MNC
Processing Precision 0.01~0.02(mm)
Performance Classification High-End CNC Machine Tools
Transport Package Soft package
Trademark RELIABLE
Origin SHENYANG

MS-A50 PUMP

Main Motor Power

37kW(50HP)











Max Pressure

420Mpa

Max Water Discharge

3.8L/min

Max available Orifice Diameter

0.33mm

Pressure Transfer Ratio

1:21

Oil tank capacity

120L

Power supply

380V/50Hz/3PH

Length/width/height

1710/1500/1191

Weight

980kg

Main Parts

Brand

Reference picture

Intensifier

37KW



Motor

Siemens/Innomotics（BEIDE）

VOLTAGE

380V/50HZ/3P

PLC

OMRON

Heat Exchanger

Oil cooling

Control System

LP/HP auto control

Temperature Display

Digital temperature display




Accumulator Volume

1.0L

Low Pressure Filter

10μ

Water Supply

1/2"

Water Pressure

0.3Mpa

Water Drain

3/8"

Pipeline Connection

HP 3/8" M20 x 1.5

Compressed Air Pressure

0.6Mpa

Connection for Hose

6mm

Function

Description

Oil Cooling

Has good cooling effect.

Overtemperature Alarm

An electronic temperature control meter is used to monitor the oil temperature and give an over-temperature alarm to avoid equipment problems caused by over-high oil temperature.

Multistage Filtration

Four-stage water filtering device is adopted to avoid water quality problems and prolong the service life of equipment.

Cutting Table

Structural style

Bridge type

X and Y axis Travel

1500*6000mm

Z-axis Travel

200mm

Control accuracy

±0.01mm

Cutting accuracy

±0.2mm

X/Y-axis Max. moving speed

8000mm/min

Z-axis Max. moving speed

1000mm/min



Cutting Head

Single head,3Axis

Way of Drive

AC Servo

Servo System

INOVANCE

Ball Screw

TBI

Atmosphere Pressure

86Kpa~106Kpa

Dust Concentration

Not More than 10mg/m3

X  Axis Structure

Aluminium/Steel Structure

Water Tank

Coated Stainless Steel



3Axis Cutting Head

Axis

3



A  Axis Swing Angle

N/A

C  Axis Swing Angle

N/A

Control Accuracy

0.01mm

Angle Control Accuracy

0.01°

The workpiece height can be measured in real time for precision cutting.


Main Characteristics of CNC System

Industrial PC



18.5 Inch LCD Monitor

Weihong NcStudio

Support DXF and NC code file

Forward and backward processing function

Even pace control function

Partial and smooth processing modes

Small arcs speed auto processing function

Circle processing function

Coordinate memory retention function

Set delay time free

Pause, continue and processing from any division function




Auto Abrasive Delivery System

Max. Inlet Air Pressure

0.3Mpa



Min. Inlet Air Pressure

0.2Mpa

Abrasive Capacity

150Kg

Min. Inlet Air Flow

0.028 m3/min

Operating Air Flow

0.005 m3/min

Self-feeding Control

Air Valve to prevent jams and breakages

Self sealing



Oil Cooler

Power supply

3P/380V/50Hz

Power/Electric current

5.8kW/15.2A

Compressor Power

4.5kW

Fan volume

1350 r/min

Oil pump power/flow

1.5kW/61L/min

Piping size (internal thread)

G1 1/4

Refrigerant

R22

Temperature control range

20~45℃

Size（mm）

659*730*1551



Equipment Installation Conditions

Installation Position

1.Indoor, with a net height of not less than 4.5m.

2.Temperature: 5 - 40 ℃

3.Maximum relative humidity: 95 %

Water source requirements

Pressure> 0.3Mpa, soft water

Power requirements:

three - phase,380V, AC,50hz, 100A, voltage fluctuation within 5 %

Air source requirements

compressed air supply pressure: > 0.6 Mpa

compressed air supply flow: > 28.3 l / min

Oil Requirements

need 120L, antiwear hydraulic oil(46#);

Abrasive Requirements

 sand, size 60 - 100 mesh, consumption: 15 - 45 kg / h


Product Tags: waterjet cutting machine , waterjet cutter , water jet
