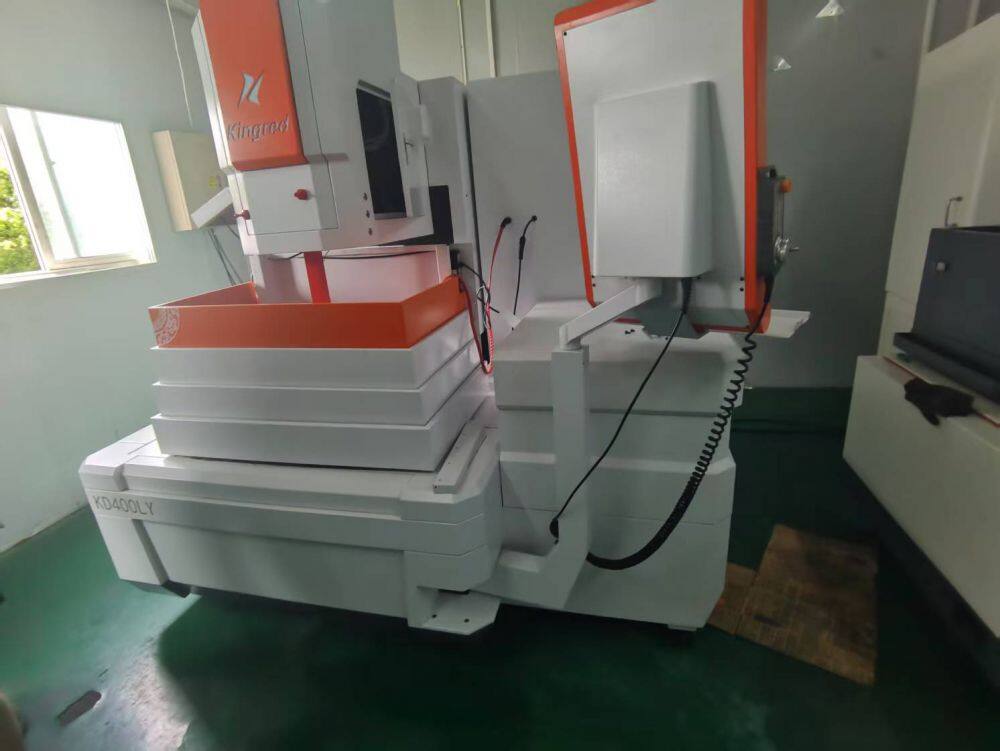

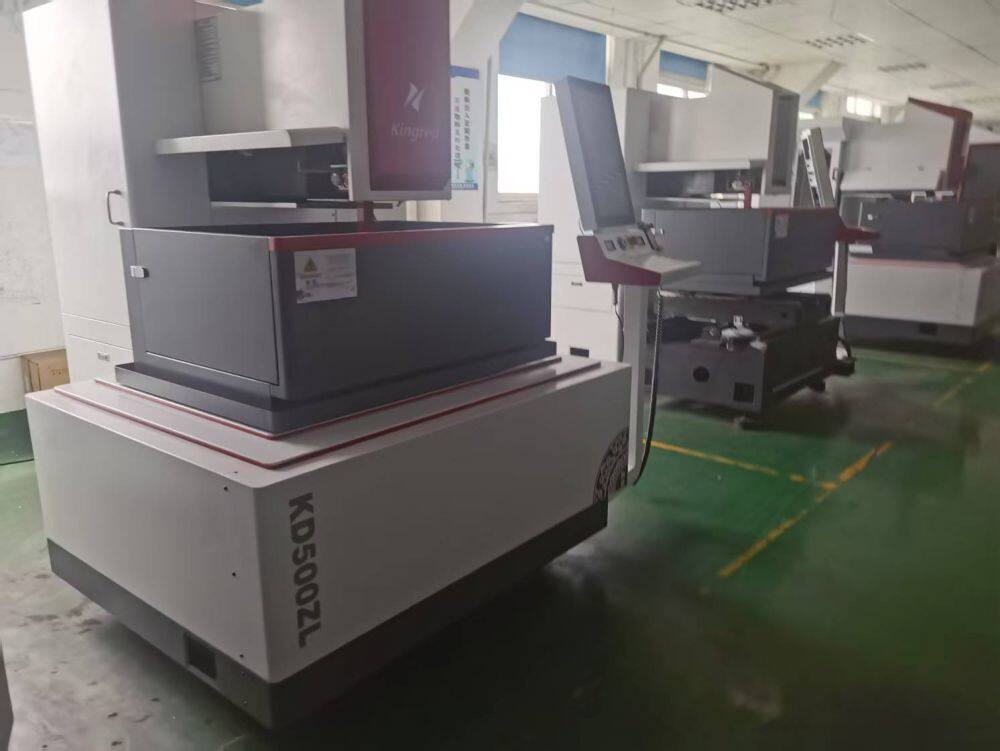

Cutter Wire Cutting in the Middle of the Kade

Cutter Wire Cutting in the Middle of the Kade thumbnail-1
Cutter Wire Cutting in the Middle of the Kade thumbnail-2
Cutter Wire Cutting in the Middle of the Kade thumbnail-3
Cutter Wire Cutting in the Middle of the Kade photo-1
Cutter Wire Cutting in the Middle of the Kade photo-2

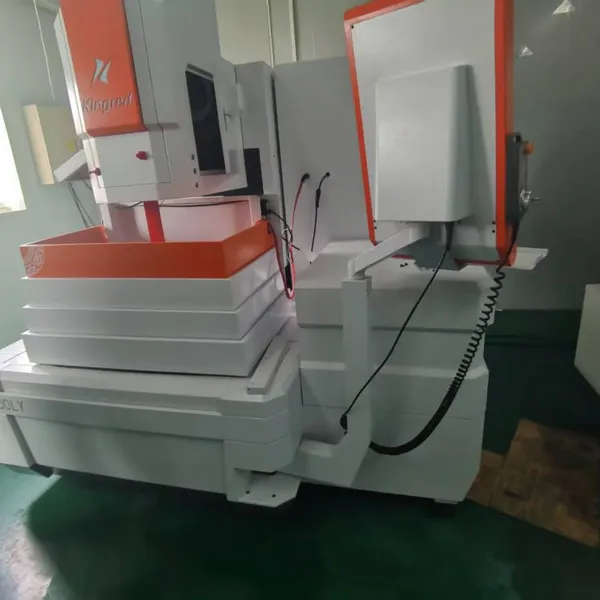

Cutter Wire Cutting in the Middle of the Kade photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Control Method:
Semi-Closed Loop Control
Condition:
New
Application:
Metal
Contact Supplier Request Quote Chat Now
Suzhou Kemashi Precision Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Control Method Semi-Closed Loop Control
Condition New
Application Metal
Movement Method Linear Control
Numerical Control CNC/MNC
Processing Precision 0.04~0.05(mm)
Performance Classification High-End CNC Machine Tools

(I) General Technical Specifications

You can let me know the specific processing requirements you have, such as the workpiece size, workpiece material, and other relevant information. Alternatively, you can send the drawings to me. Our technician will help your company select the most suitable equipment for your products based on the details of your product.

For any inquiries, please reach out to me via email at 15312152915@163.com.

I work for a trading company based in China, and we sell a wide range of mold processing equipment, including:

Grinding machines

Milling machines

Machining centers

Wire-cut EDM machines

Medium-speed wire-cut EDM machines

Measuring instruments



For any inquiries, please reach out to me via email at 15312152915@163.com.

I work for a trading company based in China, and we sell a wide range of mold processing equipment, including:

Grinding machines

Milling machines

Machining centers

Wire-cut EDM machines

Medium-speed wire-cut EDM machines

Measuring instruments



No. Technical Indicator Specification
1 Stroke 320×400×300
2 Worktable Size 435×650
3 Cutting Taper ±12/80
4 Taper (U, V) Stroke (mm) 120×120
5 Maximum Cutting Thickness (mm) 300
6 Maximum Load Capacity (kg) 400
7 Cutting Surface Roughness (μm) Ra≤0.8
8 Maximum Cutting Speed 300 mm²/min
9 Machining Accuracy (Octagon/Taper) (mm) ±0.004/±0.015
10 Minimum Movement Increment of Worktable (mm) 0.001
11 Wire Electrode Diameter (mm) ∮0.10-∮0.25
12 Total Machine Weight (kg) 2600
13 Machine Overall Dimension (mm) 2100×2100×2200
14 Machine Outer Packing Dimension (mm) 2300×2300×2400
15 Machining Peak Current (A) 9
16 Operating Voltage (V) 110
17 Pulse Width (5 gears adjustable) 1-60
18 Pulse Interval (continuously adjustable) 1:2-1:5 (Pulse Width : Pulse Interval)
19 Power Supply Voltage 380V/50Hz
20 Machine Power ≤1.2KVA


Product Tags: Cutter wire cutting in the middle of the Kade , Walking wire cutting , Semi-closed wire cutting
