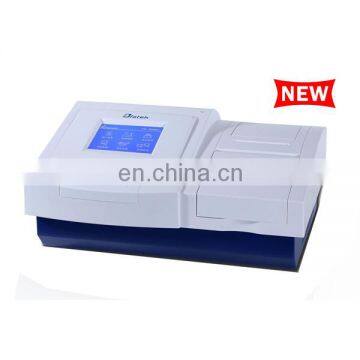

DR-3508 ELISA Analyzer

 DR-3508 ELISA Analyzer

Introduction

DR-3508 ELISA analyzer is widely used in rapid qualitative fruits and vegetables, agricultural and sideline products, daily food, seafood and their products, milk and other foods, quantitative detection, the stability of the instrument performance, clear display of the food ingredients and toxic and hazardous food detection of additives is more accurate, more simple operation, suitable for food processing, manufacturing, distribution and other areas, so the ELISA analyzer is widely used in the testing center, the business of law enforcement departments, health supervision departments, food processing plants, farmers market, supermarkets, catering institutions, hotels, as well as being used in major universities and research institutes as research tools or teaching equipment

Feature

Graphical operating interface, menu designed for convenient use

High brightness and large size LCD, with touch screen input

Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen

Single or dual wavelength measurements, comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas

Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately

Performing 12 different tests just in one plate

Multi-forms in result output including patient comprehensive report

Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost

Technical Parameter

Optional external mouse action and standard keyboard

With serial RS-232 interface and parallel interface

Easy connect to PC , comprehensive functions with Found WordStation PC software

Photodetector: Silicon Photodiode

Light source: Controlled tungsten halogen lamp

Wavelength range: 400nm~800nm

Indication range: 0.000~4.000OD

Resolution: 0.001OD

Accuracy: ±1.0% at 1.0 OD, 450um

Reproducibility: ±1.0% at 1.0 OD, 450um

Standard filters: 405,450,492,630nm

Additional filters: on request, filter wheel for up to 8 filters

Shaking: Linear Shaking , 3 speeds

Display: 320 × 240 LCD

Interface connections: USB,Serial RS-232, parallel printer interface,PS2 Mouse&Keyboard

Power supply: 100~240V, 50~60Hz

Dimensions/ weight: 460×350×197mm/11kg

,
