Help CenterAps Nesswell Medical Tissue Fully Automated Microtome
Related Products
-
Pathology Equipment Touch Screen Tissue Flotation Bath Tissue Water BathNegotiableMOQ: 1 Unit -
Pathology Equipment Touch Screen Slide Warmer Laboratory Tissue Slide DryerNegotiableMOQ: 1 Unit
-
Aps Nesswell Pathology Equipment Paraffin MicrotomeUS$ 2500 - 2900MOQ: 1 Unit
-
Aps Nesswell Semi-automated Rotary Microtome Pathology Automatic MicrotomeUS$ 2500 - 6500MOQ: 1 Unit
-
Erma Microtome Blade Pathology ConsumableUS$ 60 - 70MOQ: 1 Box
Specification

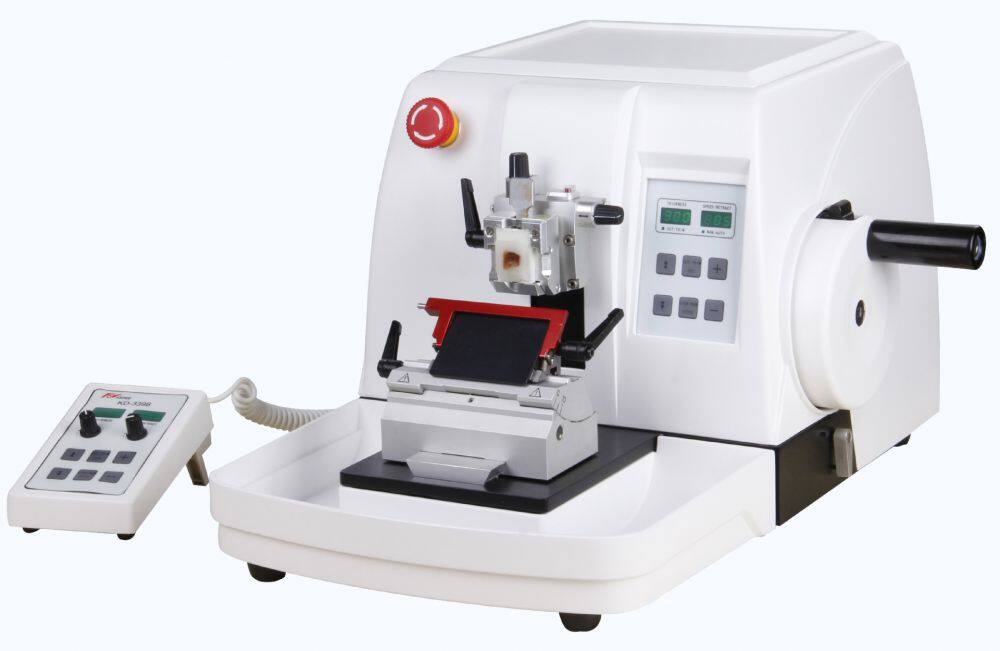

The fully automatic Microtome APS-3398 provides utmost reliability, user benefit and outstanding operator comfort.
The high section stability and precision turn this instrument into an universal multipurpose microtome for highest demands on sectioning paraffin as well as for hard sectioning technique in biology, medicine and industry. The cutting motor drive allows precise sectioning, ensuring good reproducibility. Another user-friendly feature is the cutting window that can be adjusted to the specimen size, while the preselected speed is only applied within the cutting window. This enables the user to section delicate specimens precisely in a short period of time. The large section thickness range from 0.25 µm to 100 µm is divided into fine sectioning and trim sectioning. You can easily switch between these two ranges, even while sectioning. Memory positioning allows the fast movement to a stored cutting position by pushing one button only.
| Model No.APS-3398 Specification List | |||||
| Parameter | Section thickness setting range | 0.25—100μm 0.25—2.5μm increment 0.25μm 2.5—5μm increment 0.5μm 5.0—10μm increment 1μm 10—30μm increment 2μm 30—60μm increment 5μm 60—100μm increment 10μm |
|||
| Trimming thickness setting range | 1—600μm 1—10μm increment 1μm 010—020μm increment 2μm 020—050μm increment 5μm 050—150μm increment 10μm 150—600μm increment 50μm |
||||
| Minimum setting of sectioning thickness | 0.25μm | ||||
| Specimen retraction setting range | 0μm-50μm ( 0 is off ) 5μm-10μm-15μm—50μm (optional) |
||||
| Feed speed adjust | 1500μm/s--3500μm/s | ||||
| Precision and error | ±1% | ||||
| Maximum specimen size | 70mm*70mm(optional clamp) | ||||
| Specimen horizontal feed | 28mm | ||||
| Vertical specimen stroke | 70mm | ||||
| Specimen holder rotation | At any angle within 360º | ||||
| Movement range of the base of blade holder base | 0-60mm (front to back) | ||||
| Movement range of the blade press plate | 0-23mm | ||||
| Specimen clamp rotation | At any angle within 360 degrees | ||||
| Specimen orientation | XY – 8° | ||||
| Technical Data | Working voltage | AC220V±10%,50Hz (standard model) AC110V±10%,60Hz |
|||
| Power | 150W | ||||
| Dimension | Net weight | 41KG | |||
| Size | 580mm*475mm*340mm(W*D*H) | ||||
