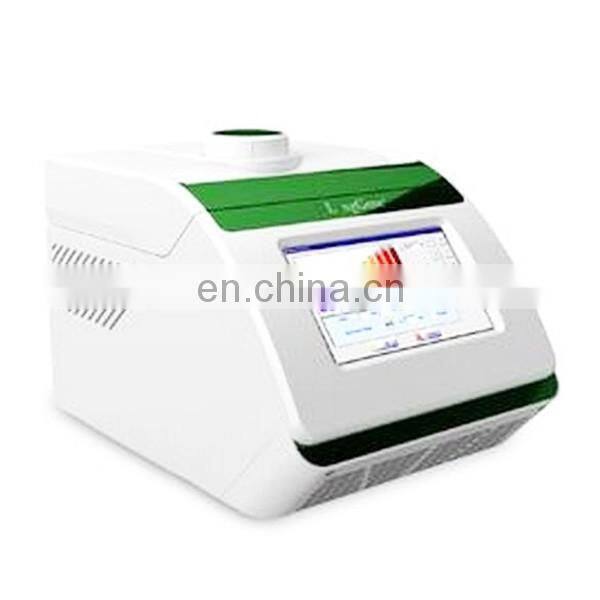

A300 PCR Thermal Cycler Pcr Machine

Optional Module

Standard Module

Gradient Module

Optional Module

96 Module:96wells×0.2ml
9677Module:96wells×0.2ml+77wells×0.5ml
384 Module:384wells
Multi-purpose: 9677 Module+In-situ Adapter

96 Module:96wells×0.2ml
9677Module:96wells×0.2ml+77wells×0.5ml
384 Module:384wells
Multi-purpose: 9677 Module + In-situ Adapter

Display

7" Color Touch Screen, graphical display of protocols and running status

Communications

2 USB2.0 and LAN

Temperature

Block Temperature Range

0℃~100℃

Max. Heating/Cooling Rate

6℃/s

Temperature Uniformity

≤±0.2℃ (at 95℃)

Temperature Accuracy

≤±0.1℃ (35℃-100℃)

Display Resolution

0.1℃

Mode of Temperature Control

Sim-tube & Block mode

Gradient

Gradient Accuracy

                                  /        ≤±0.1℃ (35℃-100℃)

Column Uniformity

                                  /           ≤±0.2℃ (at 95℃)

Gradient Range

                                  /                    30℃~99.9℃

Temp. Differential Range

                                  /                              1~30℃

Gradient Capability

                                  /                          12 Column

Heat Lid

Height of Heat Lid

Steplessly Adjustable Lid, accommodates all kinds of PCR tubes,strips and plates

Open Method

Innovative "TOP-OPEN" technology realizes open and lift in one step

Heat Lid Temperature Range

30℃~112℃

Auto Shut-Off

Yes

Software

Max. No. of programs

Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive

Max. Step

30 Steps

Max. Cycle

100 typical cycles, max. 60,000 nesting cycles

Time&Temp. Increment/Decrement

Yes , available for Long PCR & Touchdown PCR

Auto Pause / Auto Restart

Yes

Multi-user log in

With password-based authentication prevents from view, copy and alteration of protocols

Tm calculator

Automatically calculate the melting and annealing temperature with two primer sequences

Hold at 4℃

Yes, an Infinite incubation time at low temperature for overnight working

Program wizard

Yes, create PCR protocols with only a few clicks

Running Report

Yes, provide objective and precise information for the whole experiment

PC Connection

PC remote control to manage more than 120 units of A300 across the network
