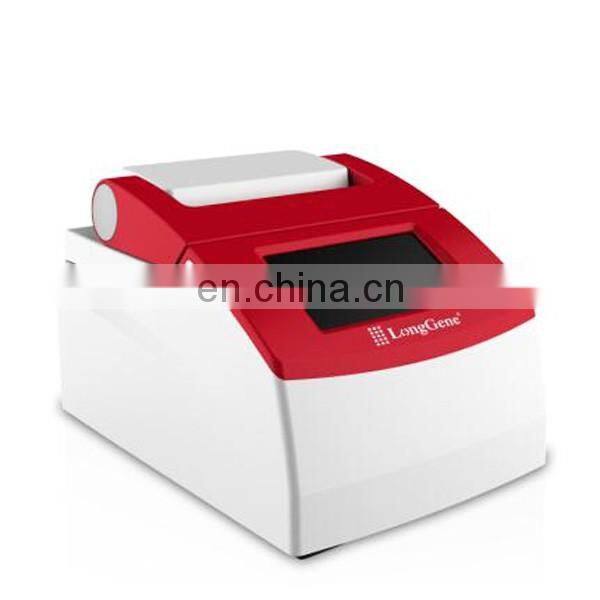

A600 PCR Thermal Cycler Pcr Machine

Max. No. of programs

Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive

Max. Step

30 Steps, multiple nesting cycle available

Max. Cycle

100 Typical cycles, max. 60,000 nesting cycles

Time Increment/Decrement

1-120 sec, available for Long PCR & Touchdown PCR

Temperature Increment/Decrement

 0.1-10.0℃, available for touchdown PCR

Auto Pause / Auto Restart

Yes

Multi-user log in

With password-based authentication prevents from view, copy and alteration of protocols

Tm calculator

Automatically calculate the melting and annealing temperature with two primer sequences

Hold at 4℃

Yes, an Infinite incubation time at low temperature for overnight working

Program wizard

Yes, create PCR protocols with only a few clicks

Running Report

Yes, Provide precise information for the whole experiment

PC Connection

Yes,PC remote control to manage multl units across the newwork

Other Features

Power

Universal AC input Switching Power Supply: 85V ~ 265V, 50-60Hz  Max. 600W

Dimension(L×W×H)

362×256×255mm

Net Weight

7.3kgs

Gradient Module

Block

6*16wells*0.2 individual module,
six different annealing temperatures could be set for each zone

Tube Type

0.2ml PCR tubes, 8/12 Strips, 96 wells PCR plate

Peltier Technology

New Generation Peltier Technology

 Display

7” Color Touch Screen, graphically display the realtime protocols and running status

Language

Full English

Communications Ports

2 USB and 1 LAN

Venting System

Front air in and back air out,two cyclers can be placed side by side

Temperature

Block Temperature Range

4℃~100℃

Max. Heating Rate

5.5℃/s

Max. Cooling Rate

4.5℃/s

Temperature Uniformity

≤±0.15℃

Temperature Accuracy

≤±0.10℃

Display Resolution

0.10℃

Ramping Rate Adjustable

Yes

Mode of Temperature Control

Sim-tube & Block mode

Gradient

Gradient Accuracy

≤±0.15℃

Zone Uniformity

≤±0.20℃

Gradient Range

4℃~100℃

Temperature Differential Range

 less than 25℃ between two adjacent zones

Gradient Capability

6-zone temperature can be set independently. better than traditional gradient function

Heat Lid

Height of Heat Lid

Steplessly Adjustable Lid, accommodates all kinds of PCR tubes,strips and plates

Lid Feature

Innovative "TOP-OPEN" technology, protection from over- pressure

Heat Lid Temperature Range

30℃~112℃

Auto Shut-Off

Yes
