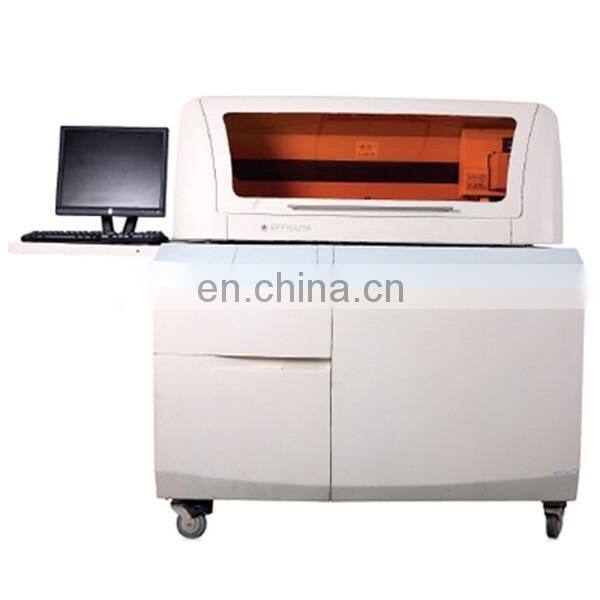

Efficuta 2710 Automatic sample processor

Efficuta 2710 Automatic sample processor

Introduction

 Automatic sample pretreatment system Efficuta 2710 is a kind of laboratory instrument that integrates the functions of automatic pipetting, liquid level detection, constant temperature shaking and microplate washing. Based on scientific and humanized idea, it is not only capable of avoiding pipetting mistakes, but also is equipped with a constant-temperature shaker and a microplate washer. With ability of detecting hundreds of samples in one run efficiently and quickly, it completes five HBV serological markers tests from 96 samples within 2.5 hours. As an automatic sample pretreatment system, Efficuta 2710 can significantly improve the efficiency, stability and reliability of laboratory detection.

Feature

(1) Integrated automatic solution
(2) Disposable pipette tips for free from contamination
(3) High efficiency with 12 sampling channels and double-row washing probes
(4)Independent:temperature-controlling incubation with three variable-frequency shaking modes
(5) Independent software operating module
(6) Wide coverage of various disease testing

Technical Parameter

 (1) Sample capacity: up to 192 samples

(2) Testing items: up to 6 items

(3) Testing time of five HBV markers from 96 samples: 2.5 hours (one marker is diluted)

(4) Sampling volume: 10μl to 200μl

(5) Dilution ratio: up to 30 times

(6) Detection sensitivity: 10-17 mol/hole (Eu3+)

(7) Linear range: 10-12 mol/hole to 10-17 mol/hole

(8) Pipetting repeatability: CV≤ 2.5% (100μl)

(9) Liquid level detection precision: ≤ 20ul

(10) Temperature controlling accuracy: 40℃±2℃

(11) Shaking time: 40±2 minutes
