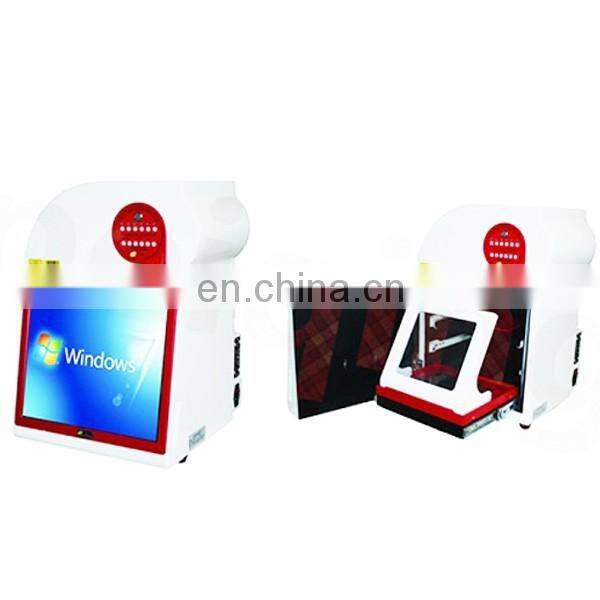

Mini Chemiluminescence Imaging Instrument JS-1080P

Mini chemiluminescence imaging instrument JS-1080P

Introduction

 JS-1080P fluorescence and chemiluminescence gel imaging system is ECL luminescence with plug and play one machine can be pairs and other direct imaging exposure, and get results. Will be exposed to toxic chemicals primarily used when conventional laboratory darkroom exposure tabletting ECL detection, but the high cost of construction darkroom and waste  laboratory area, the exposure step tedious, rinse X-ray film. Chemiluminescent imaging system has been gradually replacing the traditional darkroom tableting exposure testing.

Feature:

1  It can be display by 17-inch LED screen on the instrument without external PC (touch screen optional) imaging and analysis

 2 Use F / 0.95, high-definition large-caliber high permeability focusing lens and high sensitivity digital cooled CCD perfect combination so that the experimenter to get rid of the cumbersome traditional darkroom film exposure mode for quick and efficient access to results of chemiluminescence.

3 Chemiluminescence through integrated design, multicolor fluorescence detection with normal gel, improve the efficiency of the experiment;

4  It can be focused through a computer, automatic control light transmittance and reflectance of the light source;

5  For real-time observation of chemiluminescence image by computer;

 6 You may not need to try to figure out the exposure time by a key shot, a button to complete the results of western blot imaging

7  By one shot without any action on the marker image and the image is automatically superimposed and chemiluminescence generated automatically

8 Chemiluminescence three different image effects

9  You can set the number of continuous sampling, and the initial results to terminate the exposure time, dynamic continuous shooting and easy to obtain the best conditions and effects;

10 Applications

  Chemiluminescence Western Lightning, ECL, ECL plus, CDP Star, SuperSignal,

  CSPD, LumiGlo luminescent substrate, etc.

Technical Parameter:

1 Data Processing System: Core 2 Quad

2  Memory: 2GB (maximum capacity to support 4GB)

3  Hard drive: 64 GB solid state drive

4  Wifi: Support

5  NIC: Onboard Realtek 8111C dual Gigabit LAN, support for diskless

6  Display: by the instrument 17-inch LED capacitance ten-point touch screen, without an external computer imaging and analysis diagram (touch screen optional)

7  Refrigeration CCD: US original brand high-resolution low-light digital cooled CCD chip (chip Sony ICX814)

8  Cooling side: semiconductor cooling

9 Cooling temperature: the ambient temperature is below 65 ℃ (absolute temperature -45 ℃, dynamic real-time display adjustable CCD cooling temperature)

10 Effective Pixels: 3296 X 2472 (815 million pixels)

11  Binning: 1 × 1,2 × 2,3 × 3,4 × 4

12  Lens: F / 0.95, 4/3 inch high-definition large-caliber high permeability focusing lens, the focal length by computer electric adjustment

13  Data Bits: 16 bit (65536 Gray)

14  Pixel size: 5.5 X 5.5um

15 Dynamic range:> 4 orders of magnitude

16 Zoom: standard double-loading drawer Focus platform, compatible with various thickness of the sample taken;

17 One shot: without any action on the marker image and the image is automatically superimposed and chemiluminescence generated automatically in the following three

18 Chemiluminescent images with effects;

19  Shooting a key: try to figure out without exposure time, a key to complete the western blot results Imaging

20  Auxiliary light source: transmission, LED white light board; bilateral reflection: reflection of white light (cold) can be transmitted and reflected white light intensity is adjusted by computer

21  Color filter film: None

22  Control: highly programmed computer-controlled camera obscura

23  Off Timer: 0-60 minutes sleep timer function

24  Shooting Size: 20 × 20cm

25  UV transmission carrier model: None

26  Dimensions: Length Width 35CM × 39CM × high 59CM

27  Software: SensiAnsys professional gel image acquisition and analysis software
