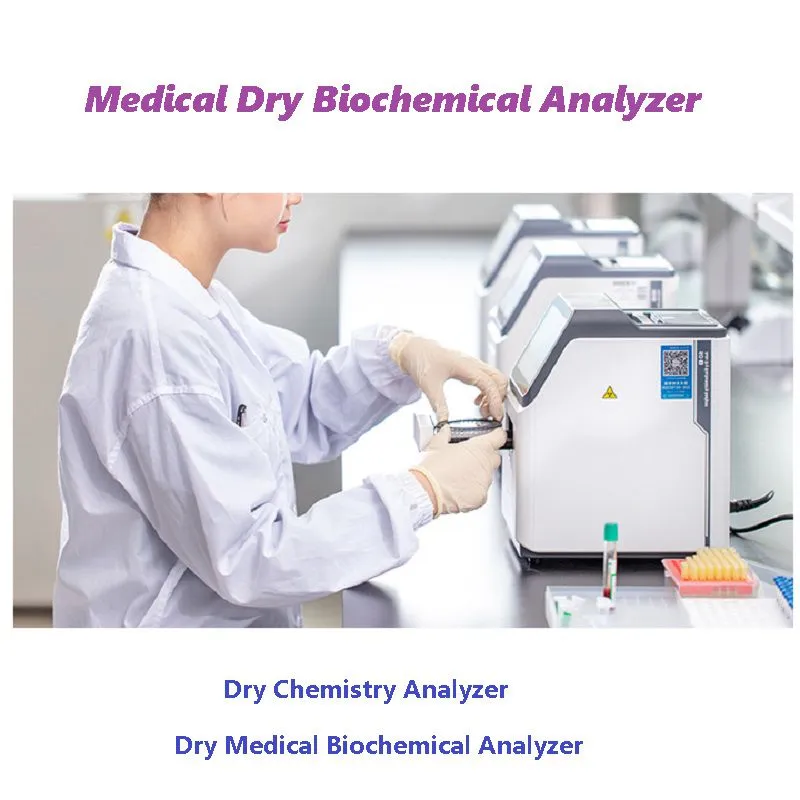

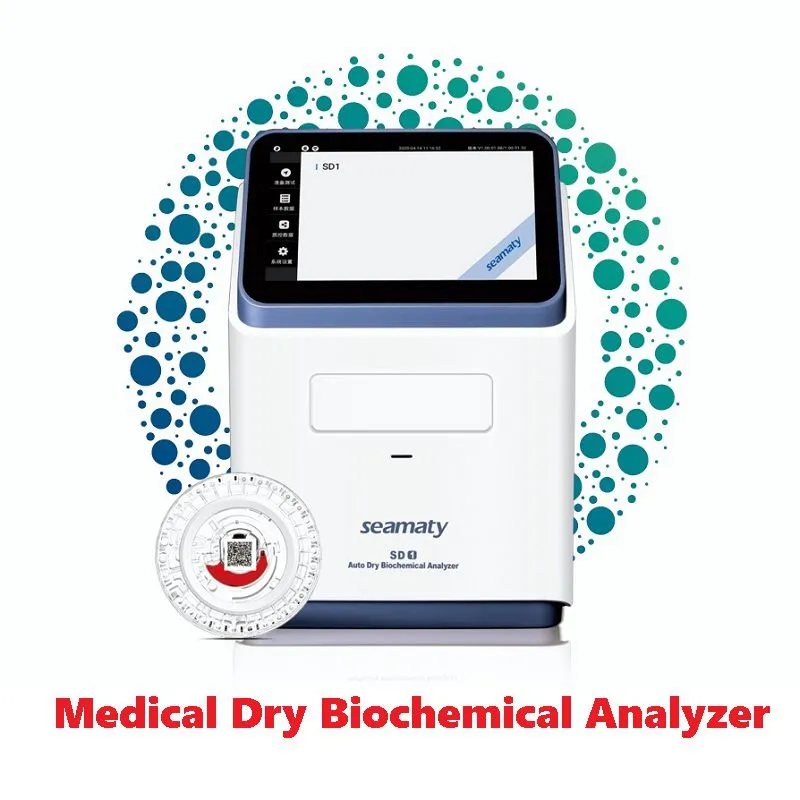

Medical Dry Biochemical Analyzer

Medical Dry Biochemical Analyzer

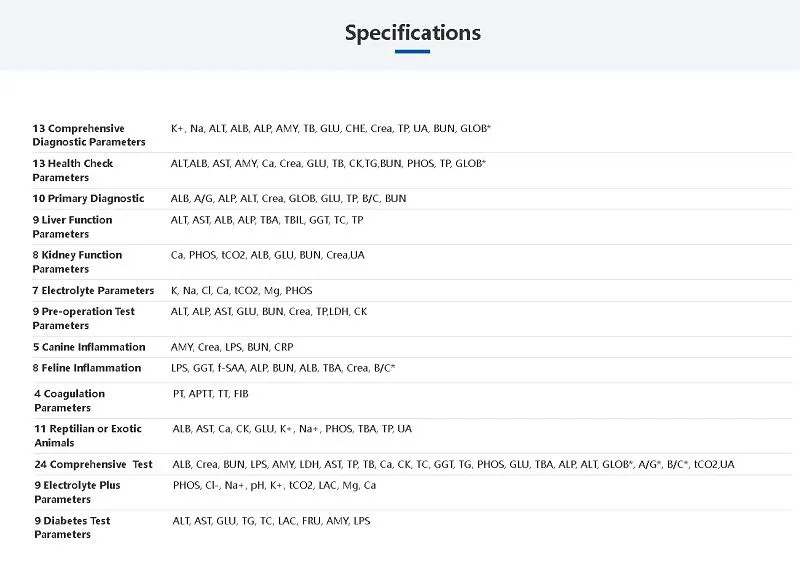

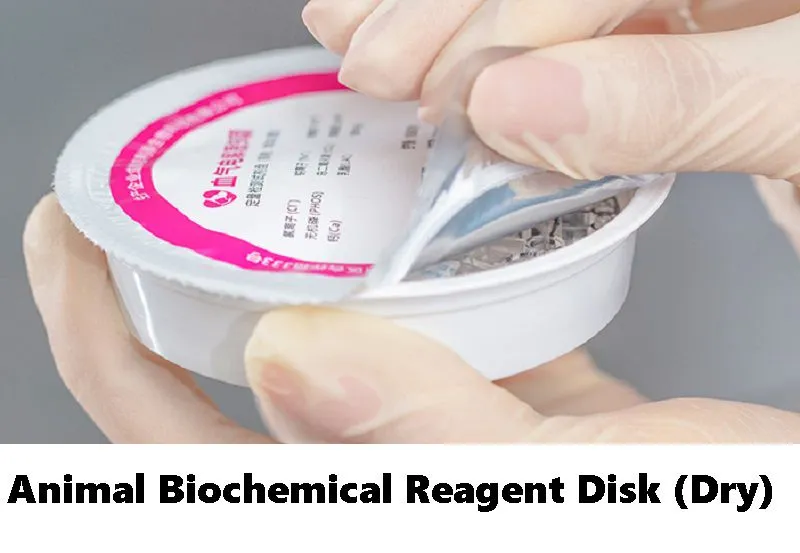

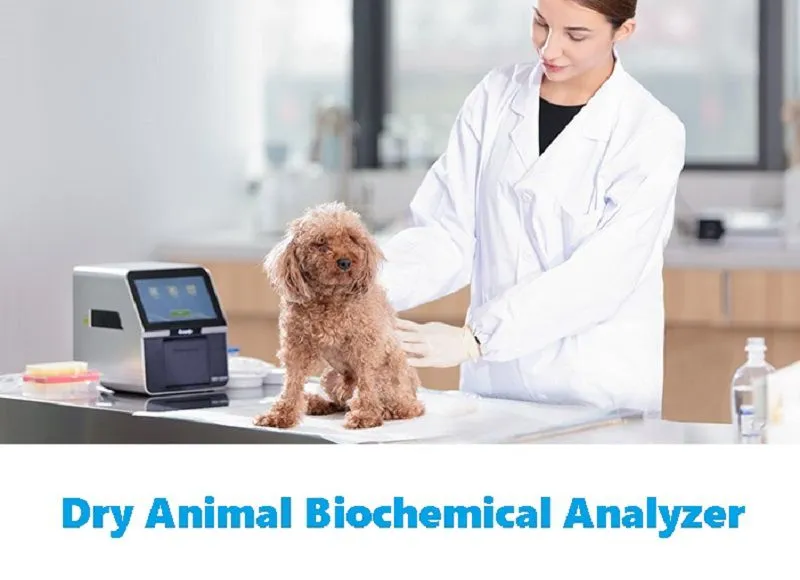

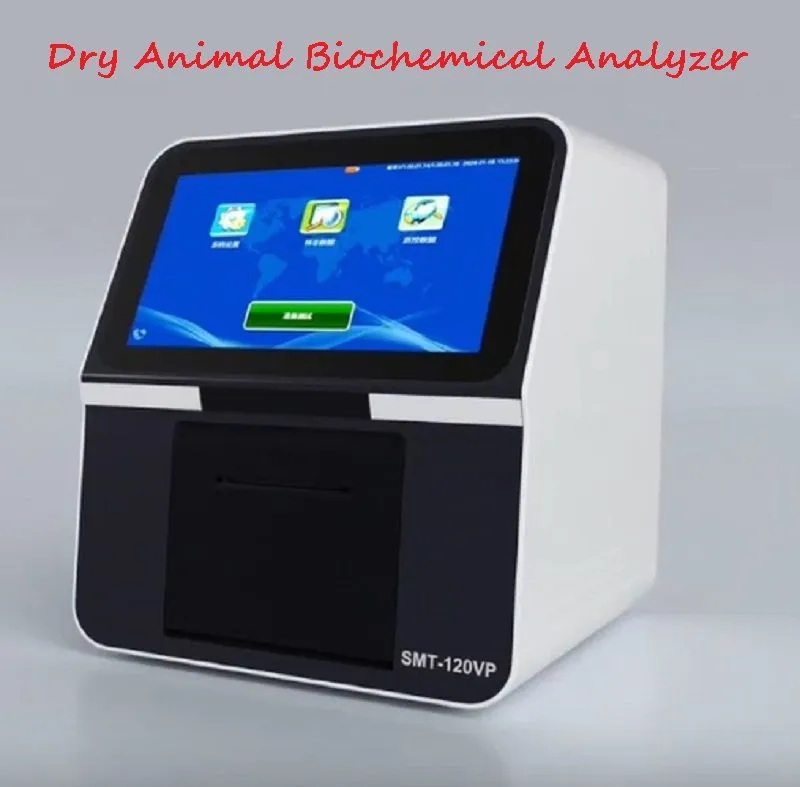

Dry Animal Biochemical Analyzer

Dry Chemistry Analyzer

Dry Medical Biochemical Analyzer

Model：SD1

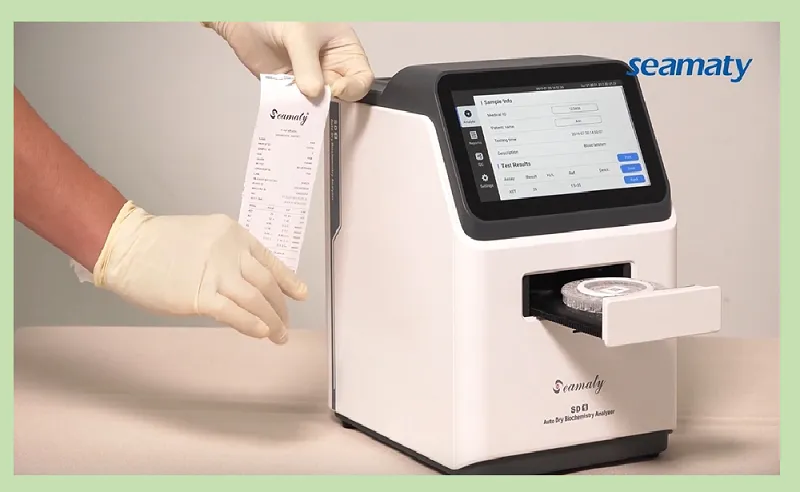

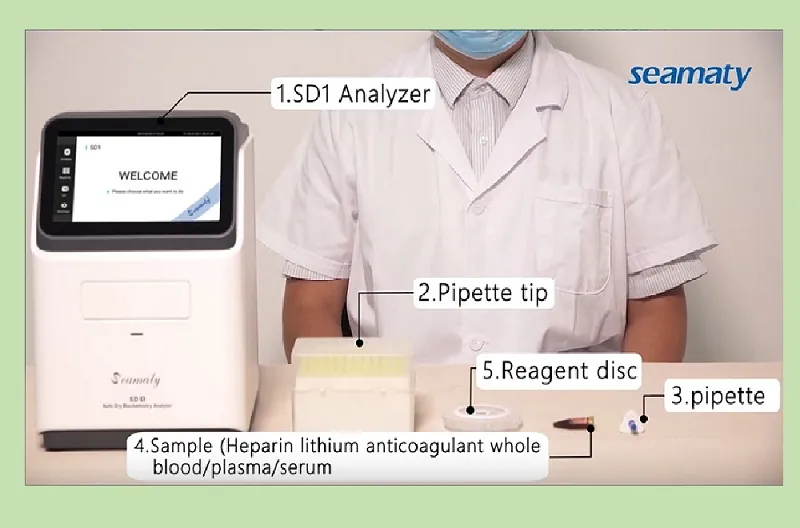

SD1 is a fully automated chemistry analyzer designed for the on-site testing. It can provide faster, easier, more accurate medical diagnosis using 0.1cc of whole blood, serum or plasma. With built-in centrifuge, QR code , real-time quality control, SD1 can provide faster, easier, more accurate medical diagnosis. The test results will be automatically printed after 12 minutes.

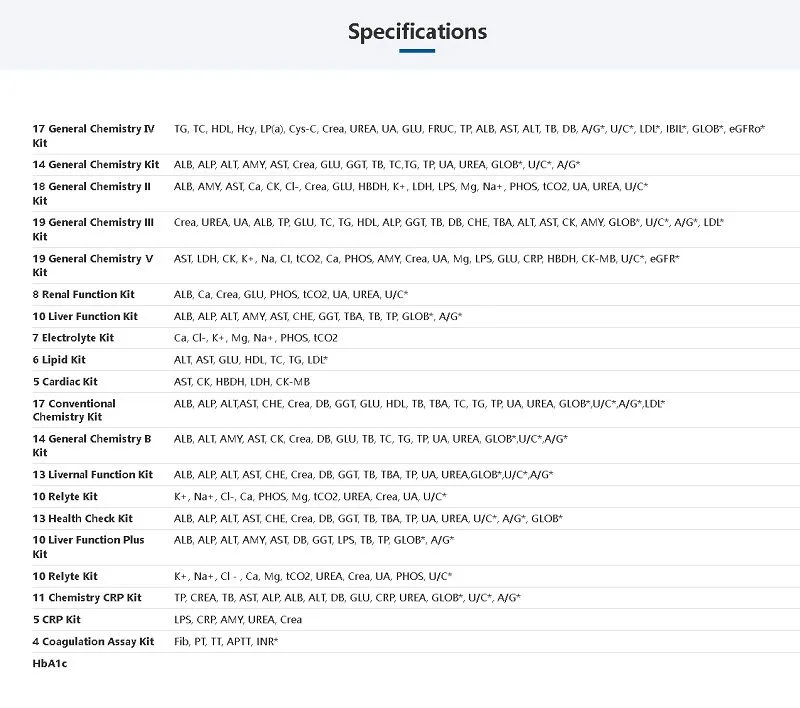

SD1 full-automatic dry biochemical analyzer can detect biochemical items such as electrolytes and routine liver function, kidney function, heart muscle, glucose and lipid, accurately refer to laboratory data, and use Internet plus medical and cloud technology to help operators accurately determine results remotely. Used for medical and health diagnosis, it has the advantages of intelligent portability, simple operation, high degree of automation, small sample size, accurate testing, and maintenance free.

The reagent disk of the fully automatic dry biochemical analyzer includes components with integrated optical and mechanical functions, which participate in every stage of blood analysis in conjunction with the instrument. Innovatively utilizing the built-in QR code, in addition to decoding functions such as reagent disk category and expiration date, it also has the ability to customize regional codes. Contains freeze-dried reagent beads and a water cup (diluent), with independent channel design and precise design to reduce cross contamination. The storage temperature is 2-8 degrees Celsius and the storage period is one year.

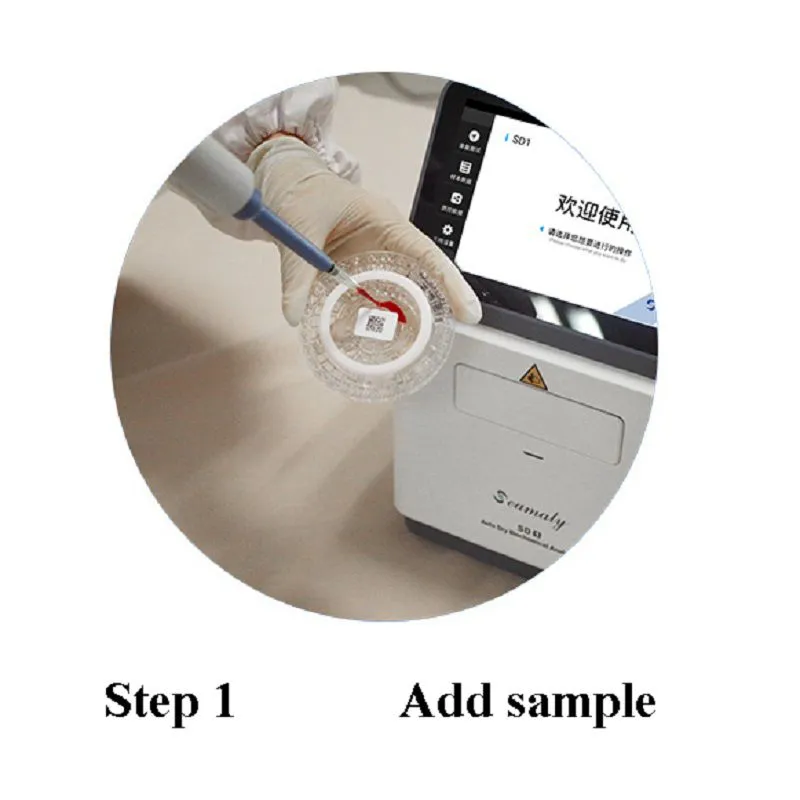

Only 100ul sample needed for a test, comparing to traditional chemistry analyzer, the sample volume is only 1/10.

No pre-processing for sample. It is extremely easy of use which does not require dedicated staff and allows anyone could operate it.

Adopt the photoelectric colorimetric principle with built-in real-time quality control system to ensure the accuracy of analysis.

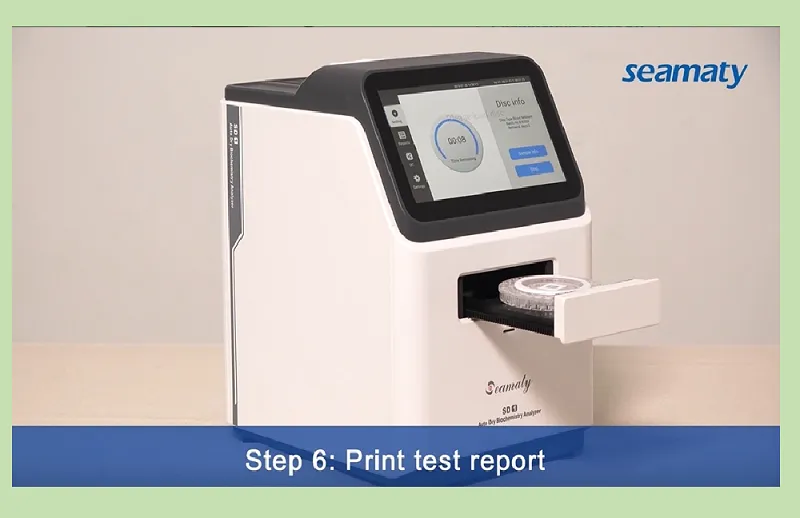

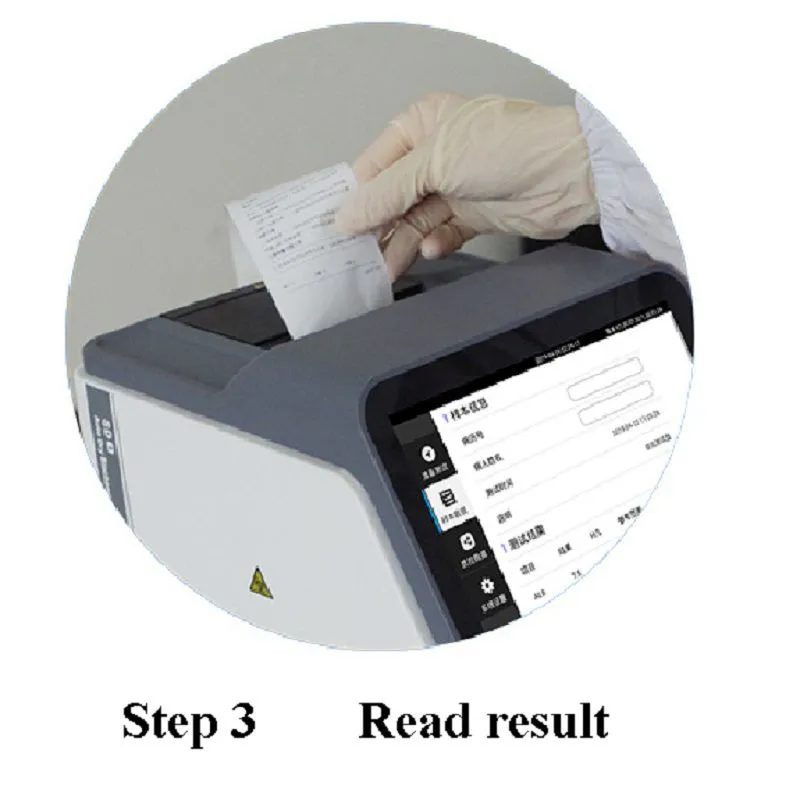

It is real-time test and you could read the test report in 12 minutes, which greatly shortens the waiting time for patients.

It is fully automated with features of online fault diagnosis, upgrading, to help you know the operation of the instrument in real time.

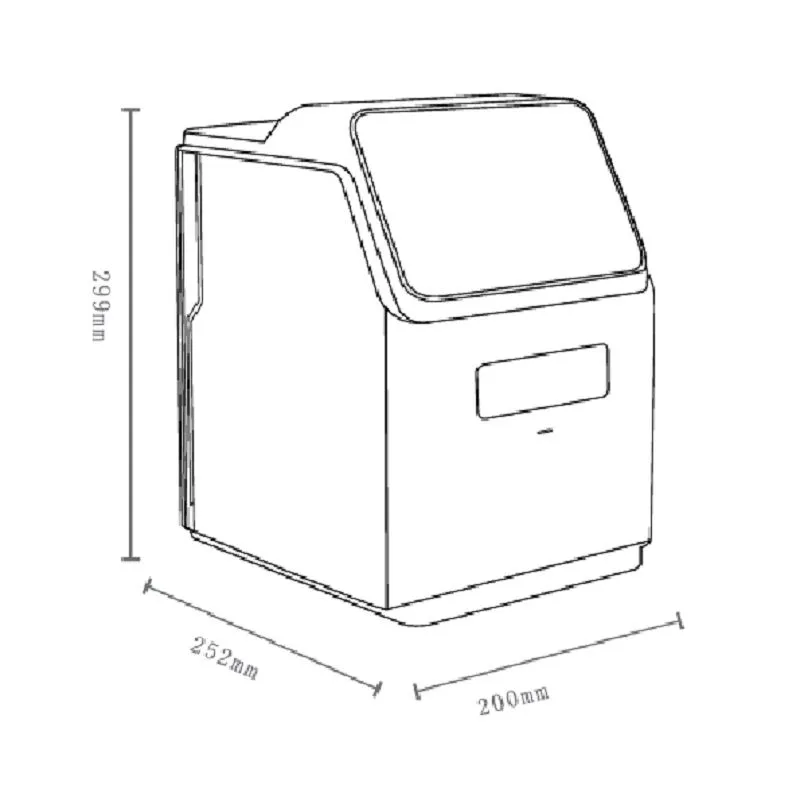

The analyzer is small and lightweight which will save your laboratory space and allow on-site patient testing.

There are no easy-wearing parts such as liquid circuit, pump valve, etc., and the single reagent tray is used as a complete set, which is free of cleaning and maintenance.

Memory capacity up to 500,000 patient records, through RS-232 port, it can be connected to the LIS laboratory information system to facilitate customer data management.

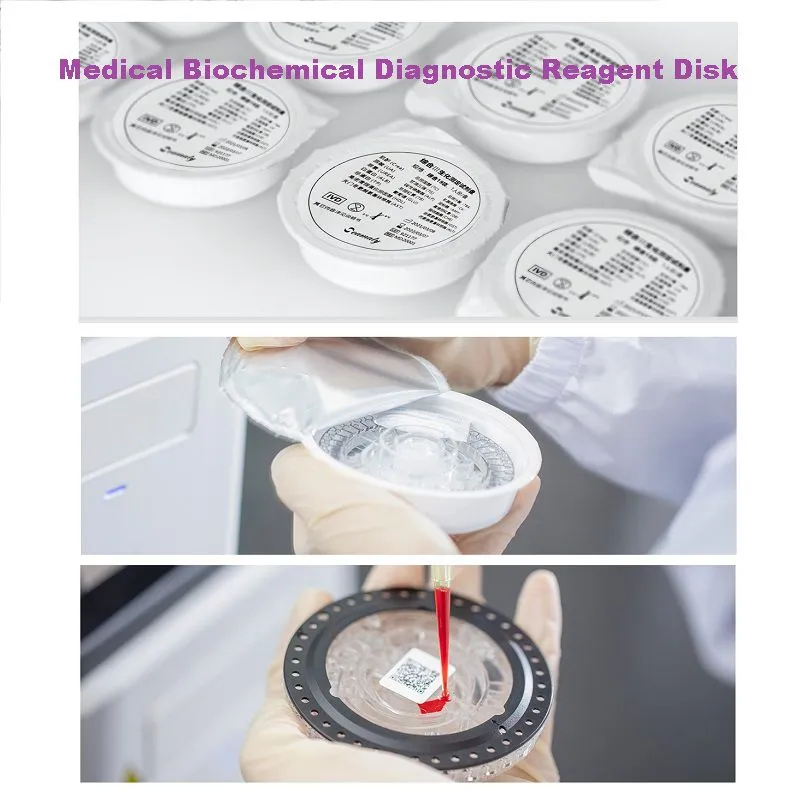

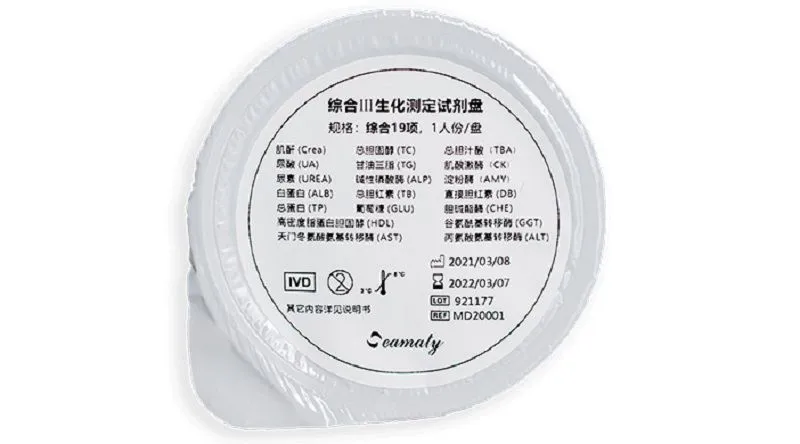

Medical Biochemical Diagnostic Reagent Disk：

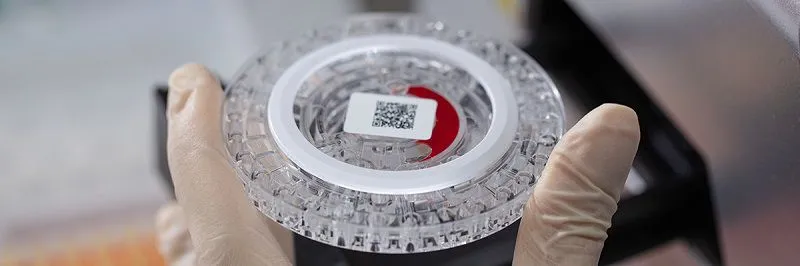

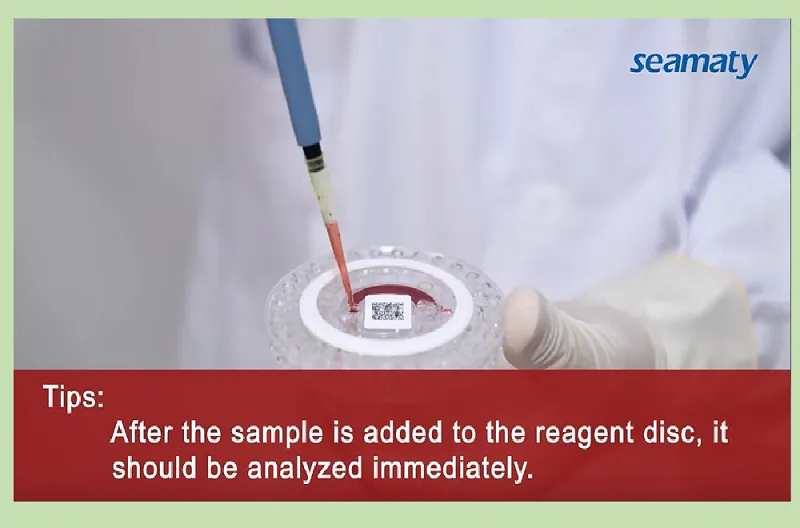

Biochemical Diagnostic Reagent Disk is a highly integrated sample processing system based on microfluidic technology, used in conjunction with Smart Biochemical Analyzer. The reagent disk contains components that integrate optical and mechanical functions, and is used in conjunction with instruments to participate in every stage of blood analysis, achieving a series of operations such as blood sampling, separation, dilution, reaction, and detection in a small reagent disk.

The reagent discs of Seamaty contain integrated components of optical and mechanical functions, and cooperate with the instrument to participate in each stage of blood analysis.Built-in QR code is innovatively used to identify the batch number, expiration date. Support setting of zone code to protect customers' profit.The reagent discs contain lyophilized reagent beads and diluent, individual channel, less cross contamination.The storage temperature is 2-8 ℃ with one year shelf life.

Use microfluidic technology with internal independent channel to avoid cross-contamination during running.

Eliminate the need for the processing of adding diluent which makes the operation easier.

The unique reagent disk retaining ring patent can effectively prevent the splash of liquid during the high-speed rotation of the reagent disk and reduce cross-contamination.

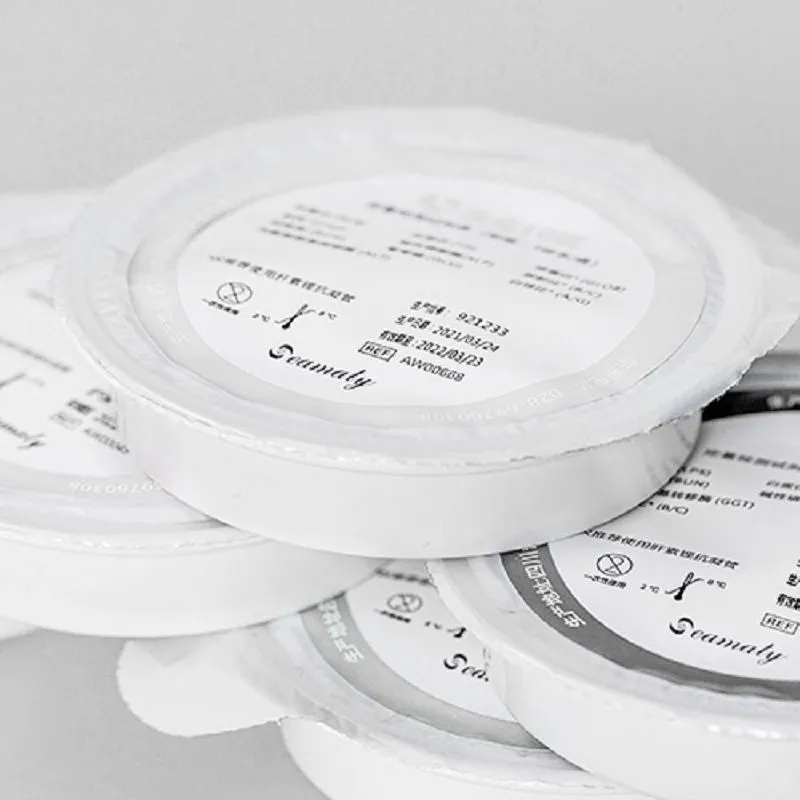

The reagent tray is individually packaged for a single serving and is for one-time use. There will be no secondary pollution during use, and it is clean and hygienic.

The innovative of built-in QR code technology not only has the decoding function of distinguishing the type of reagent plate and identifying the effective date of the reagent plate, but also has the function of regional custom code.

The special lyophilization process is adopted to completely sublime the internal moisture of the reagent without destroying the active ingredients. The validity period is as long as 1 year under refrigeration at 2~8℃.
